Camshaft Position Actuator Solenoid Valve Replacement

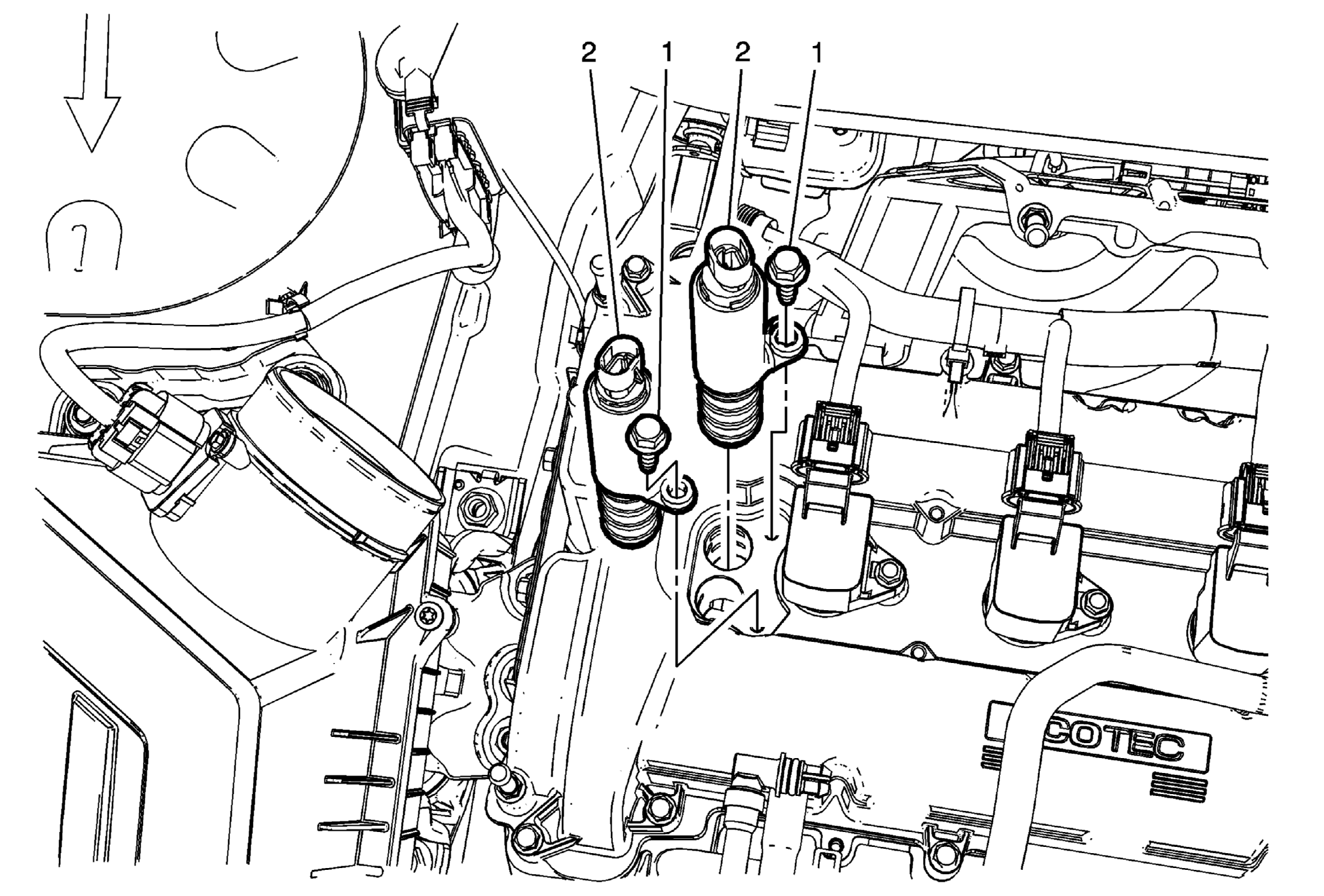

Fig 1: Camshaft Position Actuator Solenoid Valve (LE5 or LE9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement
1	Fastener (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 10 N.m (89 lb in)
2	Camshaft Position Actuator Solenoid Valve Replacement Procedure Disconnect the camshaft position actuator solenoid valve harness connector. Clean the cylinder head mating surfaces before assembly. Lubricate the camshaft position actuator solenoid valve O-ring seals with clean engine oil. TIP: Replace only the Intake or exhaust camshaft position actuator solenoid as necessary.

Callout

Component Name

Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement

Fastener (Qty: 2)

CAUTION:

Tighten
10 N.m (89 lb in)

Camshaft Position Actuator Solenoid Valve Replacement

Procedure

Disconnect the camshaft position actuator solenoid valve harness connector.
Clean the cylinder head mating surfaces before assembly.
Lubricate the camshaft position actuator solenoid valve O-ring seals with clean engine oil.

TIP: Replace only the Intake or exhaust camshaft position actuator solenoid as necessary.
