Rear Compartment Lid Release Switch Replacement
Rear Compartment Lid Release Switch Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear compartment lid outside handle. Refer to Rear Compartment Lid Outside Handle Replacement . |
|

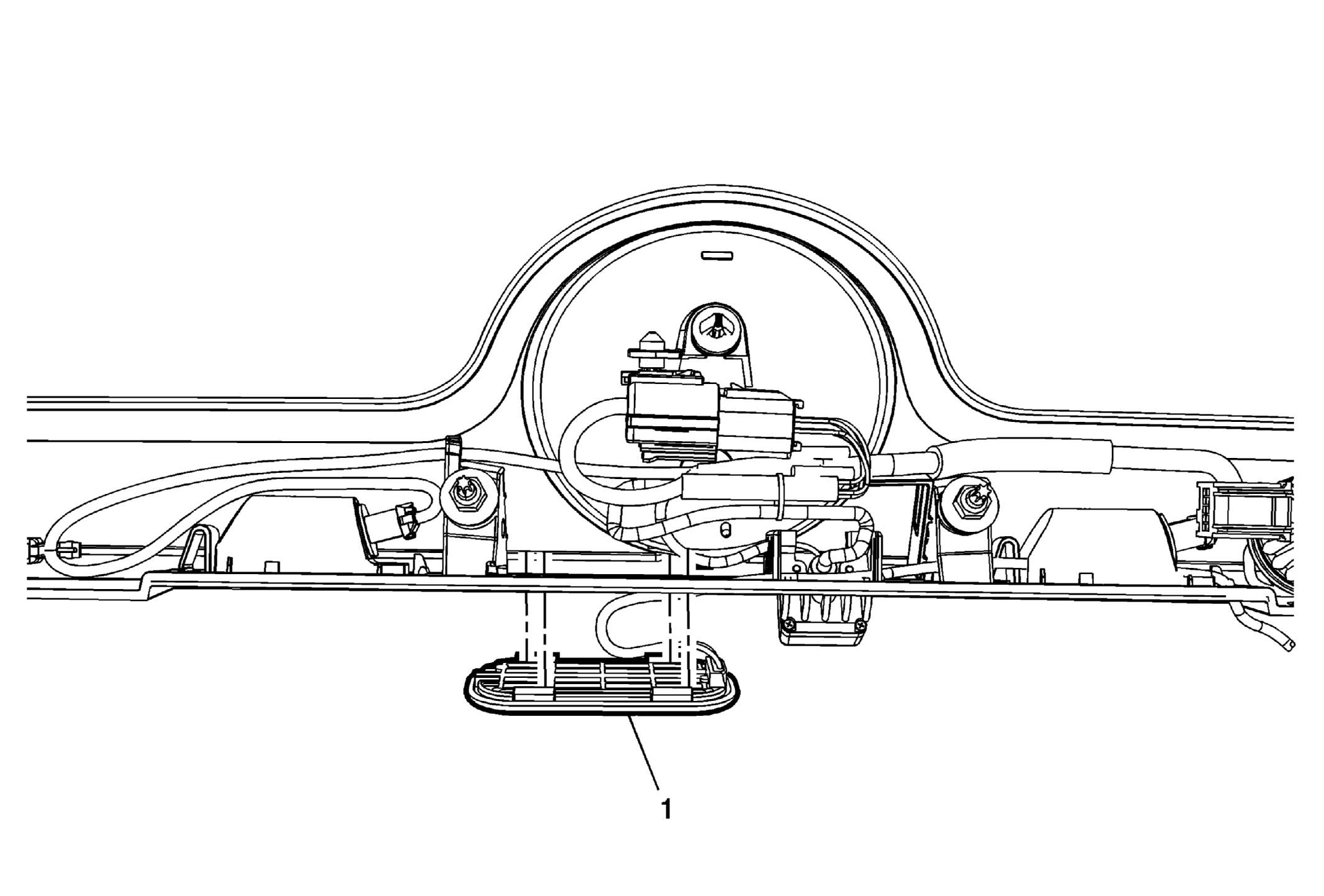

| 1 | Rear Compartment Lid Release Switch Procedure Use a small flat-bladed tool on the 4 retainers, 2 on each side, to release the rear compartment lid release switch. |
