Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia
Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia

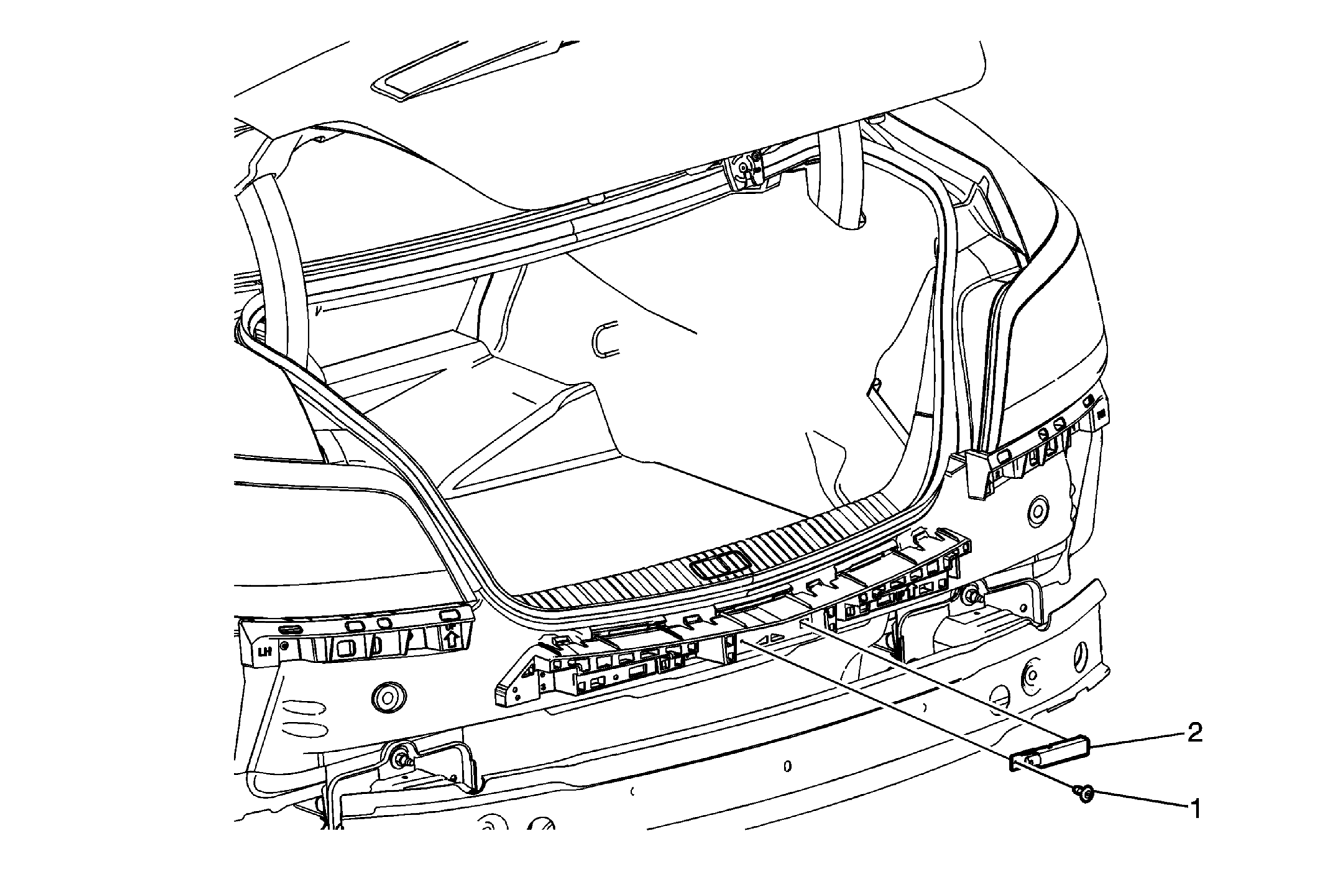

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Ignition Lock Key Transmitter Antenna Fastener |
| 2 | Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connector. |
