Front Wheel Speed Sensor Replacement (With F45)

WARNING: This page is about a different car, the 2010 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

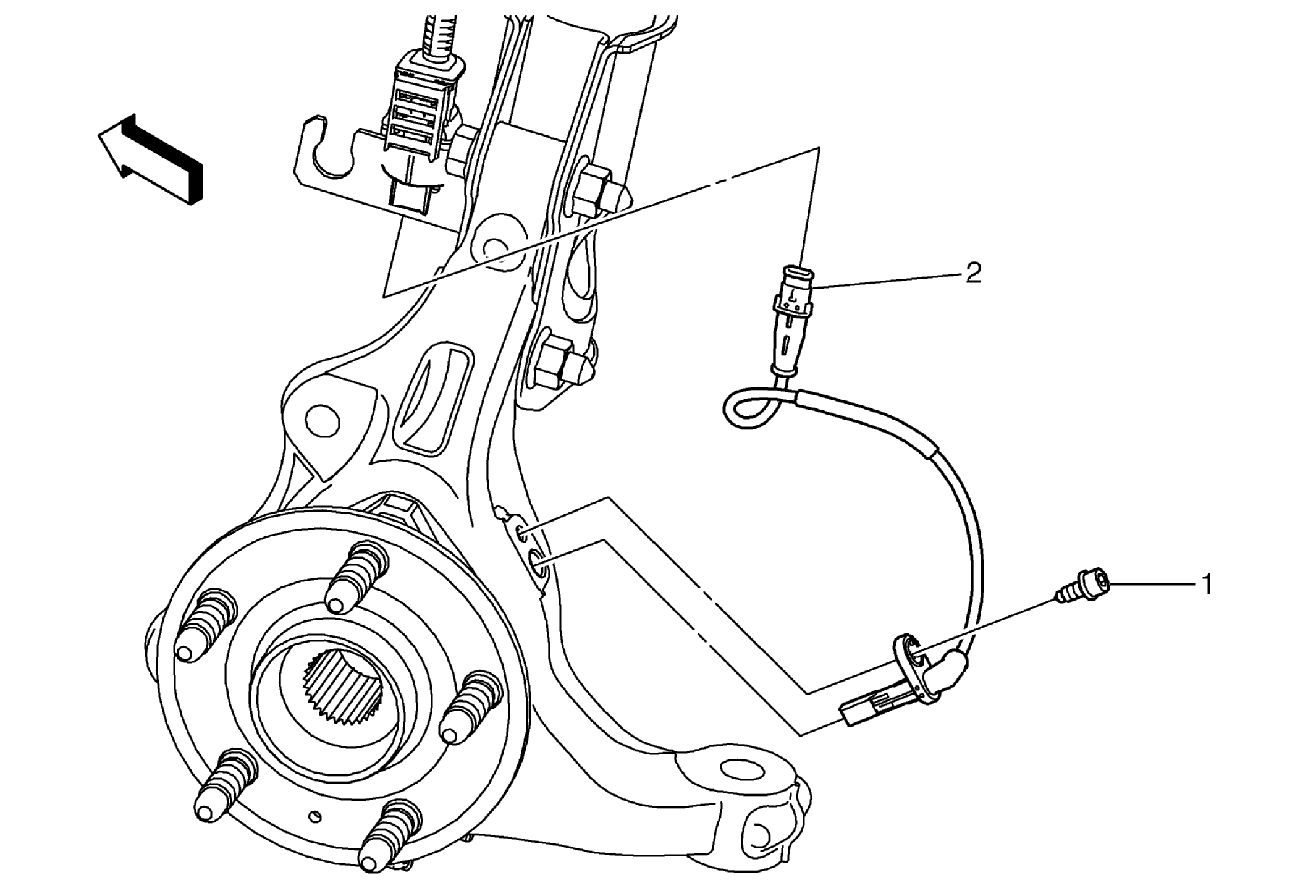

Fig 1: Front Wheel Speed Sensor (With F45)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Dust Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Disconnect the wheel speed sensor electrical connector.
1	Wheel Speed Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten: 9 N.m(80 lb in)
2	Wheel Speed Sensor

Callout

Component Name

WARNING: Refer to Brake Dust Warning .

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Disconnect the wheel speed sensor electrical connector.

Wheel Speed Sensor Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m(80 lb in)

Wheel Speed Sensor
