Buick
>>
2012
>>
LaCrosse Touring
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Data Communication Wiring Schematics
>>
High Speed GMLAN (1 Of 2)
High Speed GMLAN (1 Of 2)

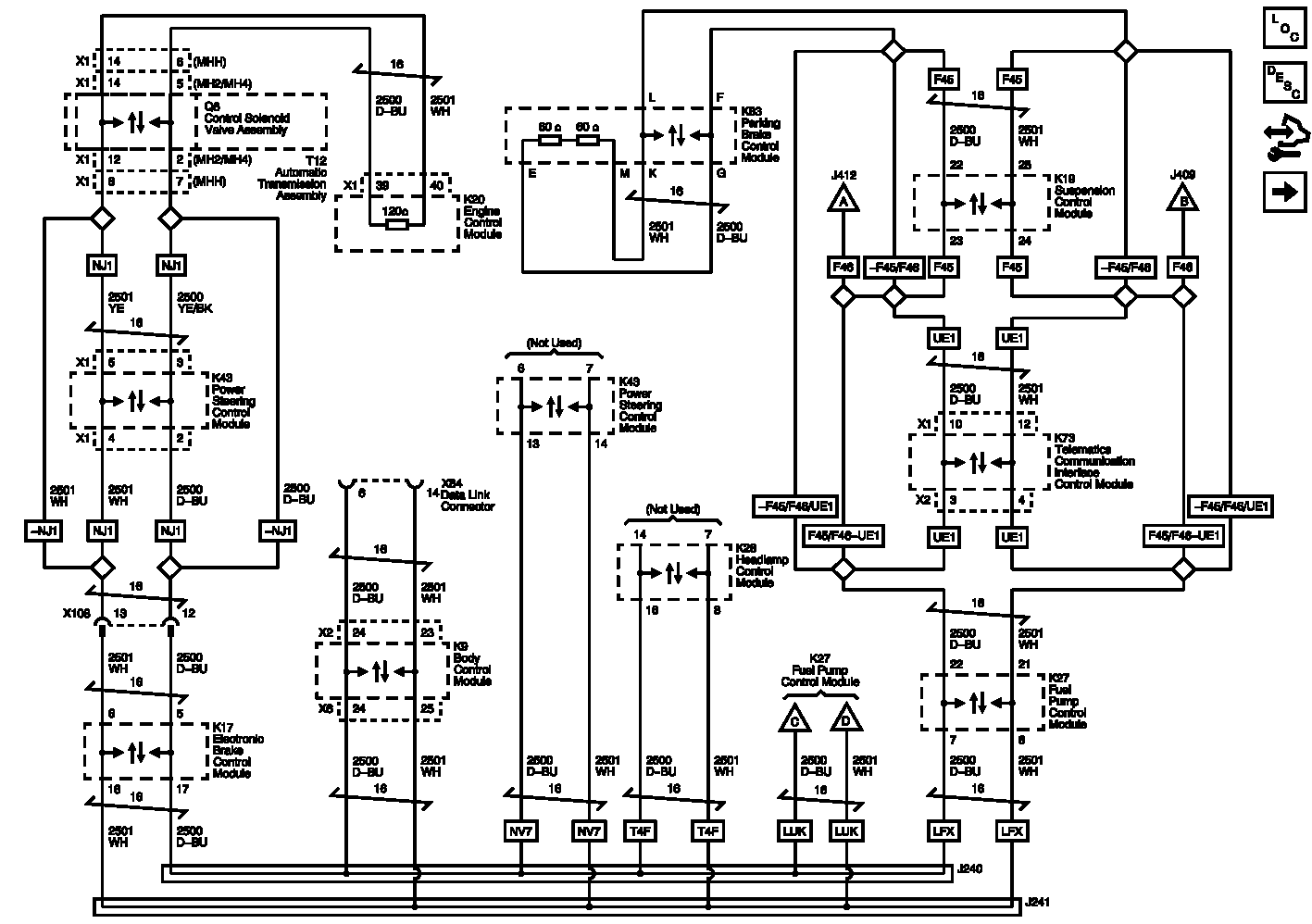

Fig 1: High Speed GMLAN (1 Of 2) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
