Camshaft Position Sensor Replacement - Exhaust
Camshaft Position Sensor Replacement - Exhaust

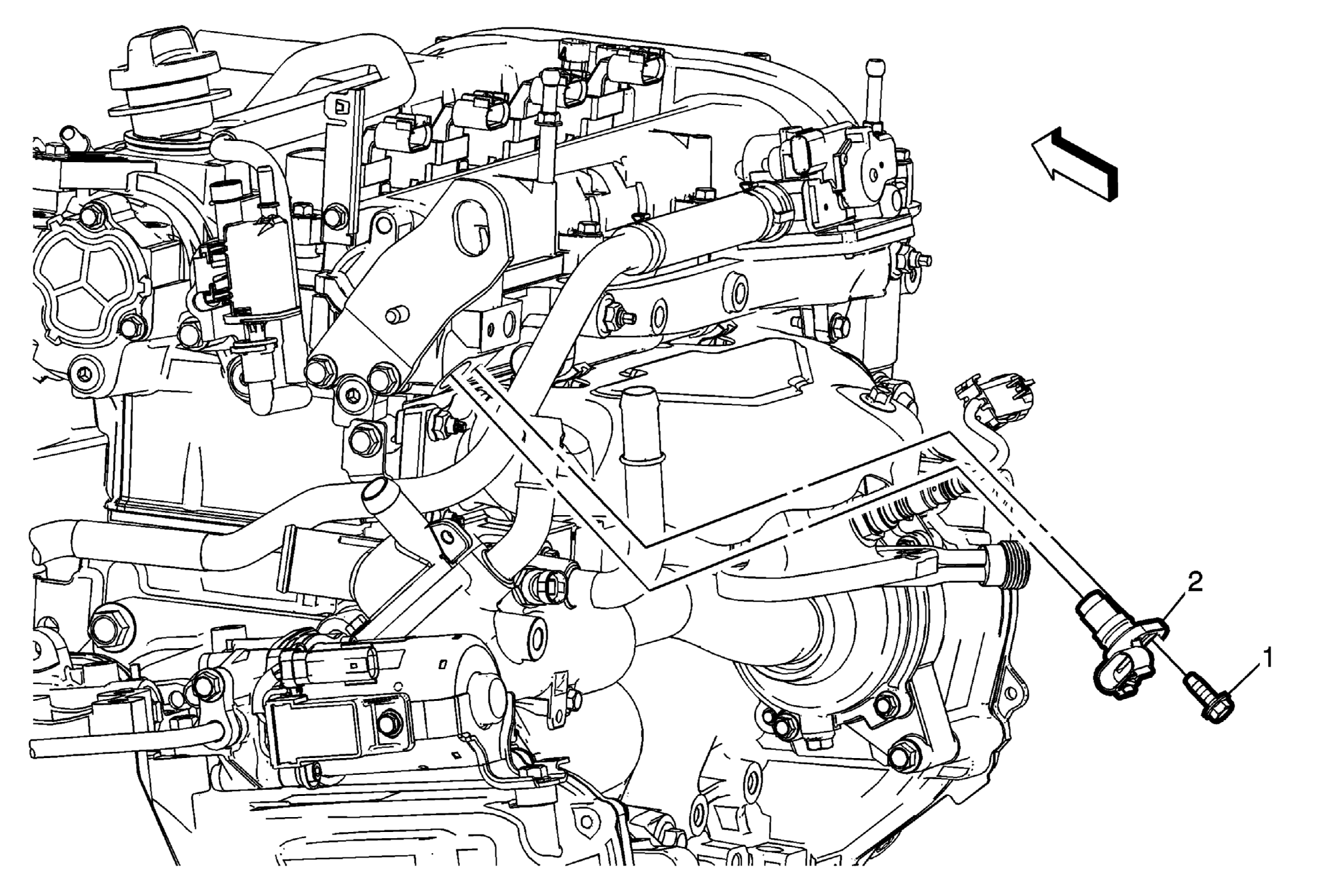

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Camshaft Position Sensor Exhaust Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (189 lb in) |
| 2 | Camshaft Position Sensor Exhaust Procedure Disconnect the electrical connector. |
