Subsystem References (3 of 4) Wiring Schematics

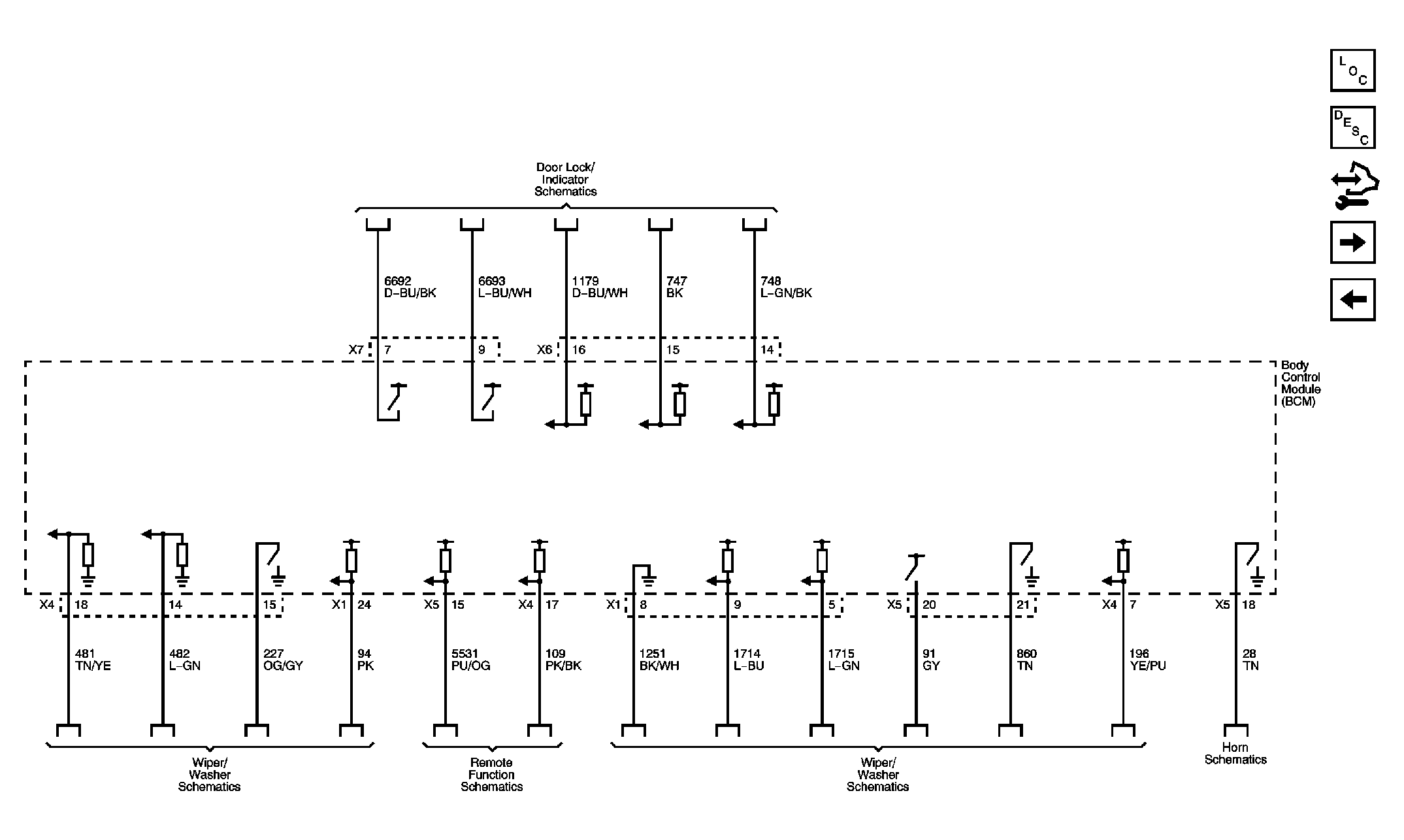

Fig 1: Subsystem References (3 of 4) Wiring Schematic

GM2403555

Courtesy of GENERAL MOTORS COMPANY
