Subsystem References (1 of 4) Wiring Schematics

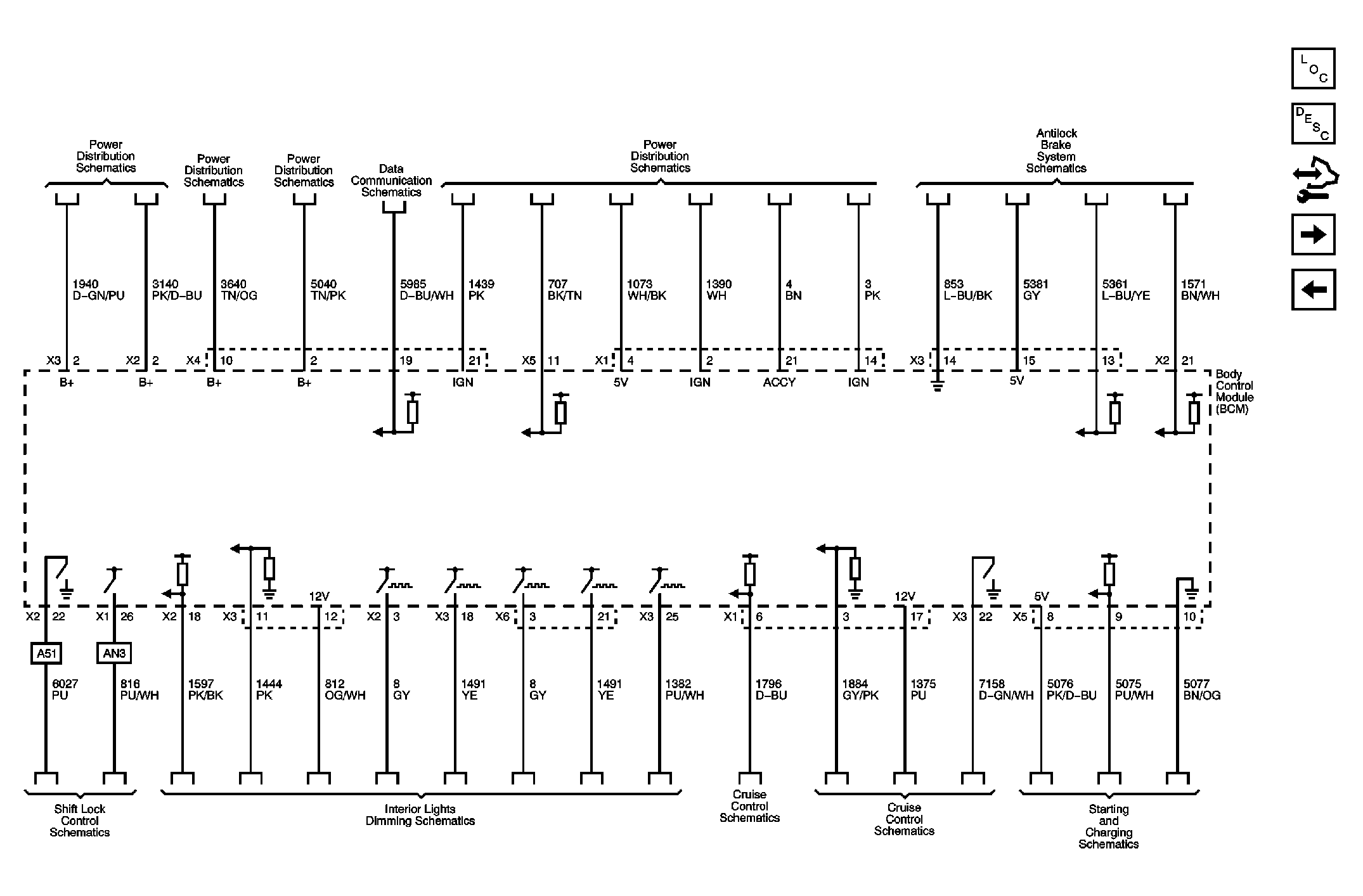

Fig 1: Subsystem References (1 of 4) Wiring Schematic

GM2403550

Courtesy of GENERAL MOTORS COMPANY
