Side Object Detection (UFT) Wiring Schematics

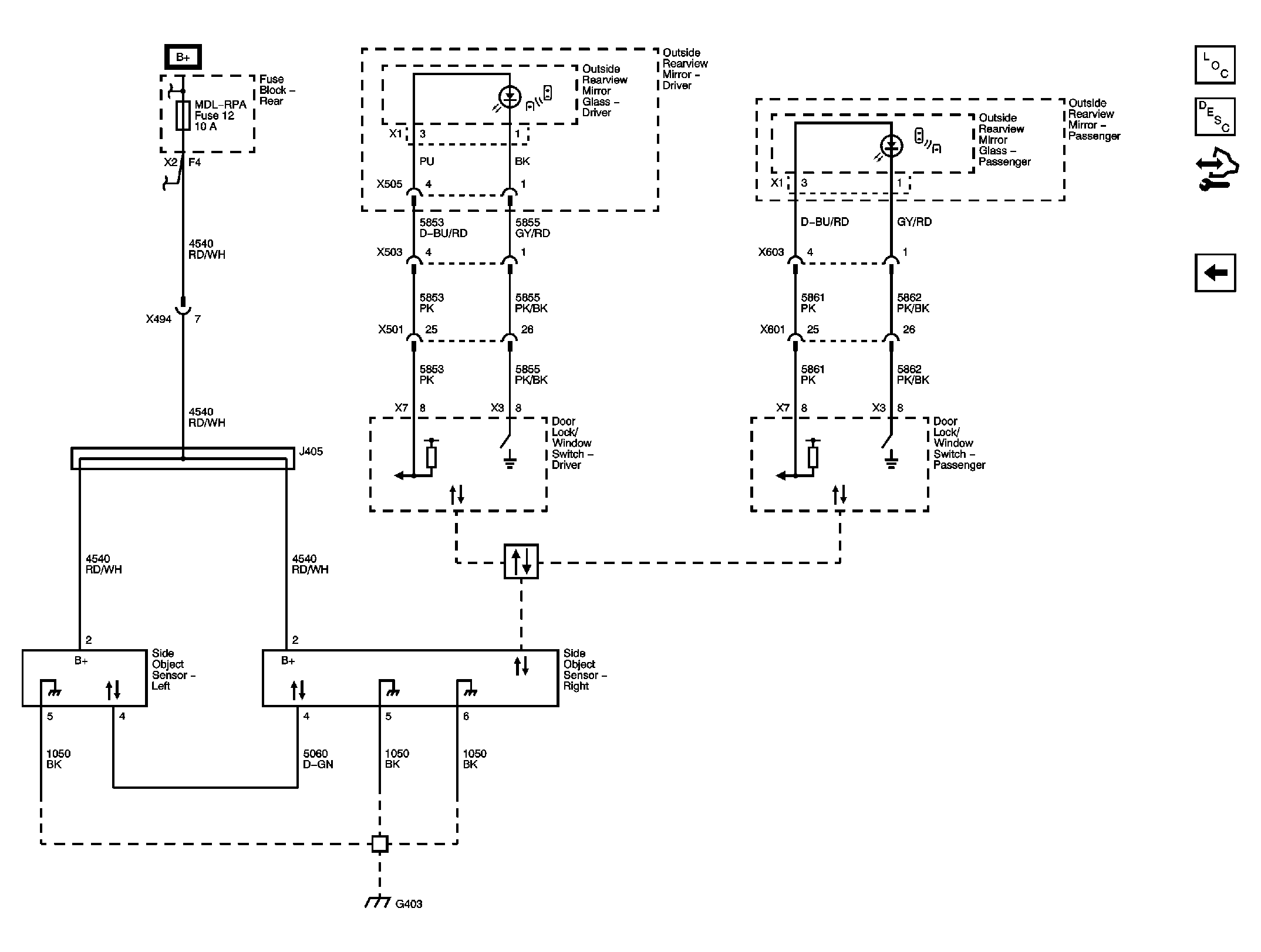

Fig 1: Side Object Detection (UFT) Wiring Schematic

GM2403659

Courtesy of GENERAL MOTORS COMPANY
