Steering Wheel Secondary/Configurable Control Wiring Schematic

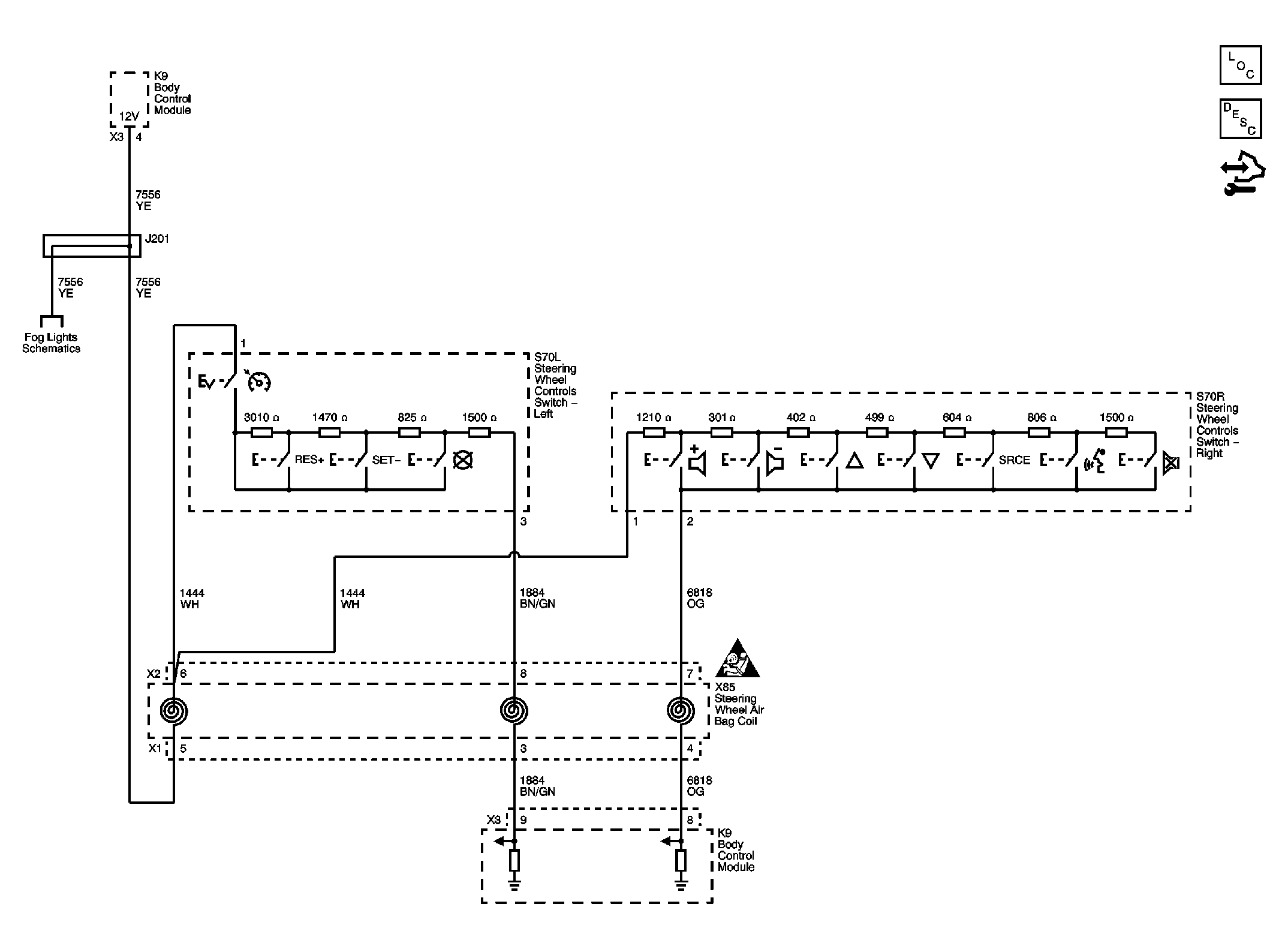

Fig 1: Steering Wheel Secondary/Configurable Control Wiring Schematic

GM2392887

Courtesy of GENERAL MOTORS CORP.
