Antilock Brake System Schematics

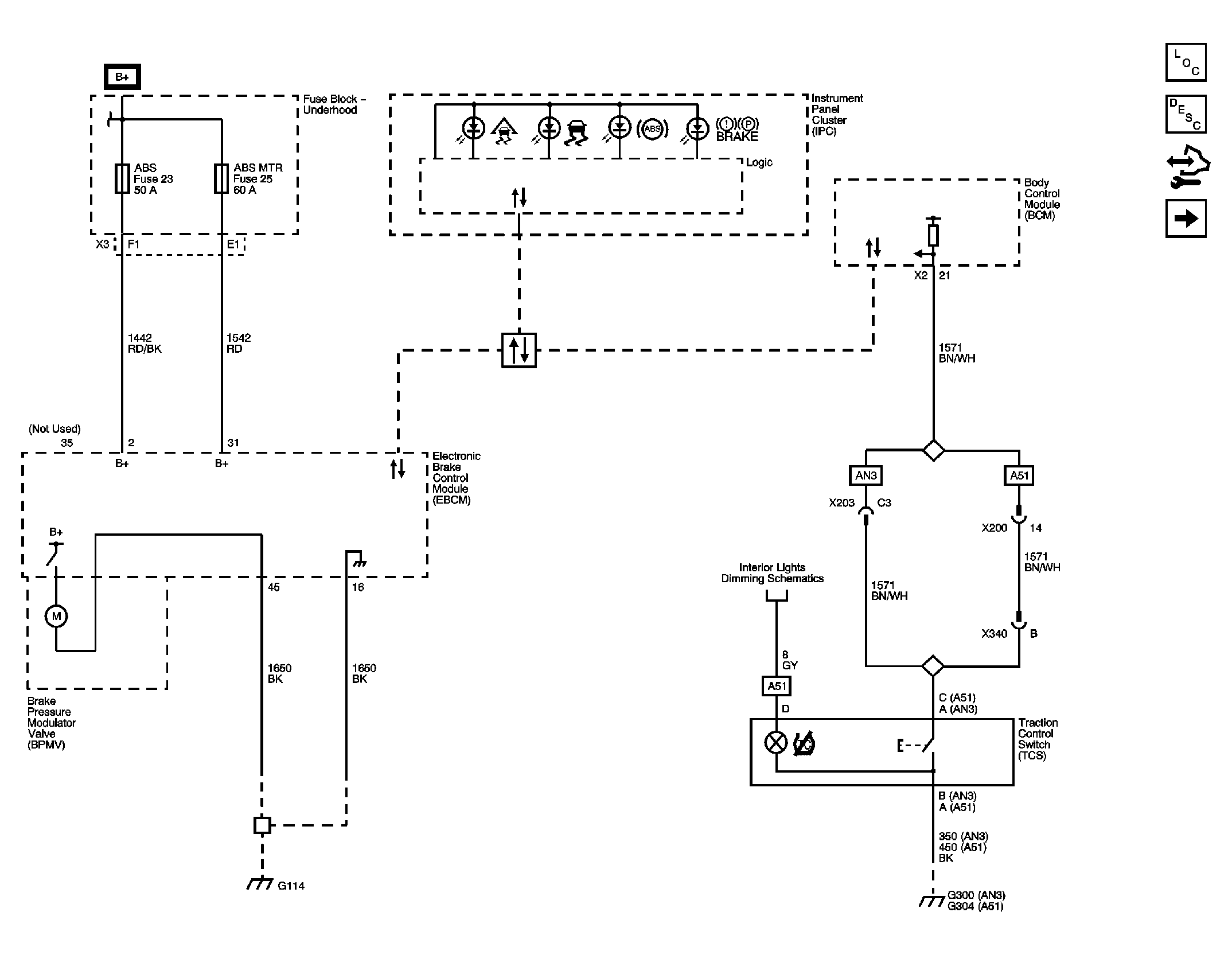

Fig 1: ABS Power and Ground
GM2227841Courtesy of GENERAL MOTORS CORP.

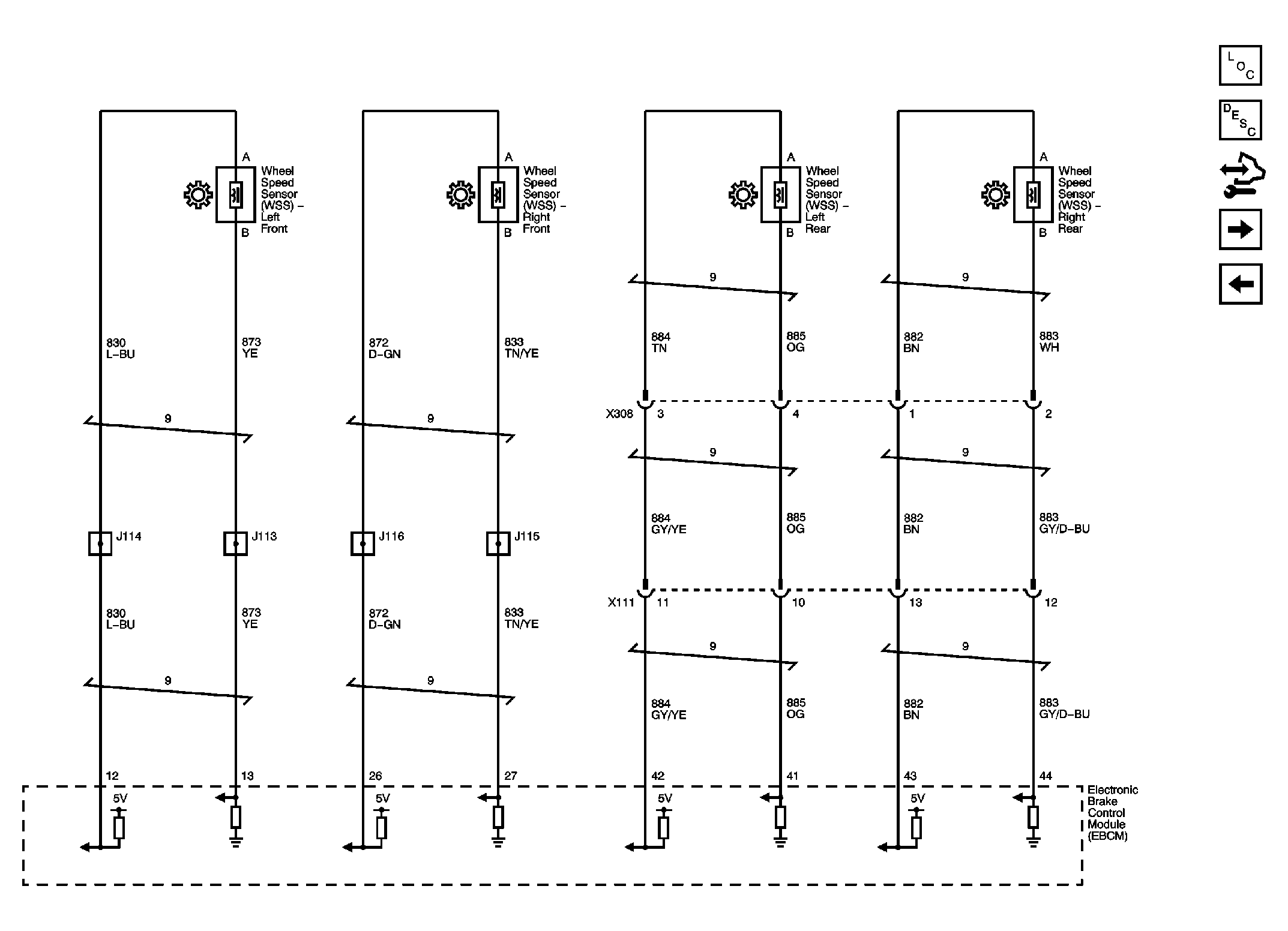

Fig 2: Wheel Speed Sensors
GM2227844Courtesy of GENERAL MOTORS CORP.

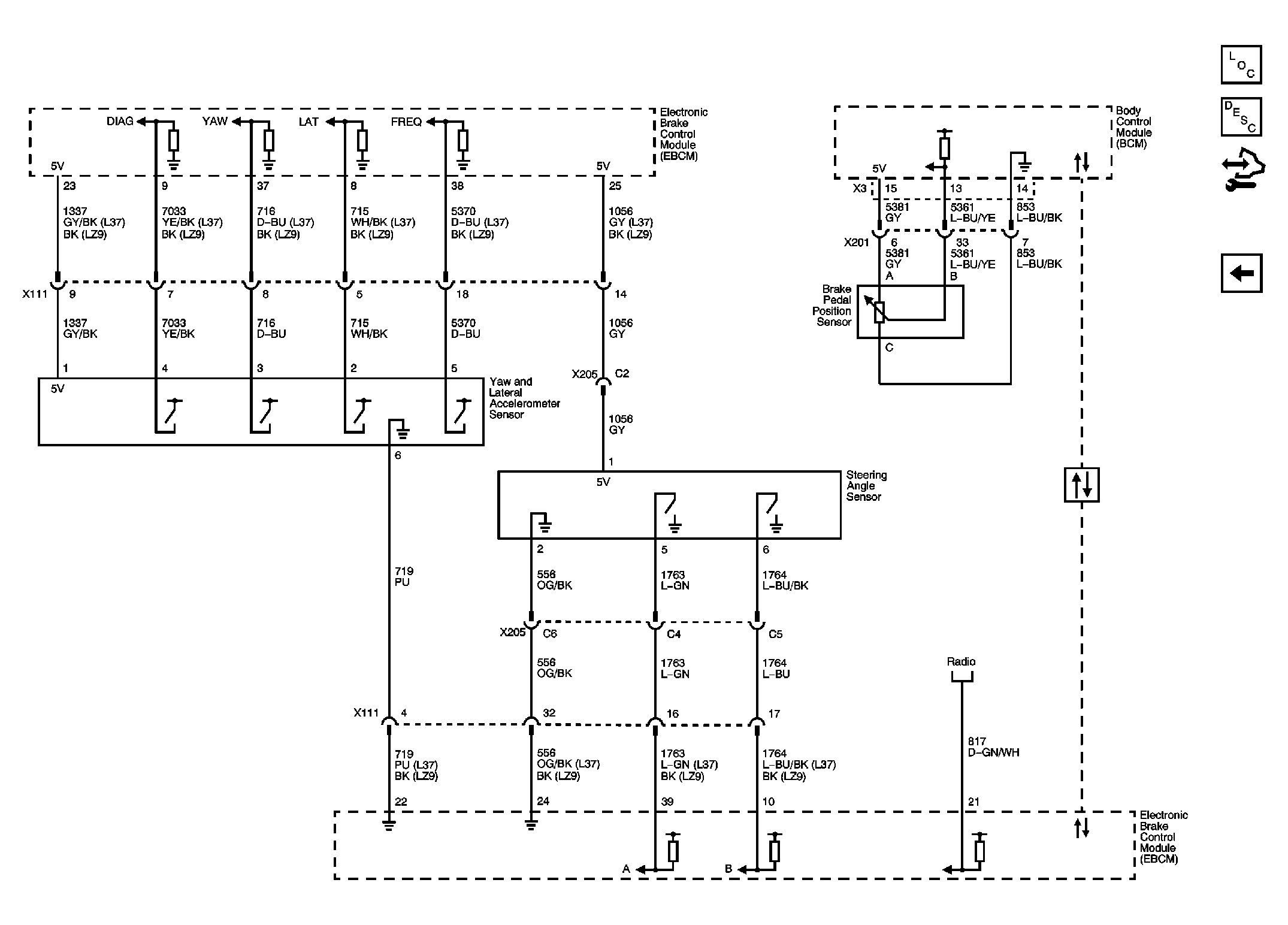

Fig 3: Yaw and Lateral Acceleration, Steering Angle Sensor
GM2227846Courtesy of GENERAL MOTORS CORP.
