Engine Controls Schematics

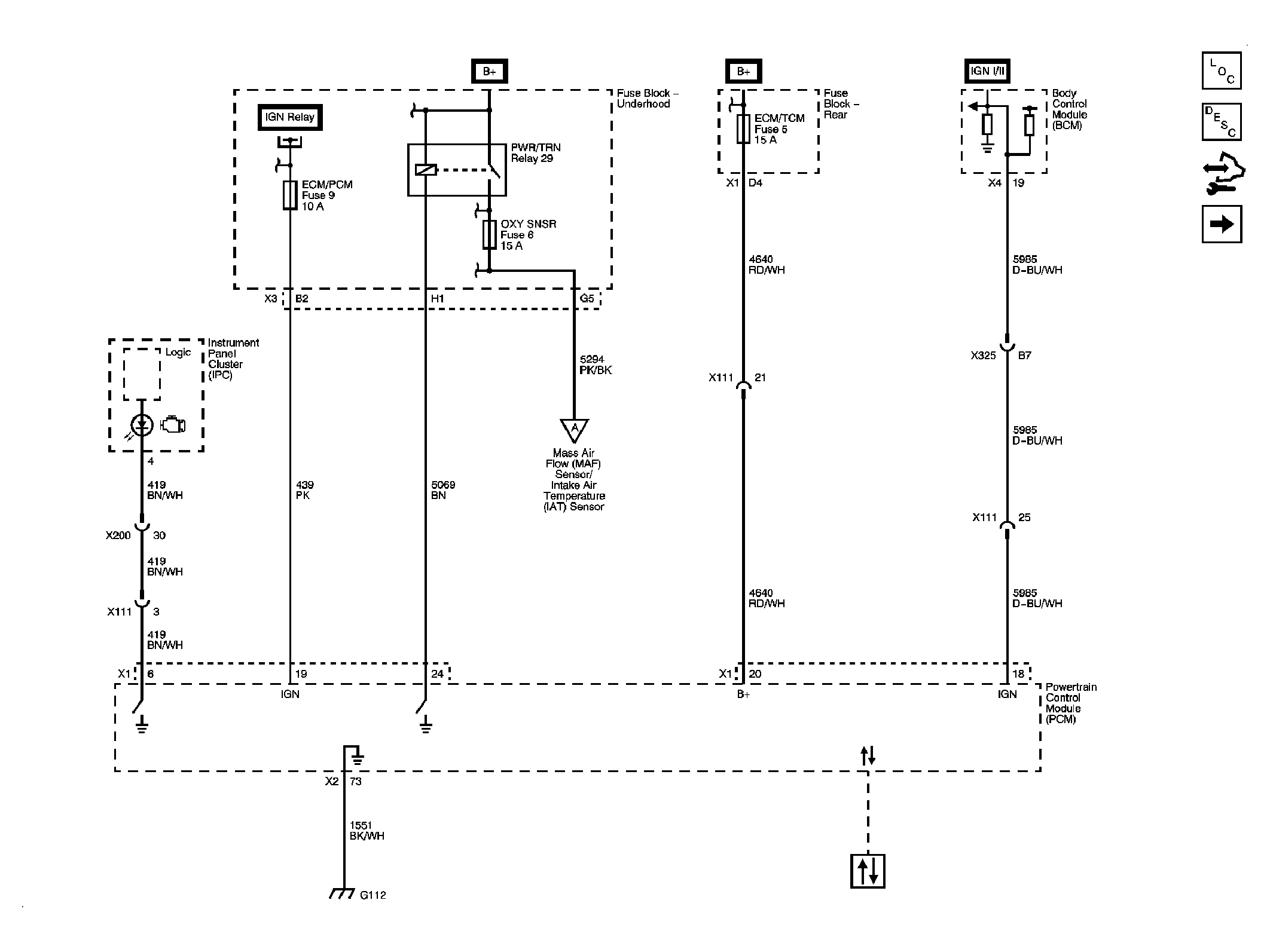

Fig 1: Power, Ground, MIL and DLC

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors - 5-Volt Reference Bussing

Courtesy of GENERAL MOTORS CORP.

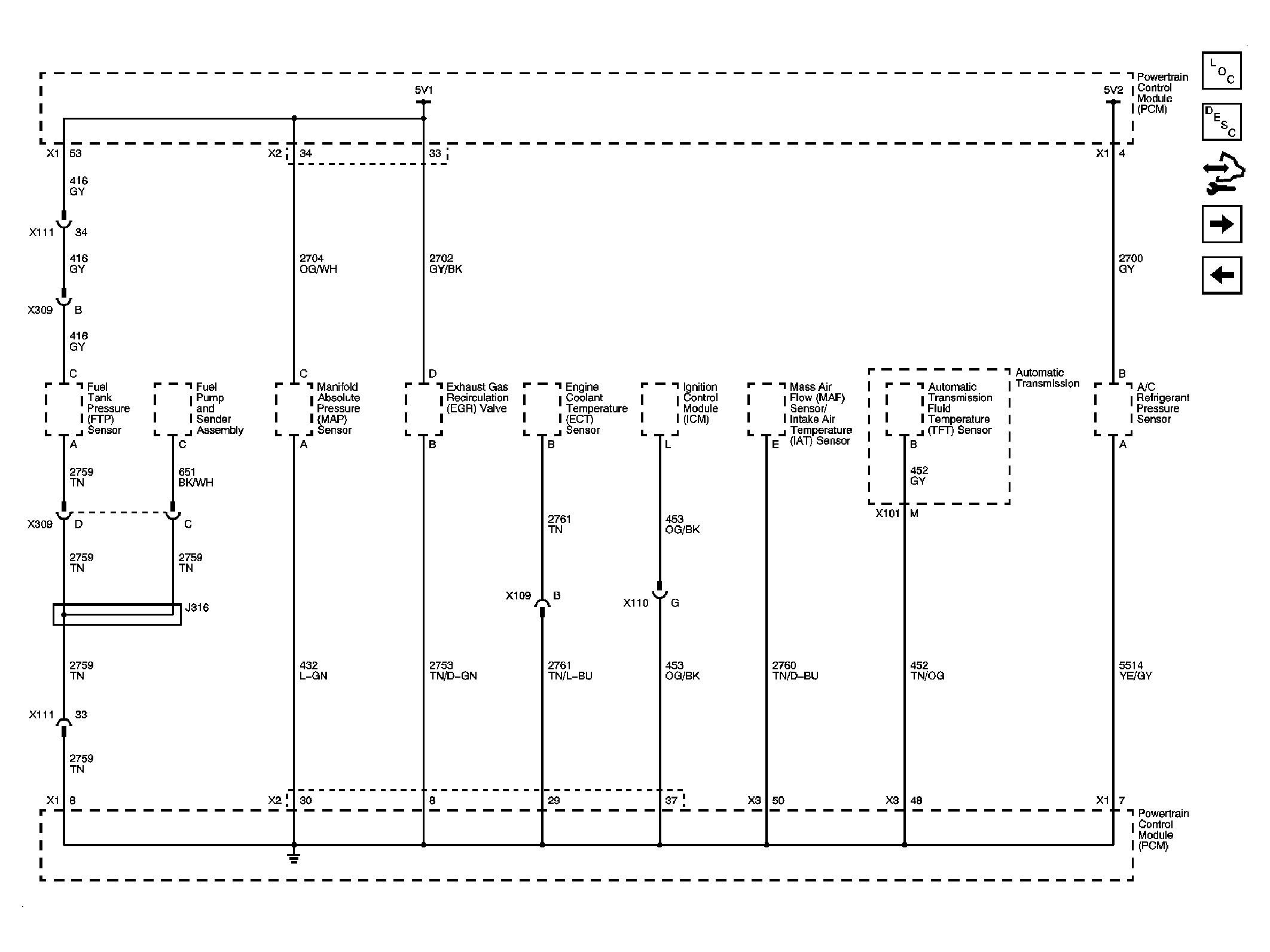

Fig 3: Engine Data Sensors - Pressure, Temp and MAF/IAT

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

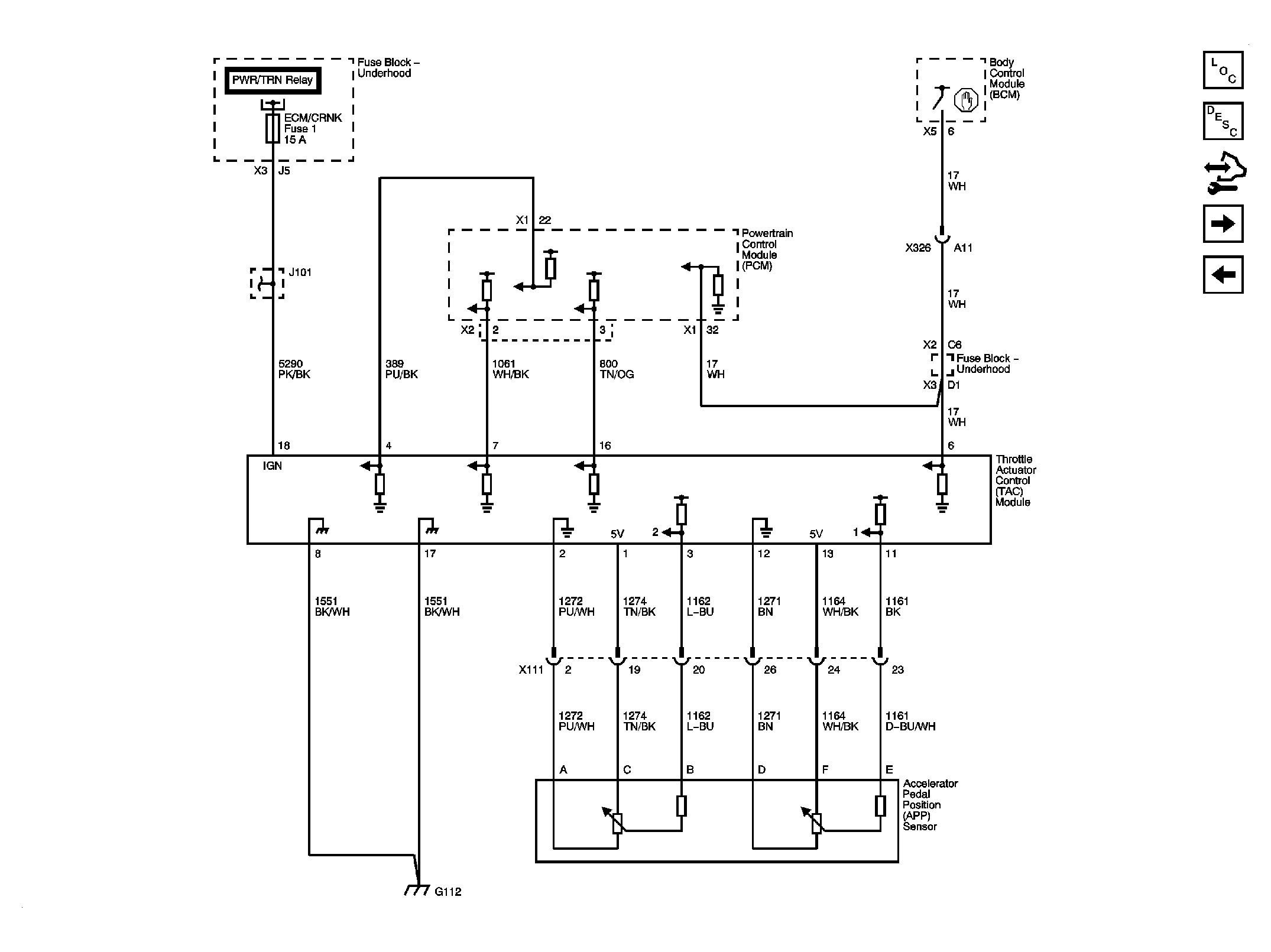

Fig 5: Engine Data Sensors - APP and TAC

Courtesy of GENERAL MOTORS CORP.

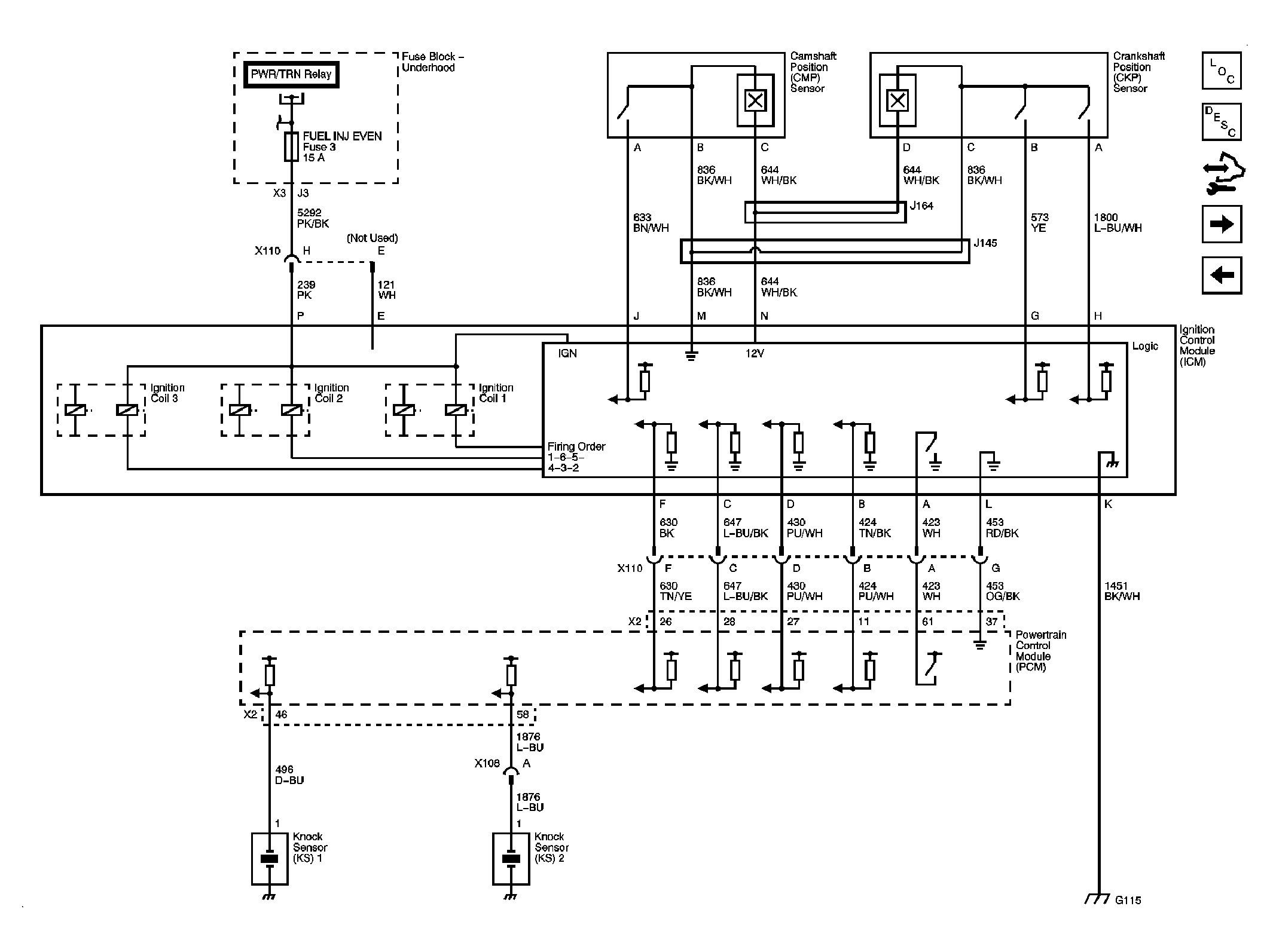

Fig 6: Ignition Controls - CKP, CMP, Knock Sensors

Courtesy of GENERAL MOTORS CORP.

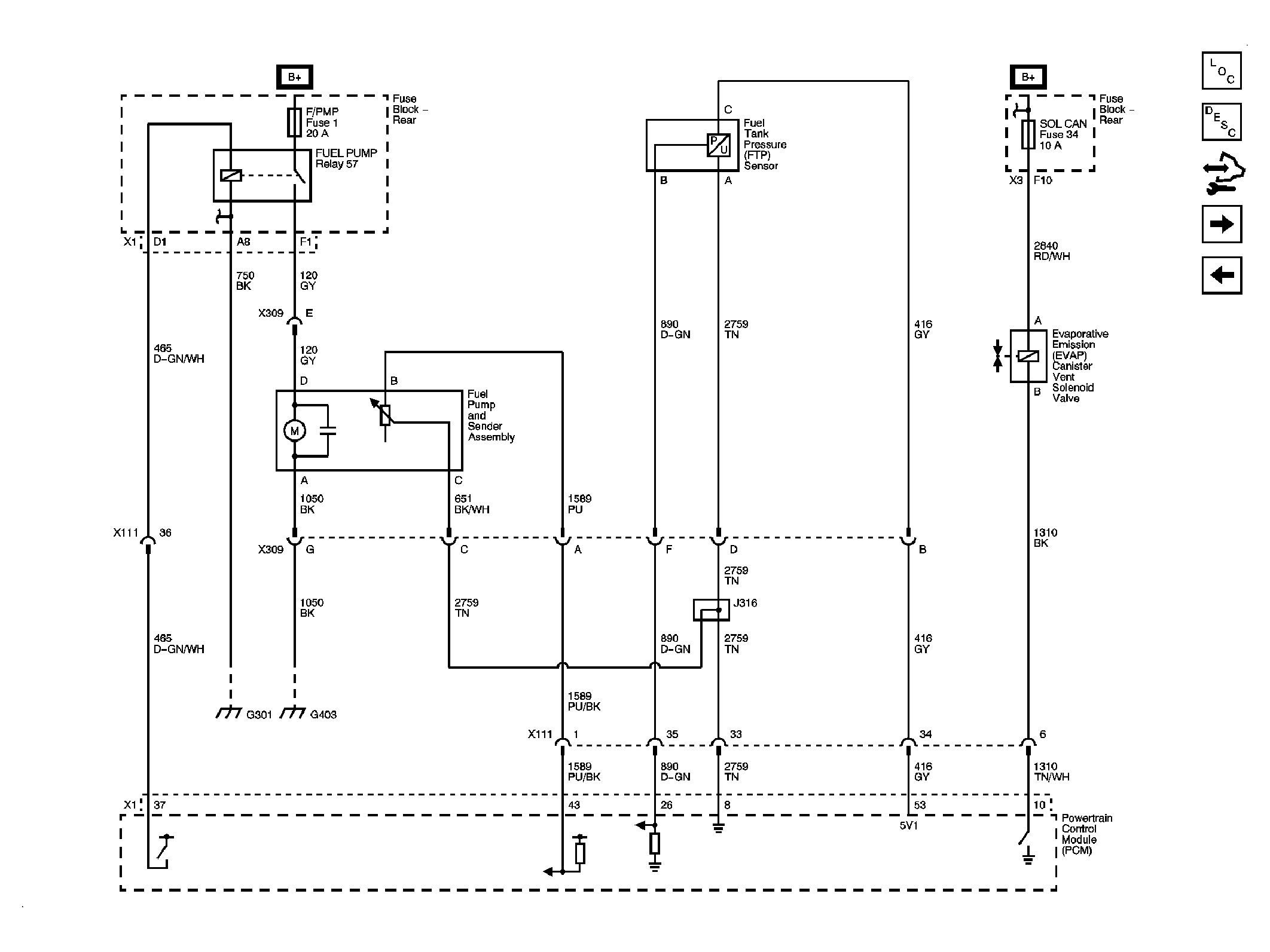

Fig 7: Fuel Controls

Courtesy of GENERAL MOTORS CORP.

Fig 8: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

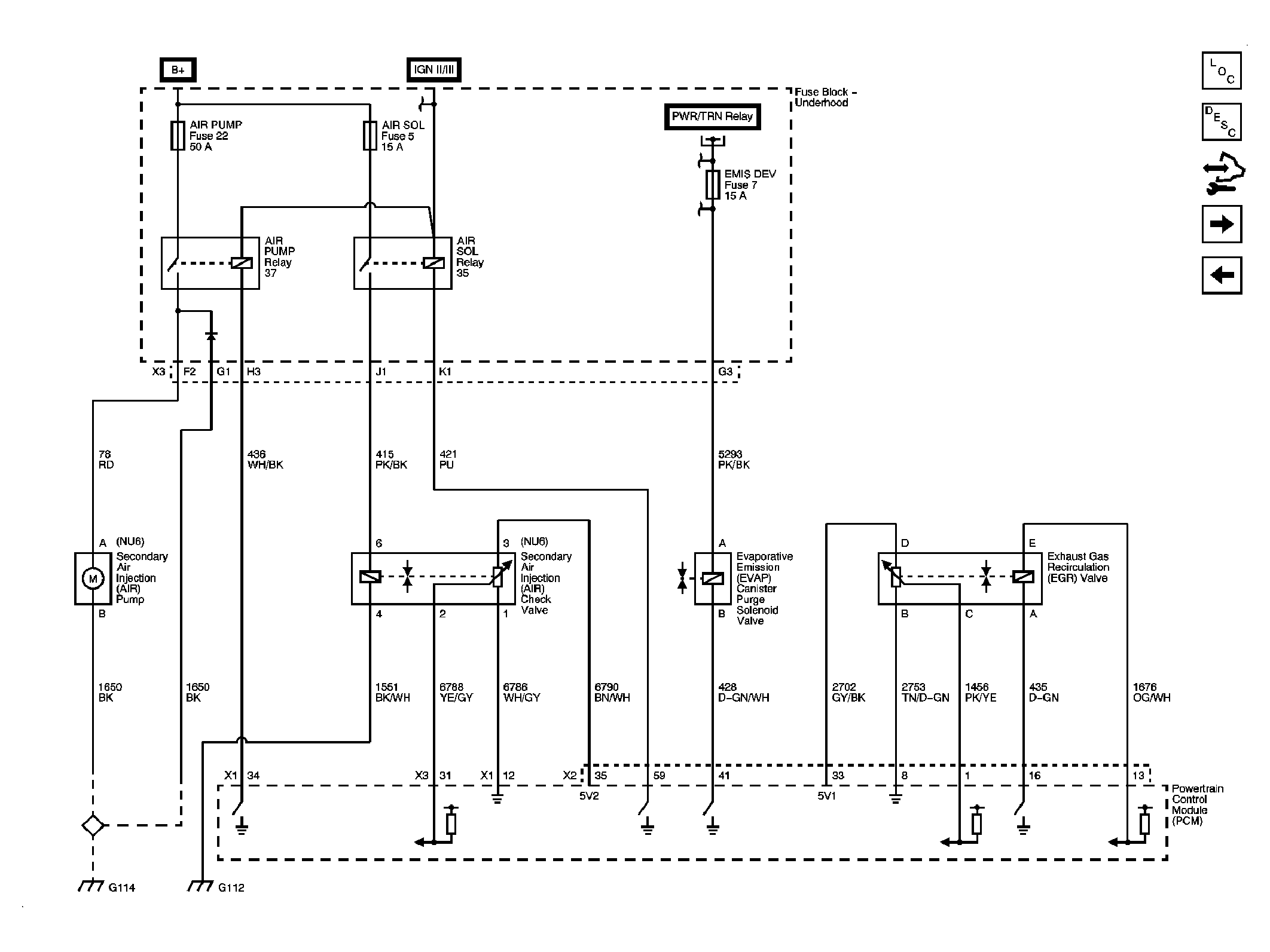

Fig 9: EGR, Secondary Air Injection (AIR)

Courtesy of GENERAL MOTORS CORP.

Fig 10: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

Fig 11: Automatic Transmission Controls References

Courtesy of GENERAL MOTORS CORP.
