Power Steering Schematics

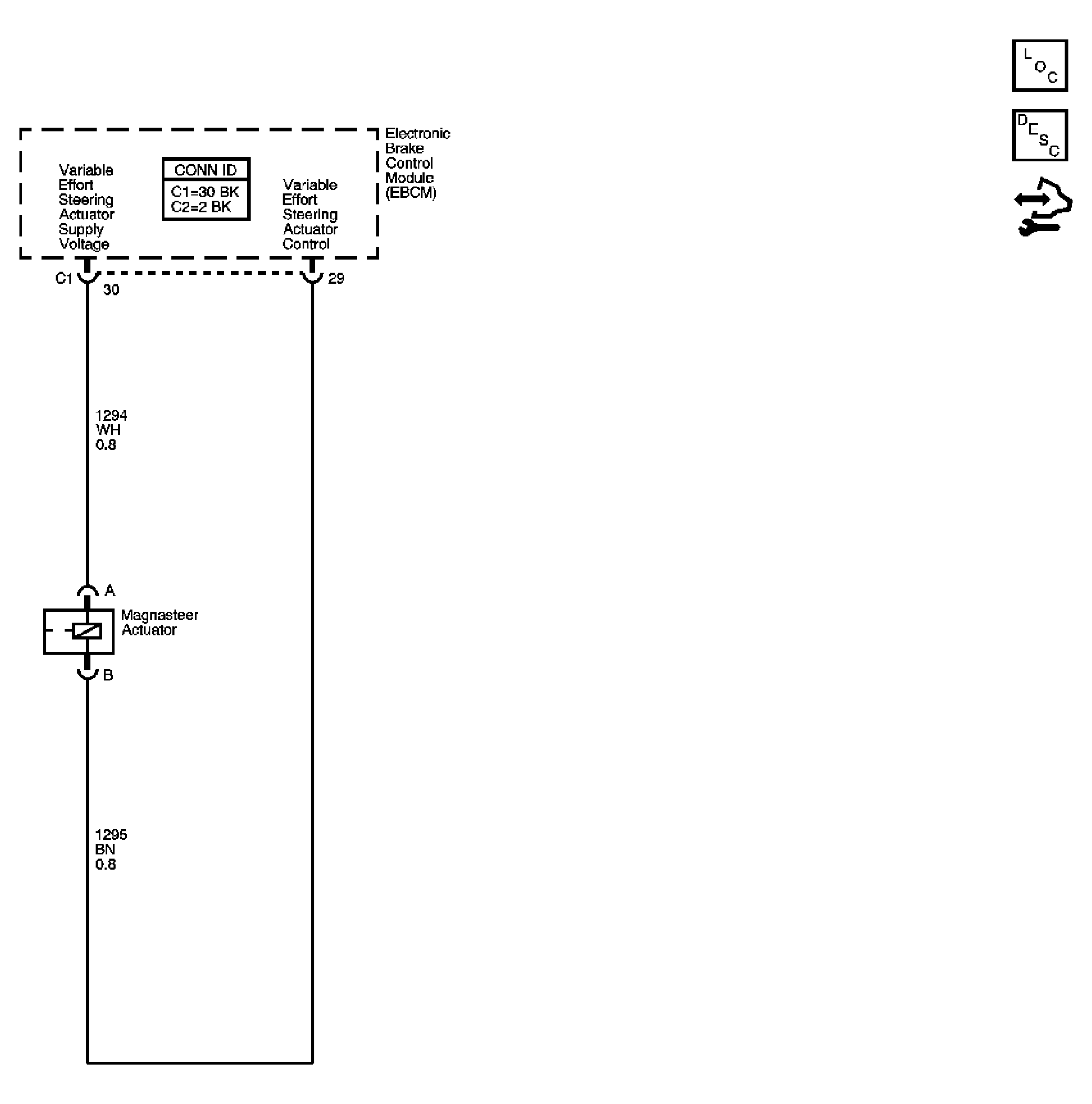

Fig 1: Power Steering Schematic

GM1889042

Courtesy of GENERAL MOTORS CORP.
