Antilock Brake System Schematics

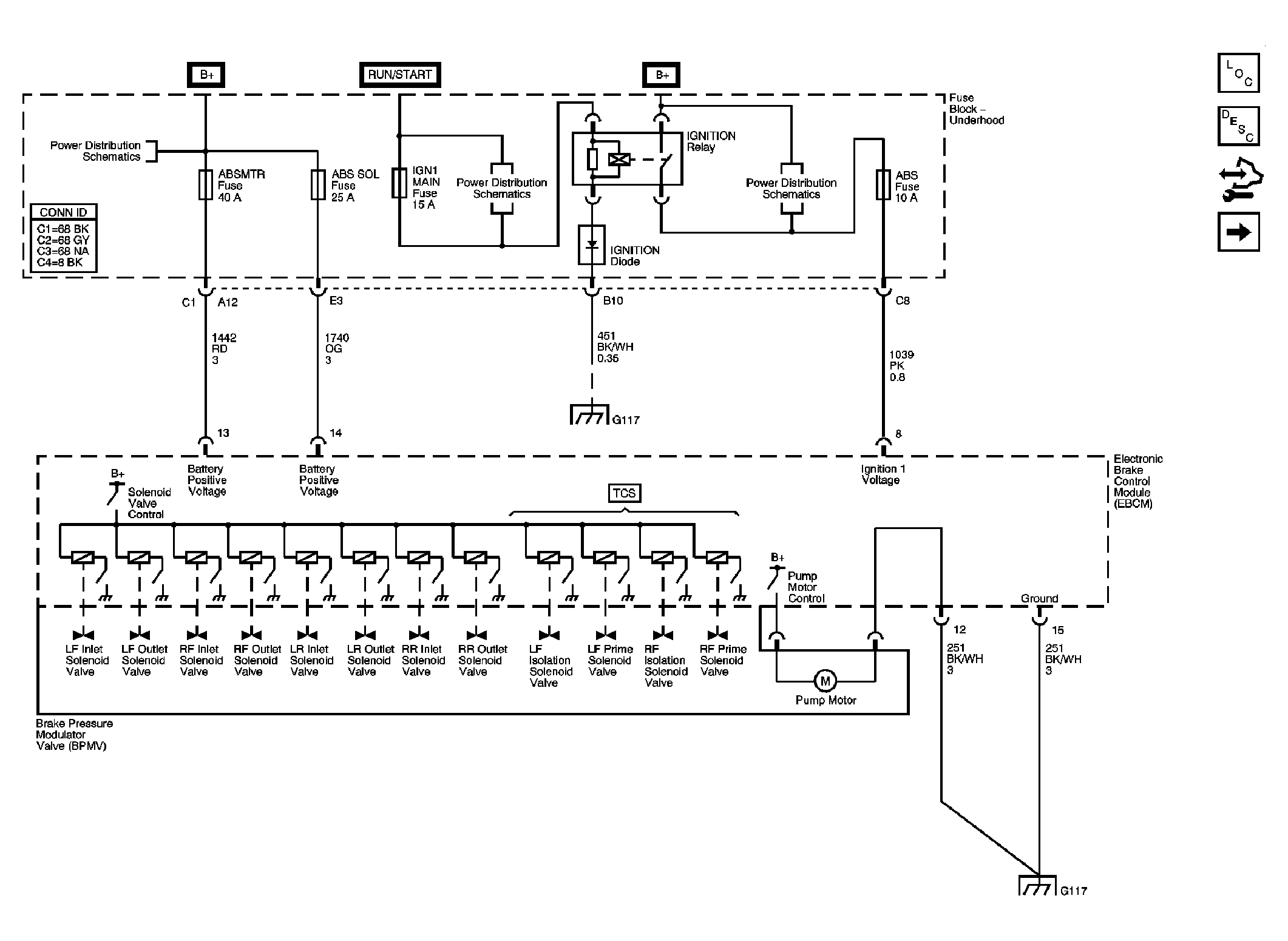

Fig 1: Ground, Power, Pump, and Solenoid Valves Schematic
GM1740908Courtesy of GENERAL MOTORS CORP.

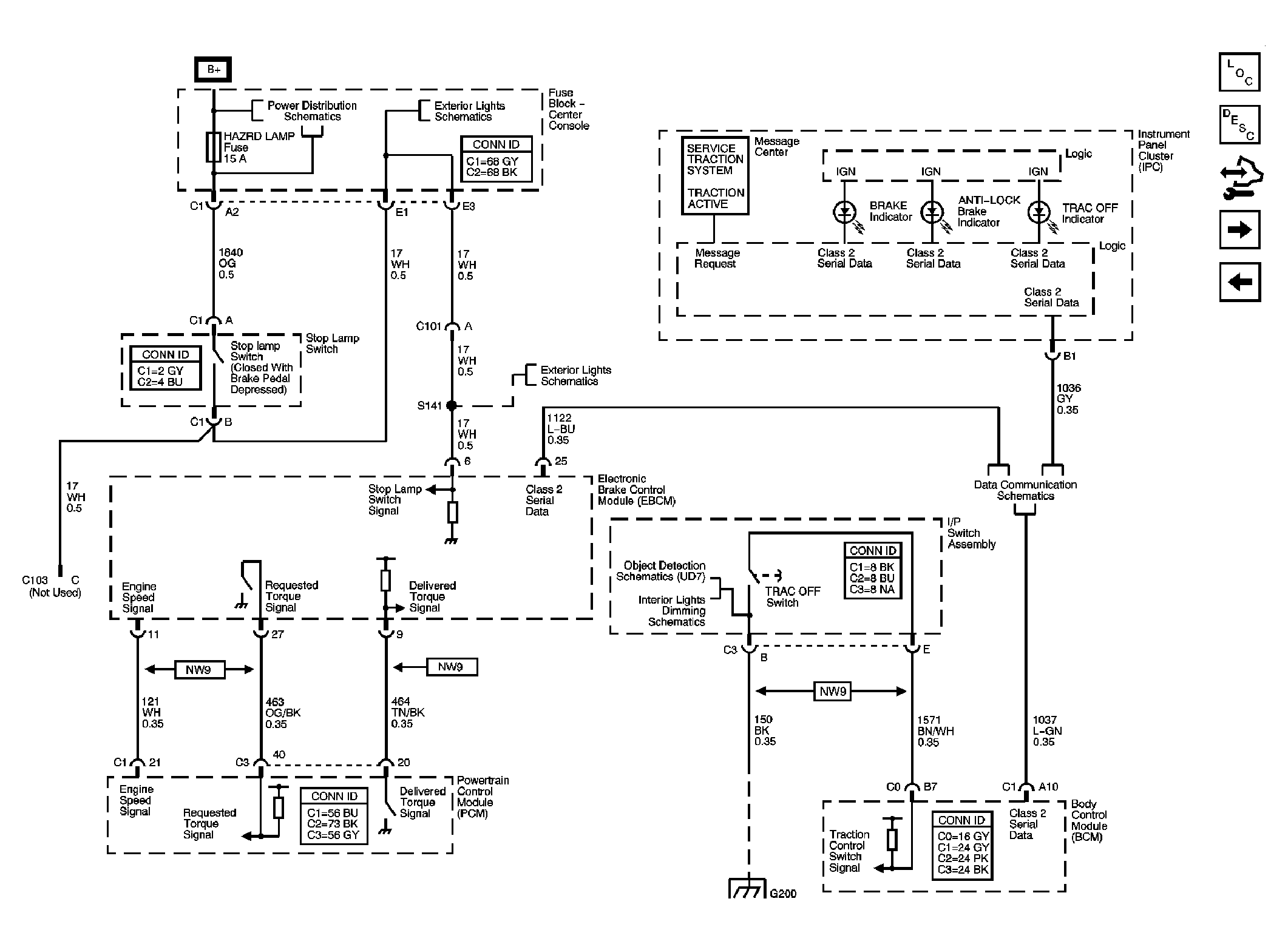

Fig 2: DLC, Indicators, and Traction Control Switch Schematic
GM1740910Courtesy of GENERAL MOTORS CORP.

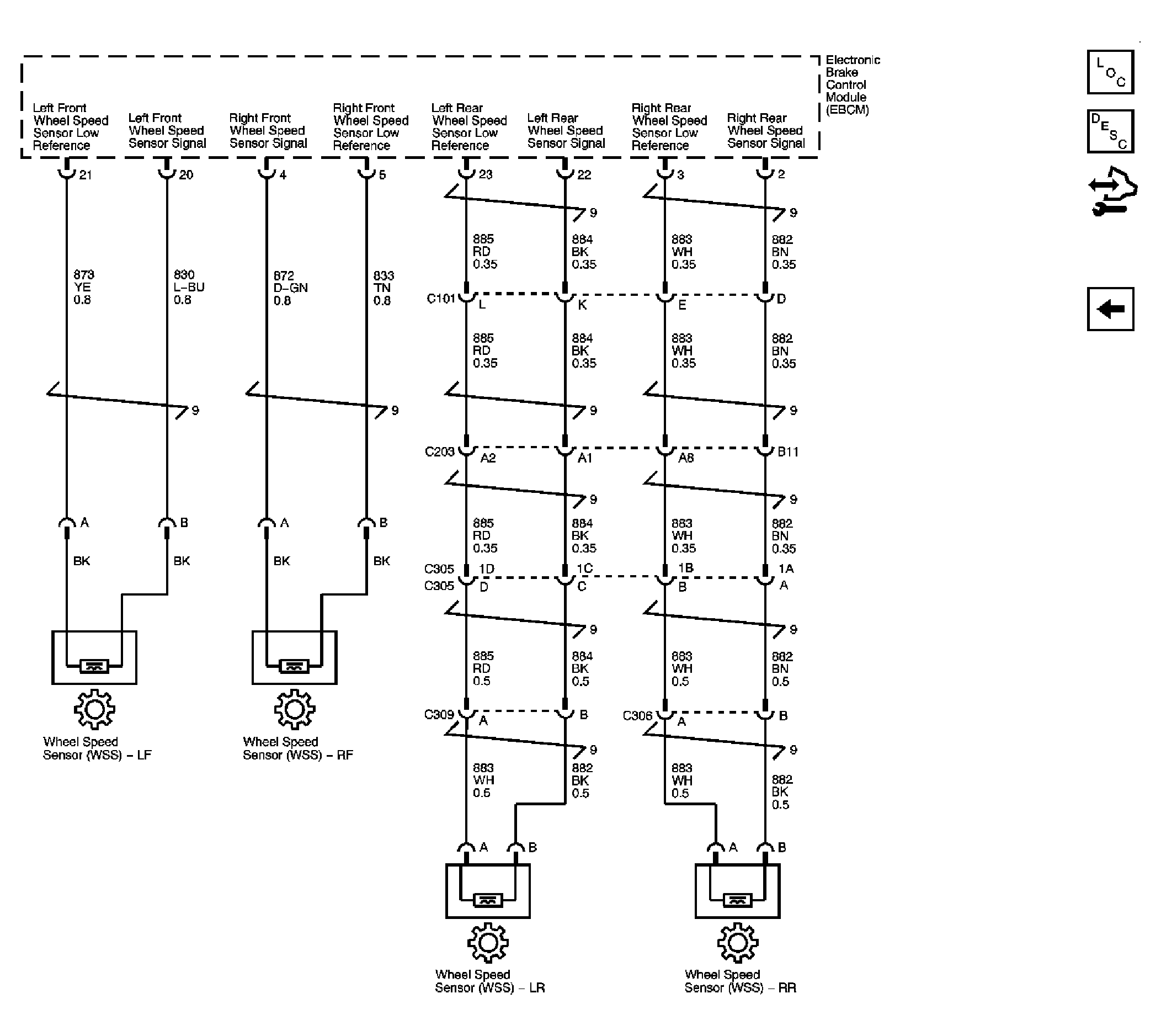

Fig 3: Wheel Speed Sensors Schematic
GM1740911Courtesy of GENERAL MOTORS CORP.
