Immobilizer Schematics

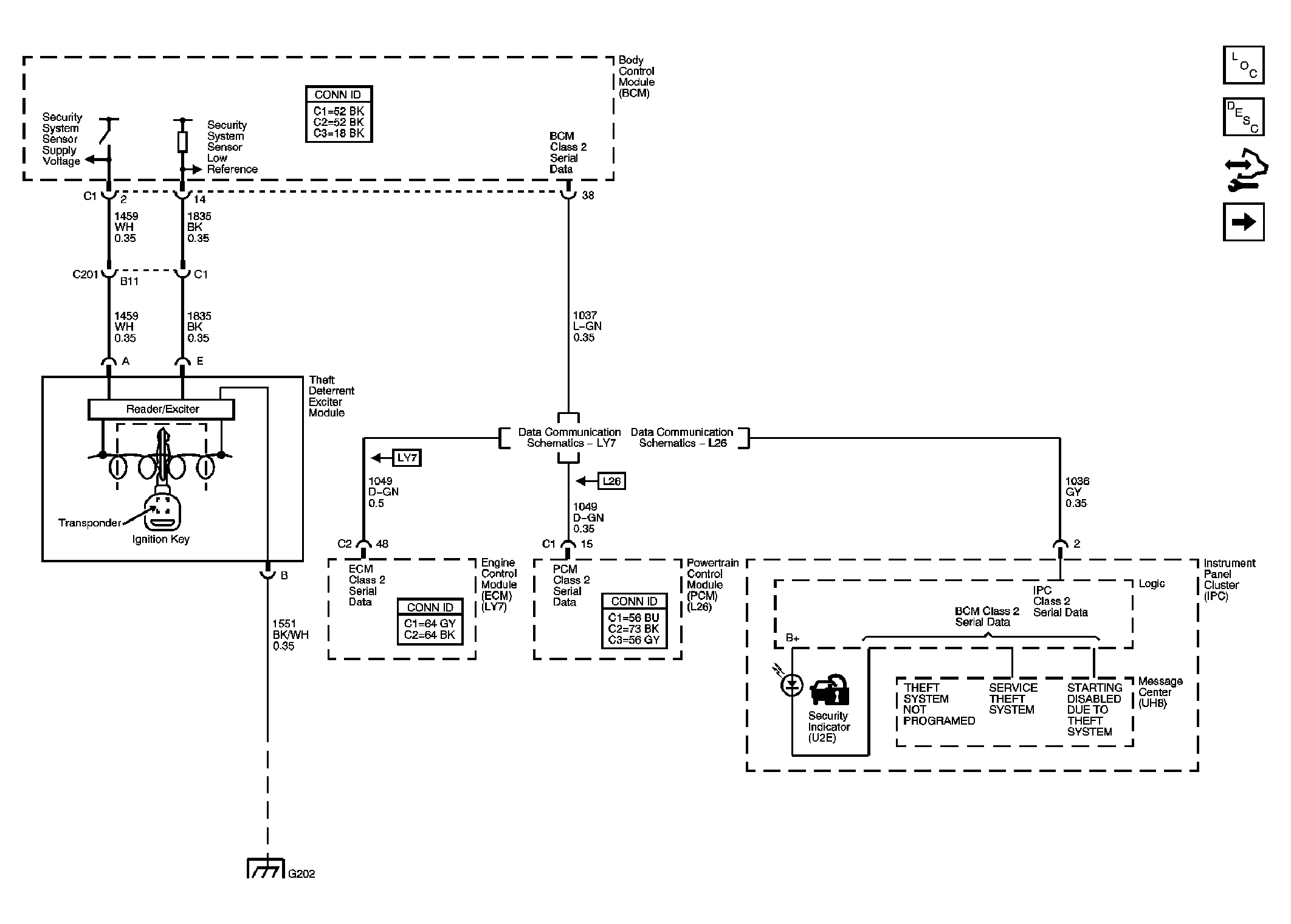

Fig 1: Vehicle Theft Deterrent (VTD) System Schematic

GM1803316

Courtesy of GENERAL MOTORS CORP.
