Automatic Transmission Shift Lock Control Schematics

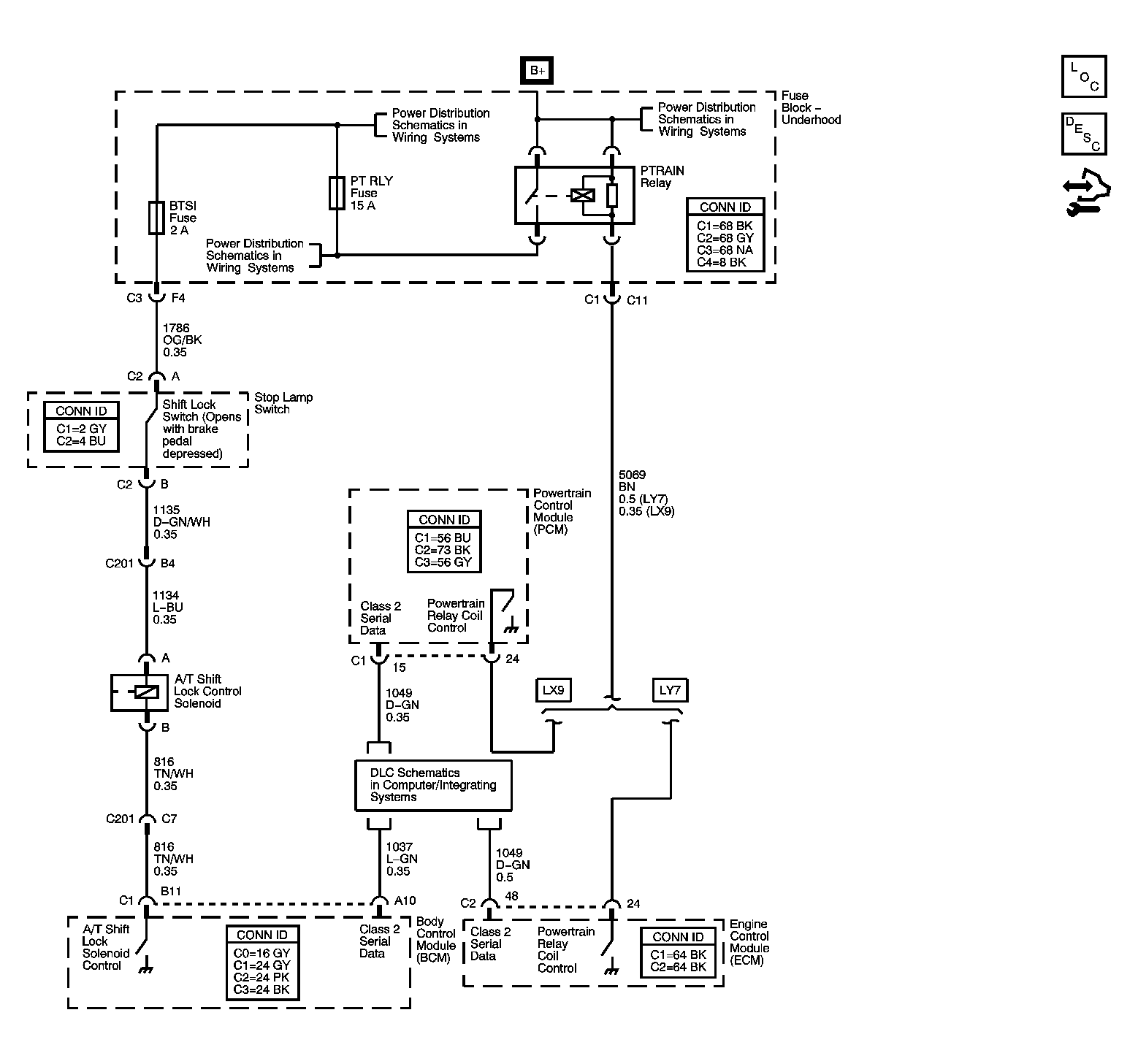

Fig 1: Automatic Transmission Shift Lock Control

GM1619619

Courtesy of GENERAL MOTORS CORP.
