Object Detection Schematics

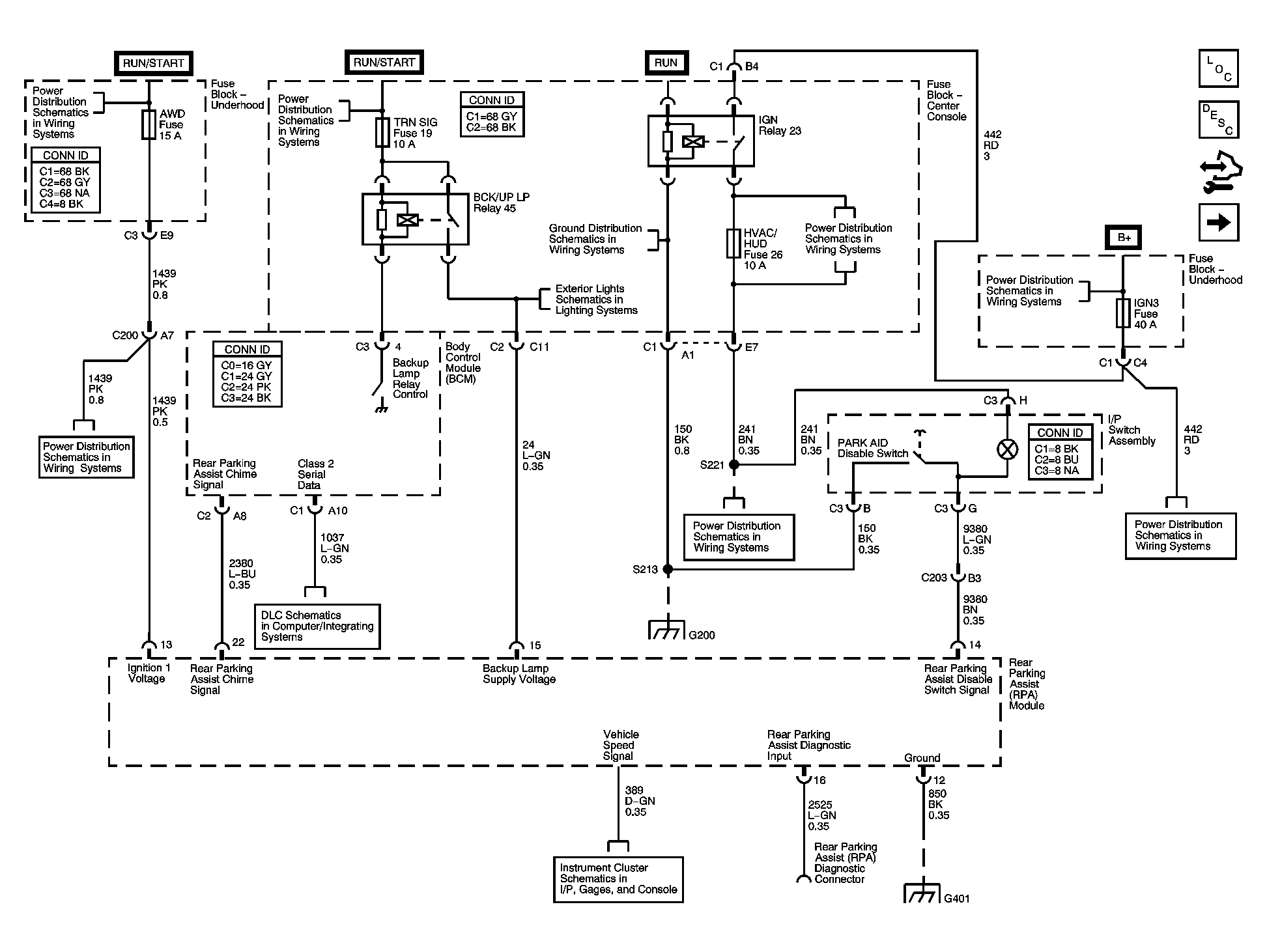

Fig 1: Enabling, Ground, and Power

GM1619615

Courtesy of GENERAL MOTORS CORP.
