Door Lock/Indicator Schematics

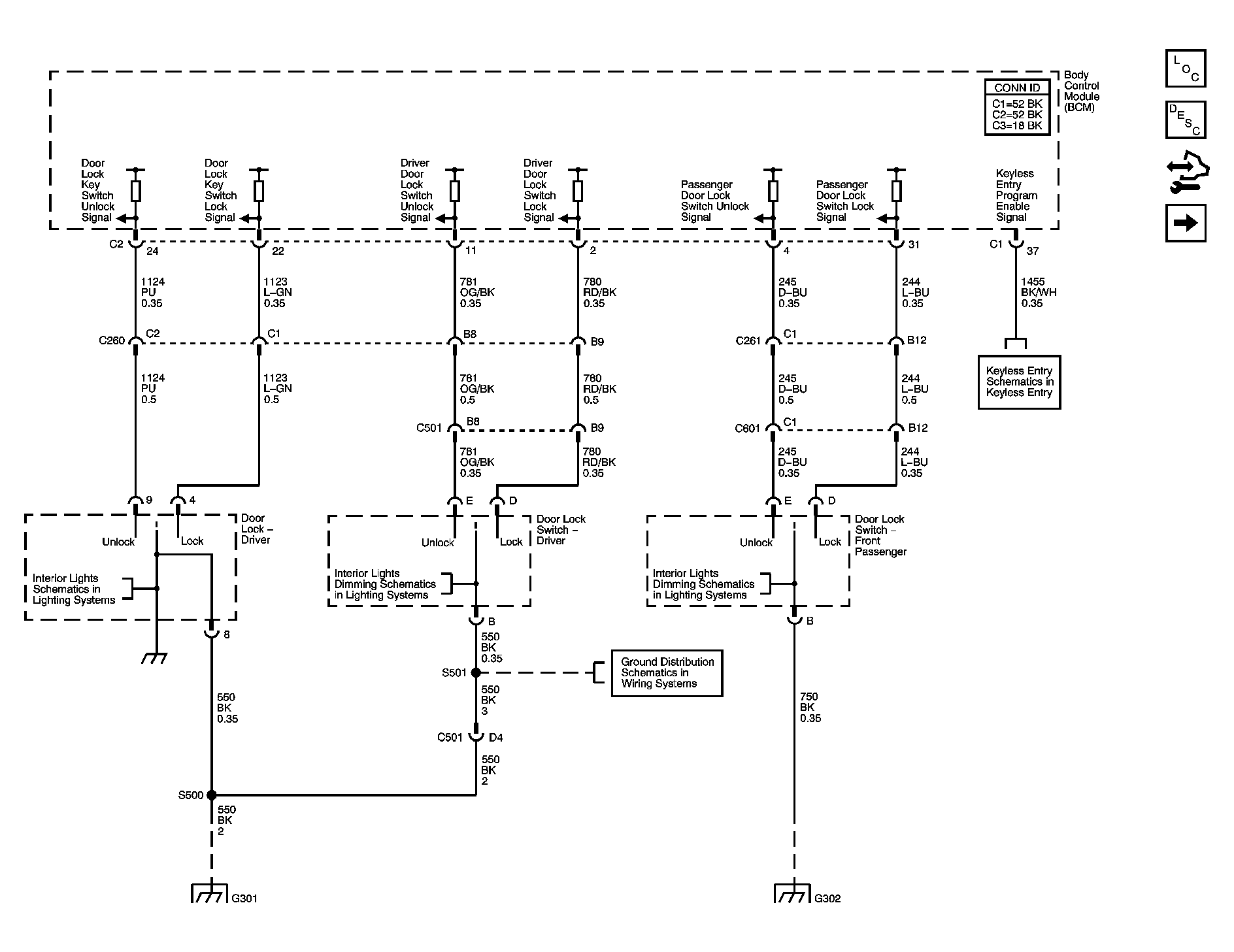

Fig 1: Switches Schematic
GM1645383Courtesy of GENERAL MOTORS CORP.

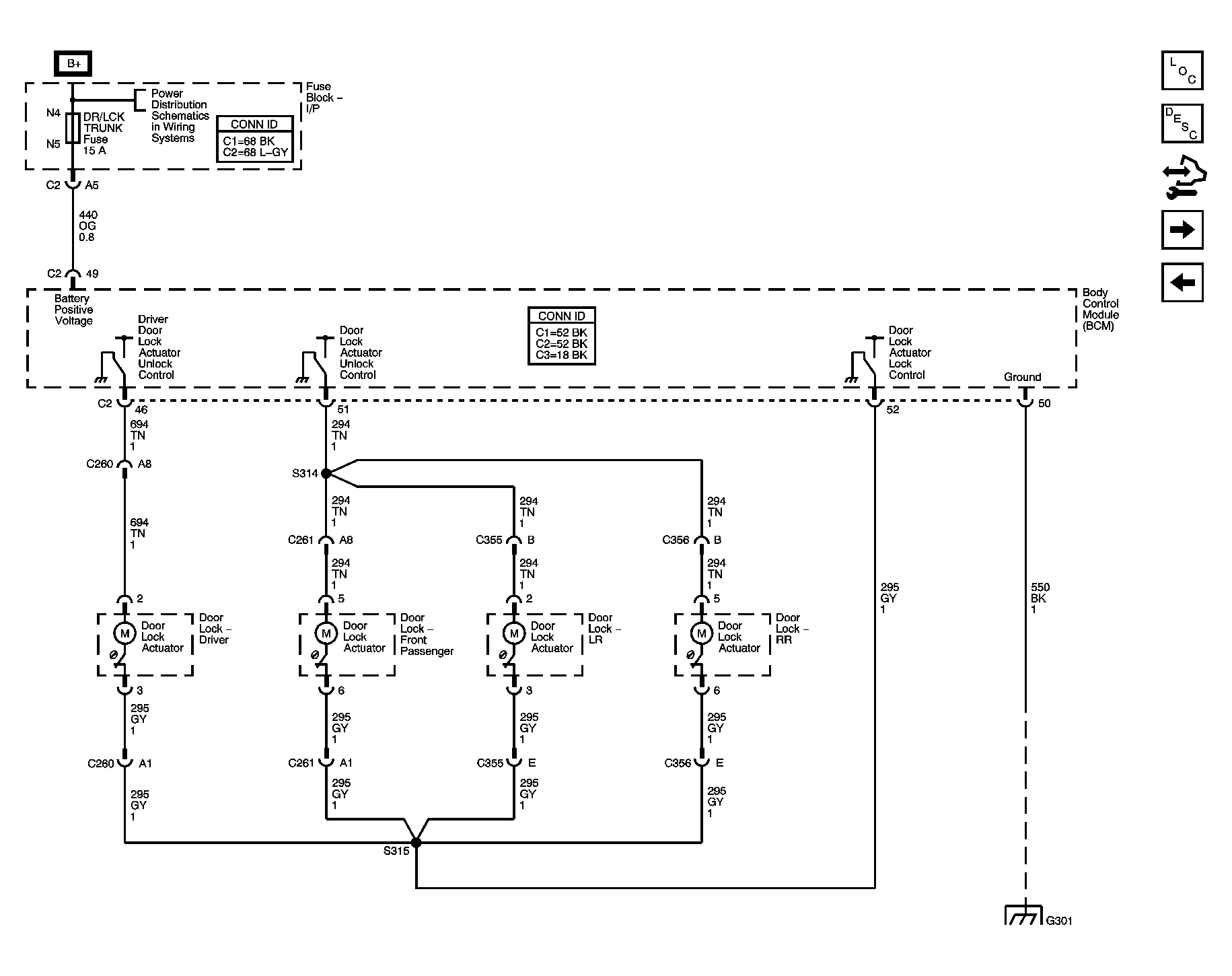

Fig 2: Actuators Schematic
GM1645385Courtesy of GENERAL MOTORS CORP.

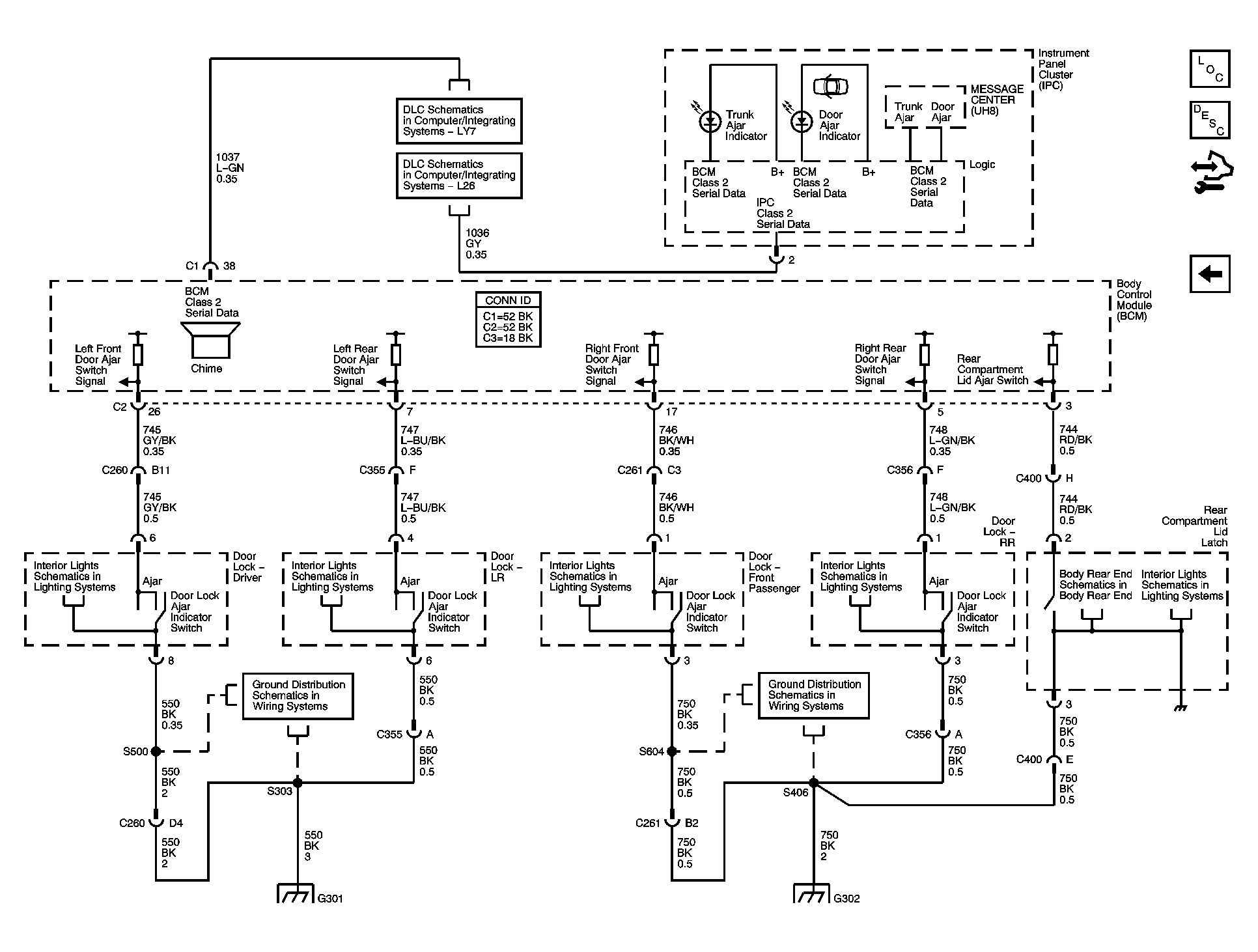

Fig 3: Door Ajar Indicators Schematic
GM1645386Courtesy of GENERAL MOTORS CORP.
