Fuel Hose/Pipes Routing Diagram (With L67)

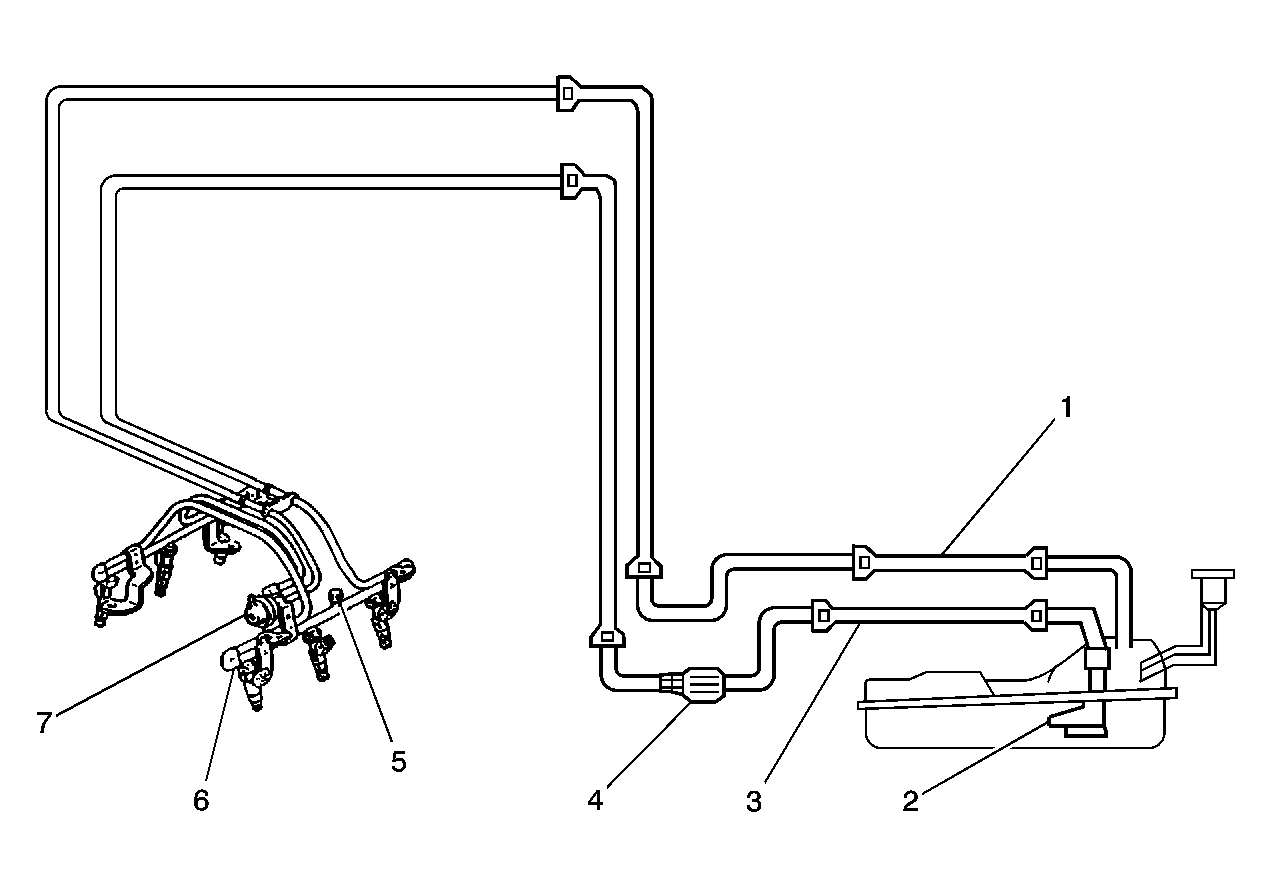

Fig 1: Identifying Fuel Hose/Pipes Routing (With L67)
GM694918Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Return Pipe
2 Fuel Pump Module
3 Fuel Feed Pipe
4 Fuel Filter
5 Fuel Pressure Service Connection
6 Fuel Injector Rail
7 Fuel Pressure Regulator
