Installation Procedure

  1. Install the EVAP purge pipe into the fuel bundle.

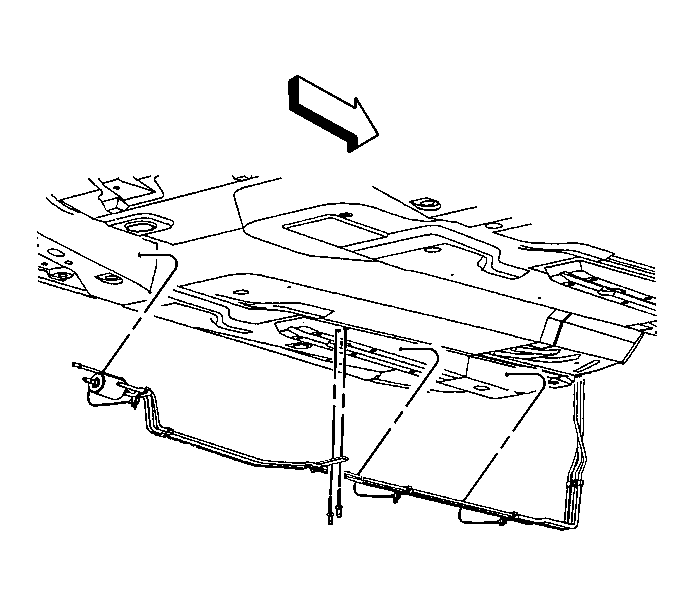

    2. Fig 1: Removing/Installing Evaporative Emission (EVAP) Hoses/Pipes
    GM65986Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel hose/pipe bundle. Refer to Fuel Hose/Pipes Replacement - Filter to Engine .
