Installation Procedure

    Fig 1: Illustrating Proper Routing Of Automatic Transaxle Range Selector Cable
    GM161144Courtesy of GENERAL MOTORS CORP.
  1. Properly route the range selector cable through the engine compartment.
  2. Install the range selector cable through the cowl.
    3. Fig 2: Range Selector Cable At Steering Column Bracket
    GM161140Courtesy of GENERAL MOTORS CORP.
  3. Install the range selector cable to the steering column bracket.
    4. Fig 3: View Of Automatic Transaxle Range Selector Cable Retaining Clip
    GM161141Courtesy of GENERAL MOTORS CORP.
  4. Install the retaining clip to the range selector cable.
  5. Install the range selector cable to the column control lever.
  6. Install the left IP closeout panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.

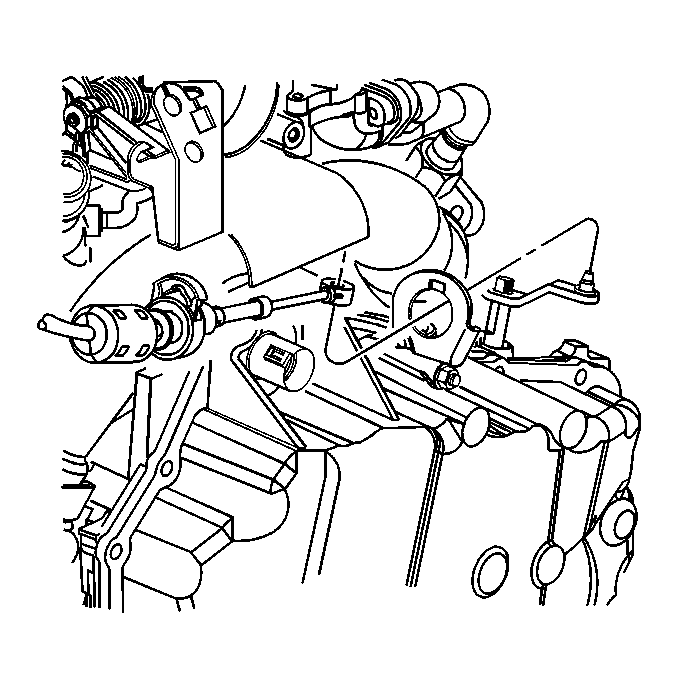

    7. Fig 4: Transaxle Range Selector Cable
    GM627375Courtesy of GENERAL MOTORS CORP.
  7. Install the transaxle range selector cable into the bracket.
  8. Connect the transaxle range selector cable terminal to the transaxle manual shift lever pin.

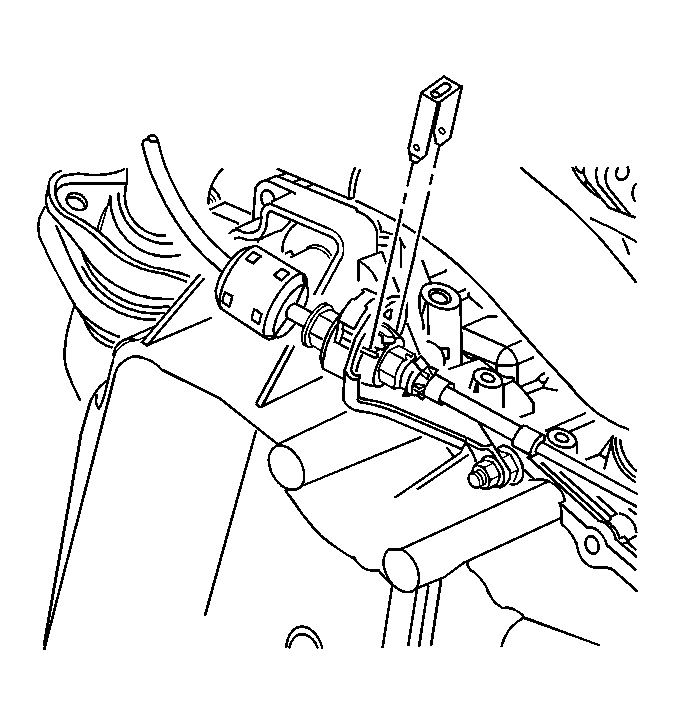

    9. Fig 5: Transaxle Range Selector Cable Retainer
    GM627381Courtesy of GENERAL MOTORS CORP.
  9. Insert the retainer to the transaxle range selector cable mechanism.
  10. Adjust the range selector cable. Refer to Automatic Transmission Range Selector Cable Adjustment .
