Door Lock/Indicator Schematics

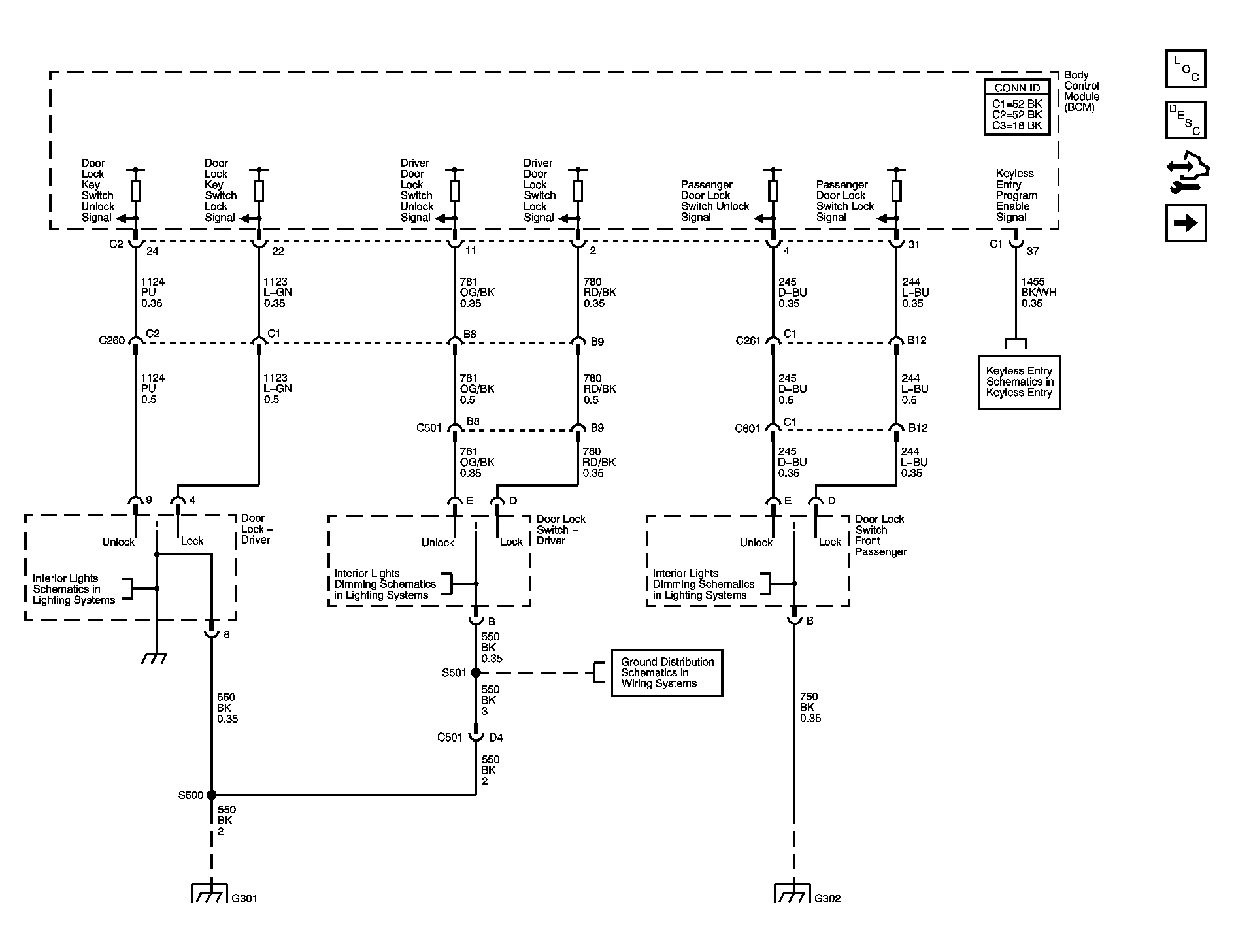

Fig 1: Switches Schematic
GM1478794Courtesy of GENERAL MOTORS CORP.

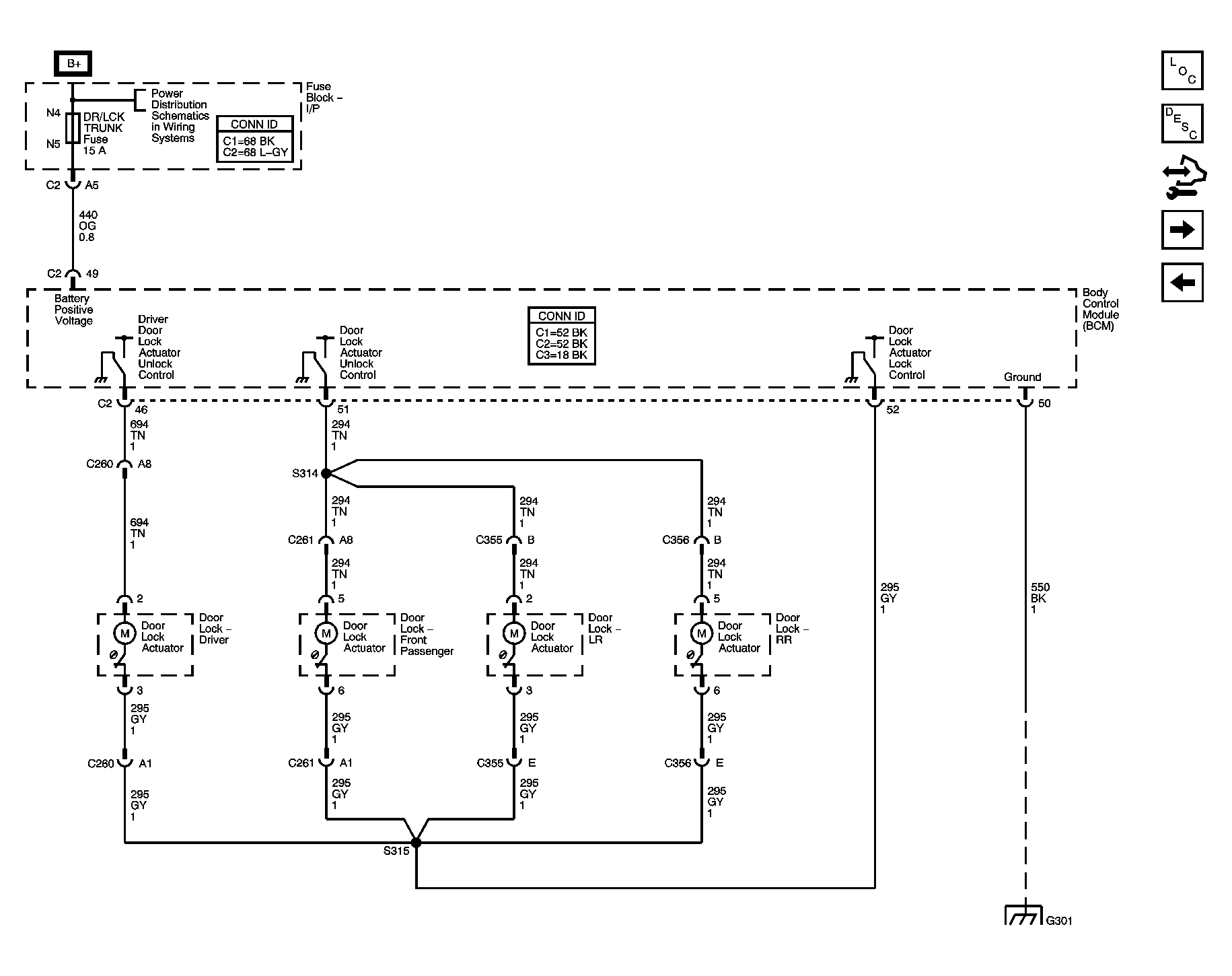

Fig 2: Actuators Schematic
GM1478800Courtesy of GENERAL MOTORS CORP.

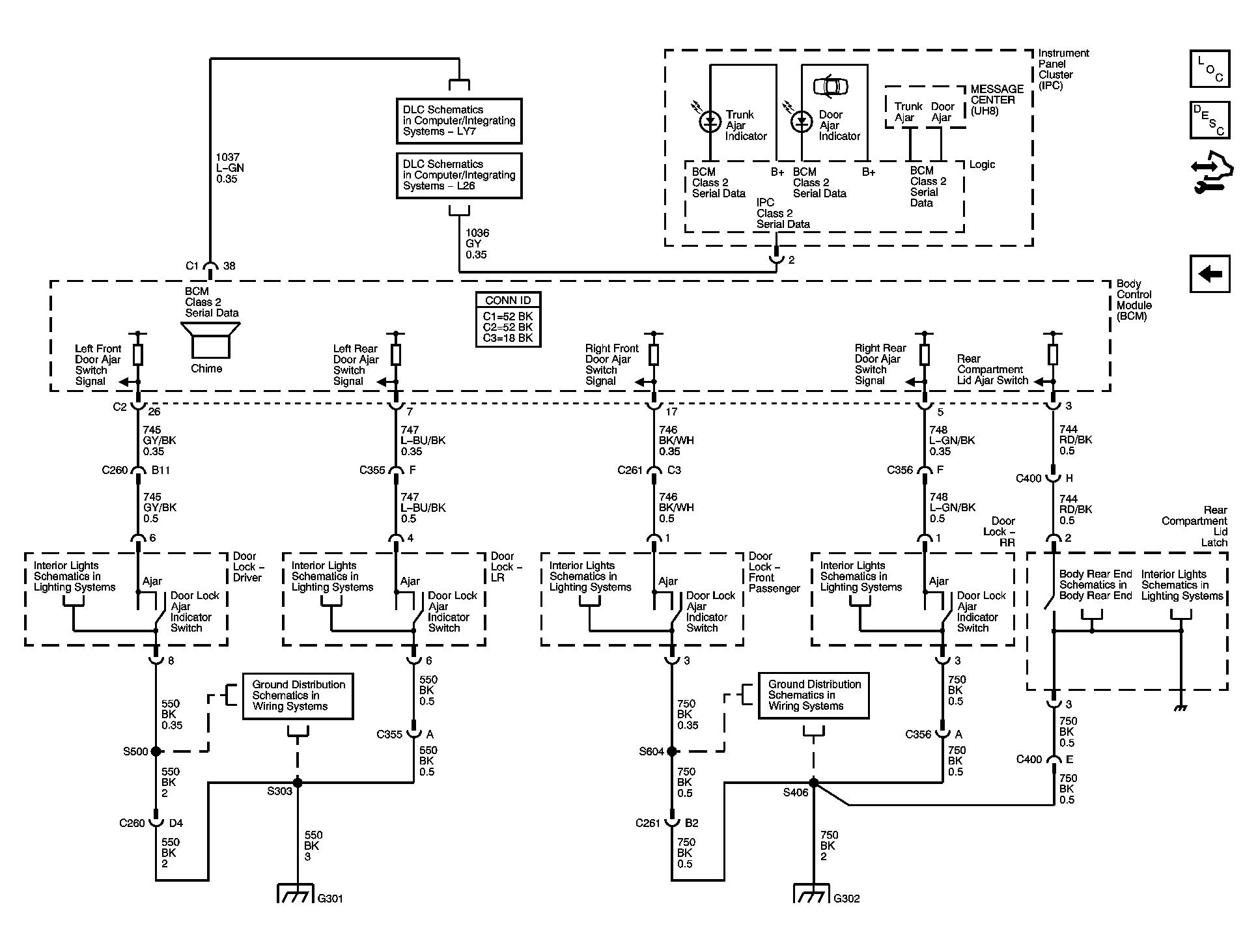

Fig 3: Ajar Indicators Schematic
GM1478801Courtesy of GENERAL MOTORS CORP.
