Removal Procedure

  1. Lower the window to the full down position.
    2. NOTE: Refer to Paint Damage Notice in Cautions and Notices.

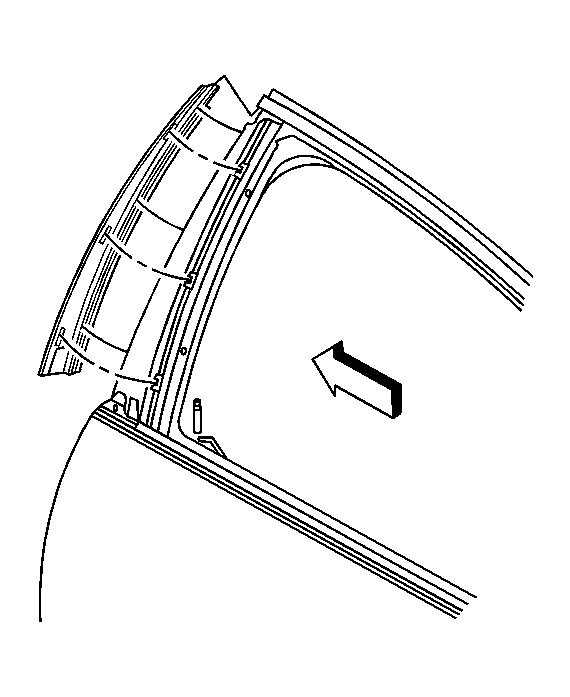

    Fig 1: Door Frame Applique - Front
    GM1362802Courtesy of GENERAL MOTORS CORP.
  2. Apply masking tape to the door frame and applique.
  3. Push downward on the applique until it releases from the upper reveal molding.

    Pulling rearward until it releases from the door retaining clips.
