ABS Schematics

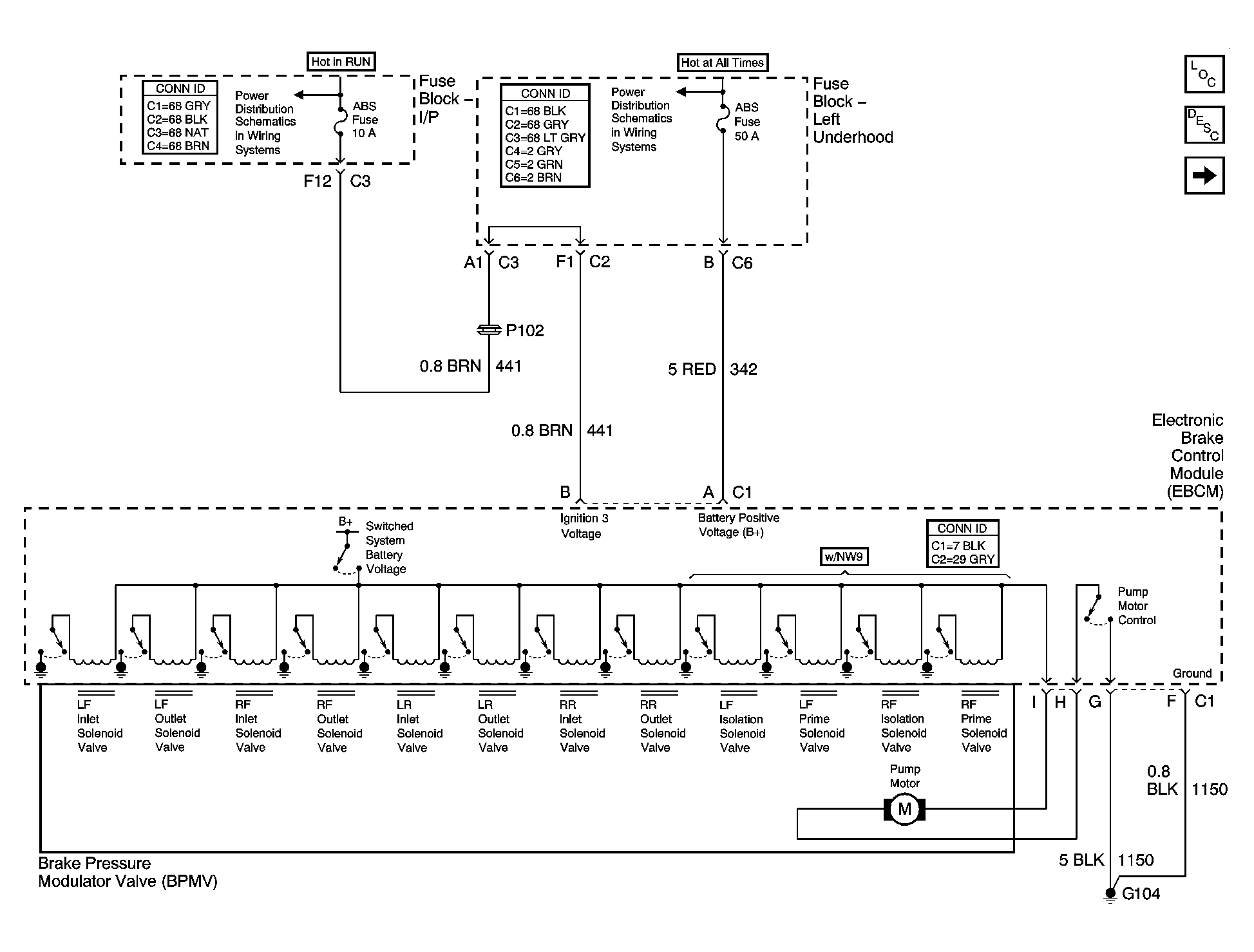

Fig 1: Power, Ground, Solenoid Valves & Pump Motor Schematic

Courtesy of GENERAL MOTORS CORP.

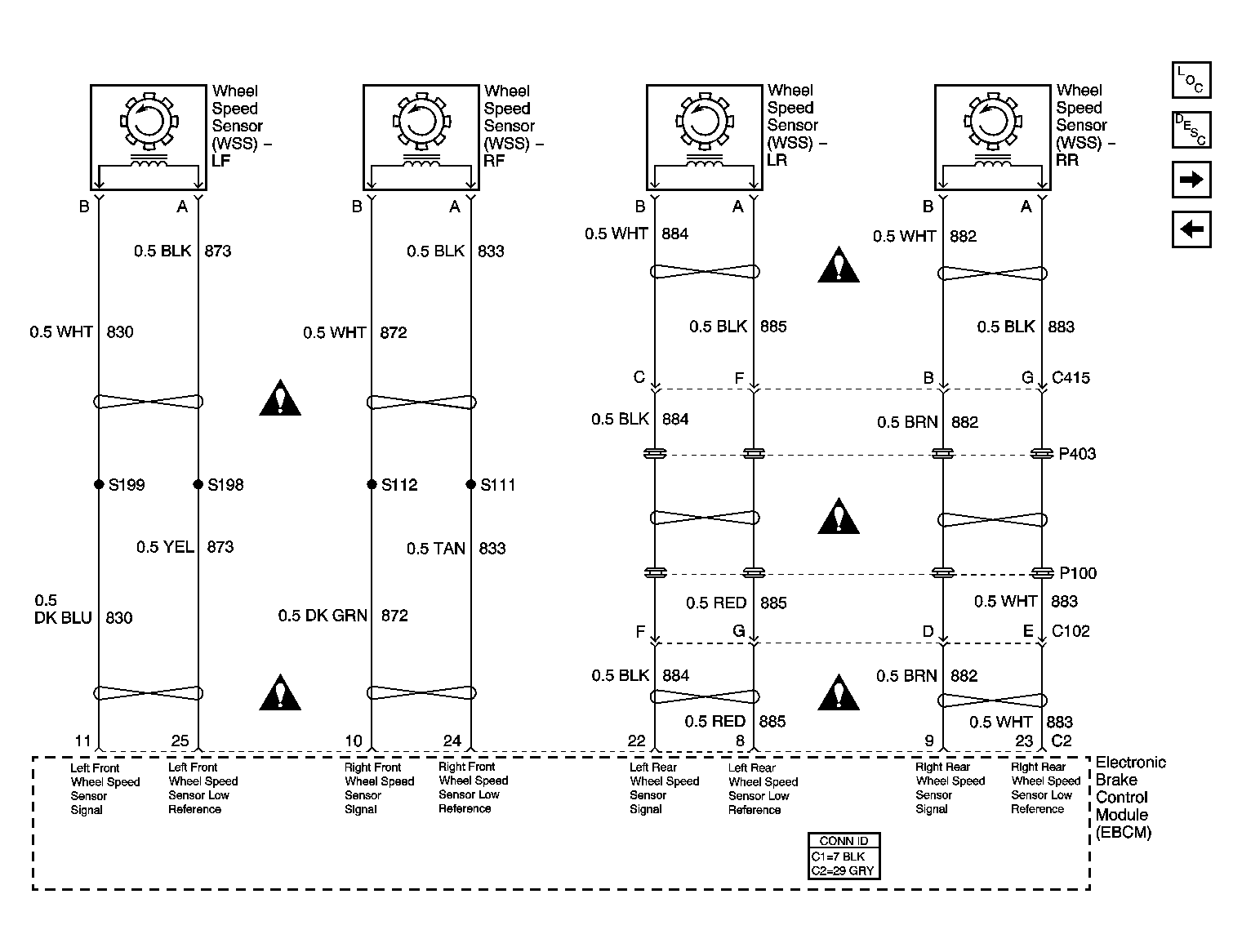

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

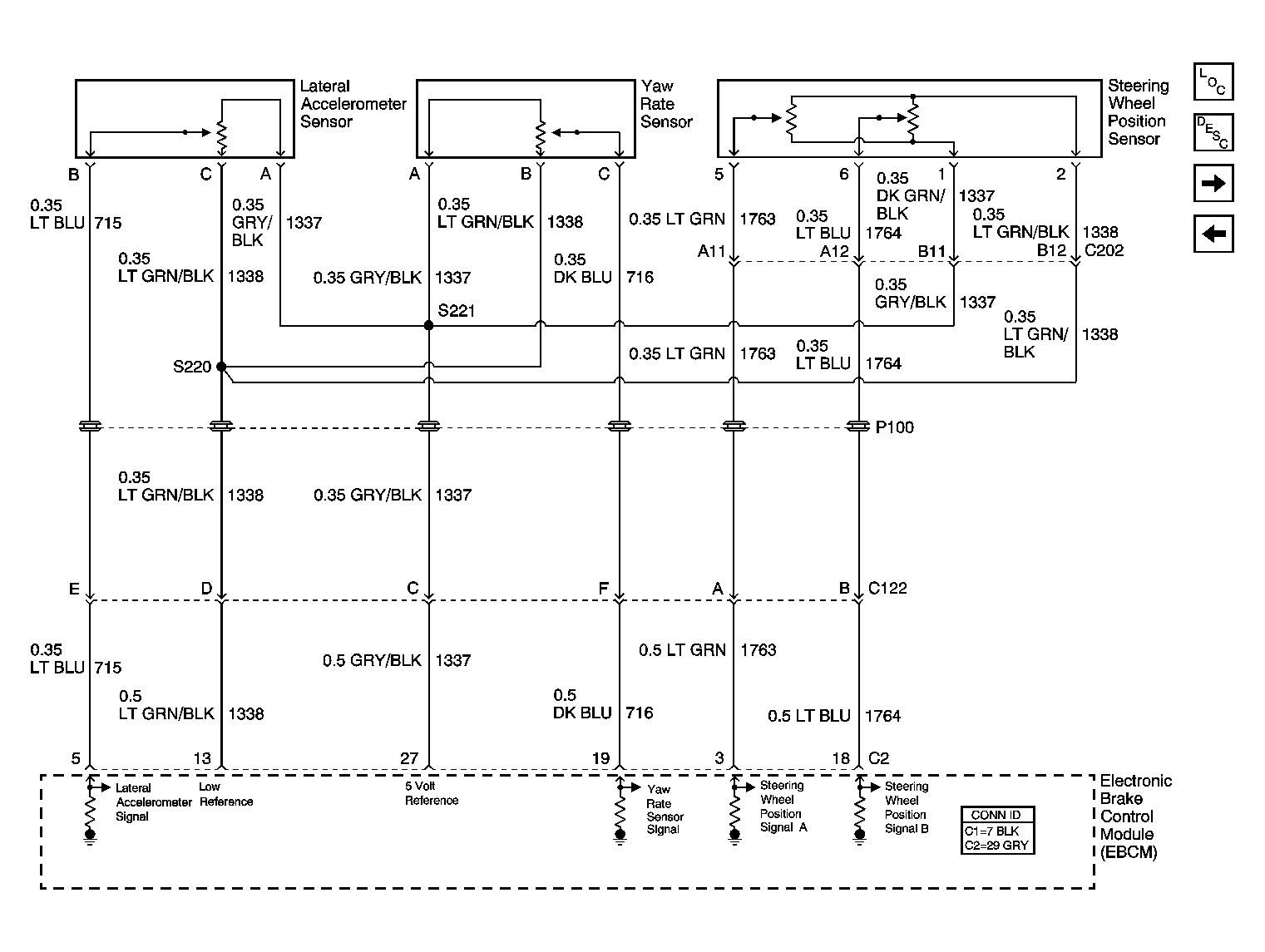

Fig 3: Vehicle Stability Enhancement System (w/JL4) Schematic

Courtesy of GENERAL MOTORS CORP.

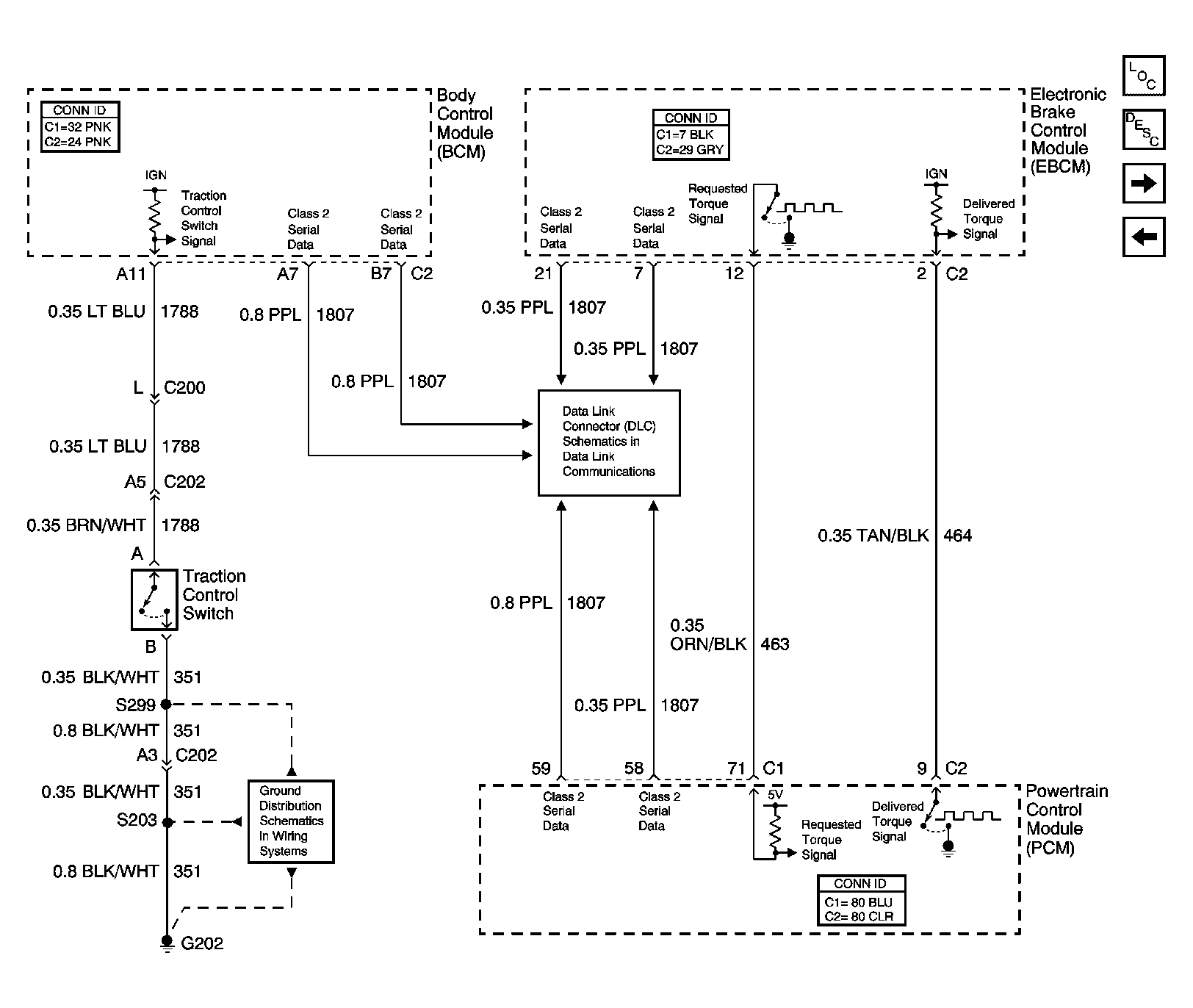

Fig 4: Traction Control (w/NW9/JL4) & Variable Effort Steering (w/NV8) Schematic

Courtesy of GENERAL MOTORS CORP.

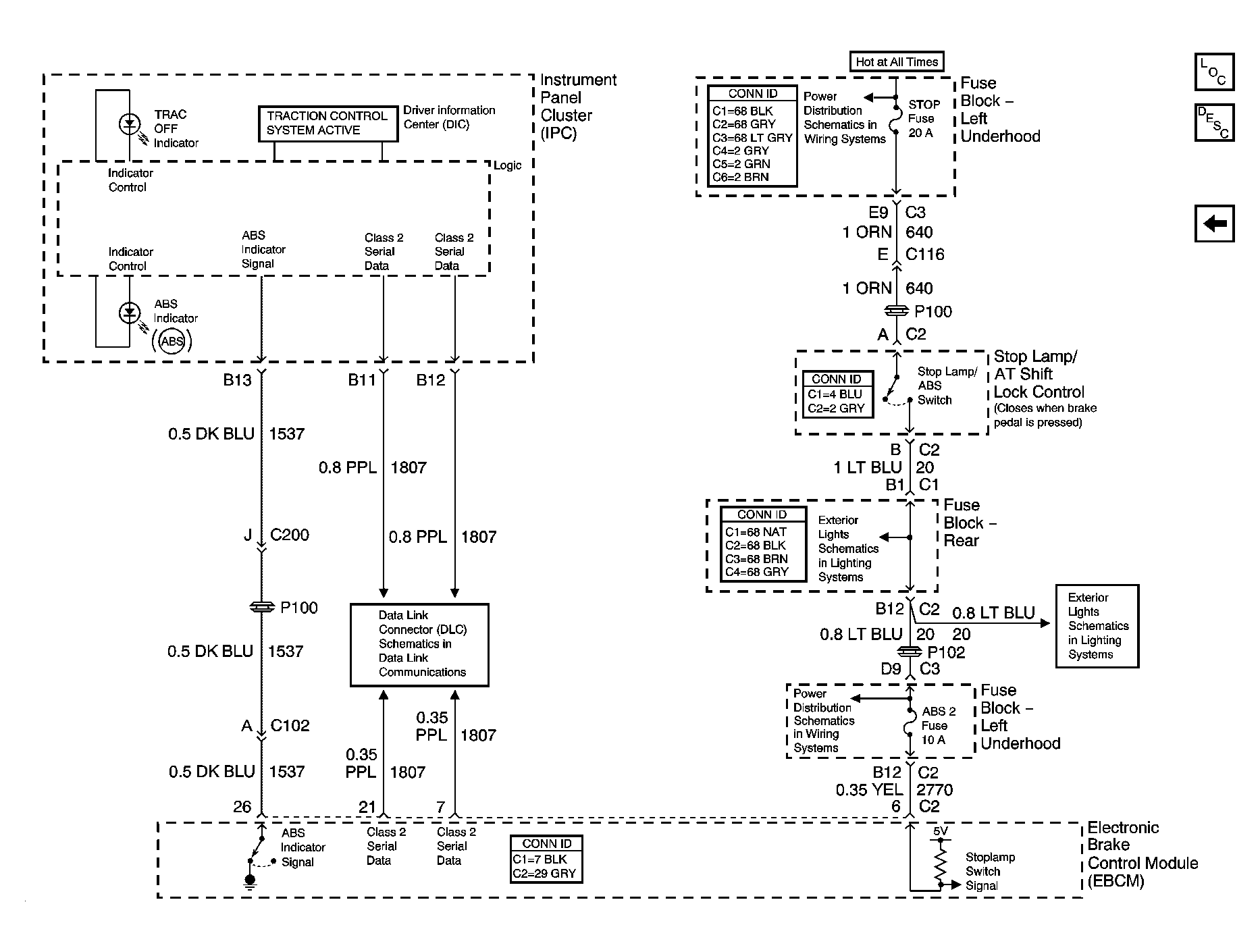

Fig 5: Indicators & Stop Lamp Switch Schematic

Courtesy of GENERAL MOTORS CORP.
