ABS Schematics

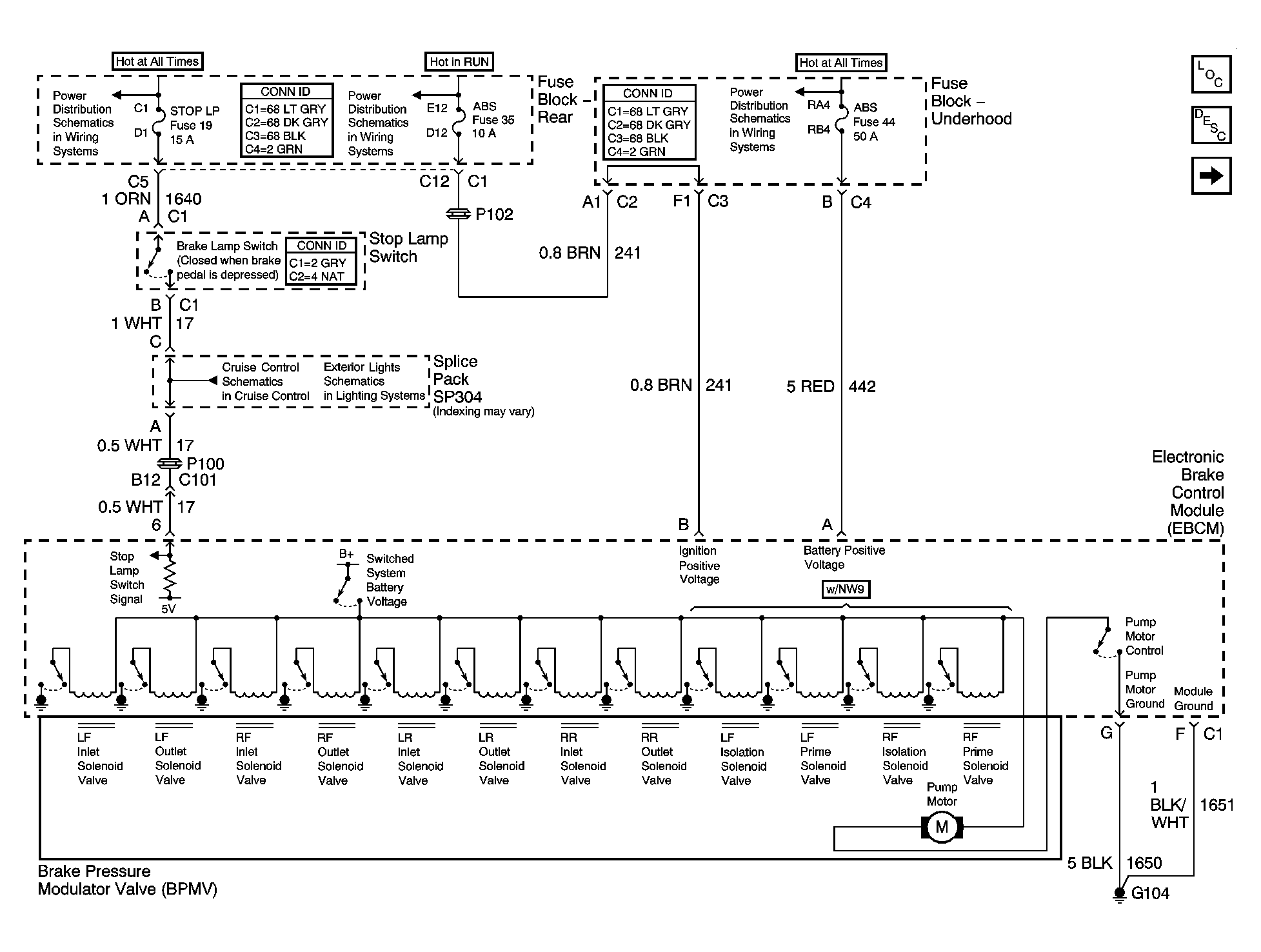

Fig 1: PWR, GND, Stop Lamp Switch, Solenoid Valves, and Pump Motor Schematic

Courtesy of GENERAL MOTORS CORP.

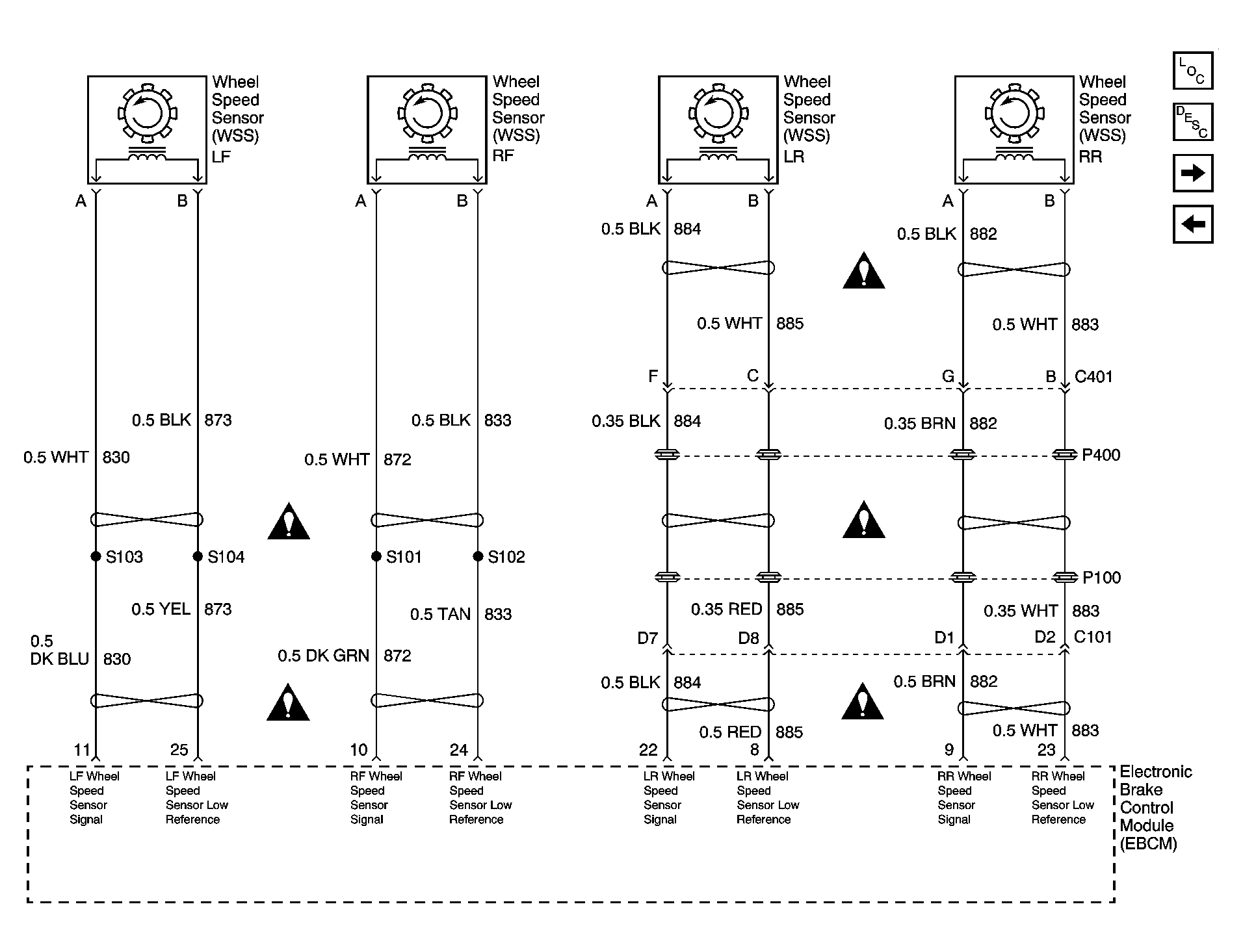

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

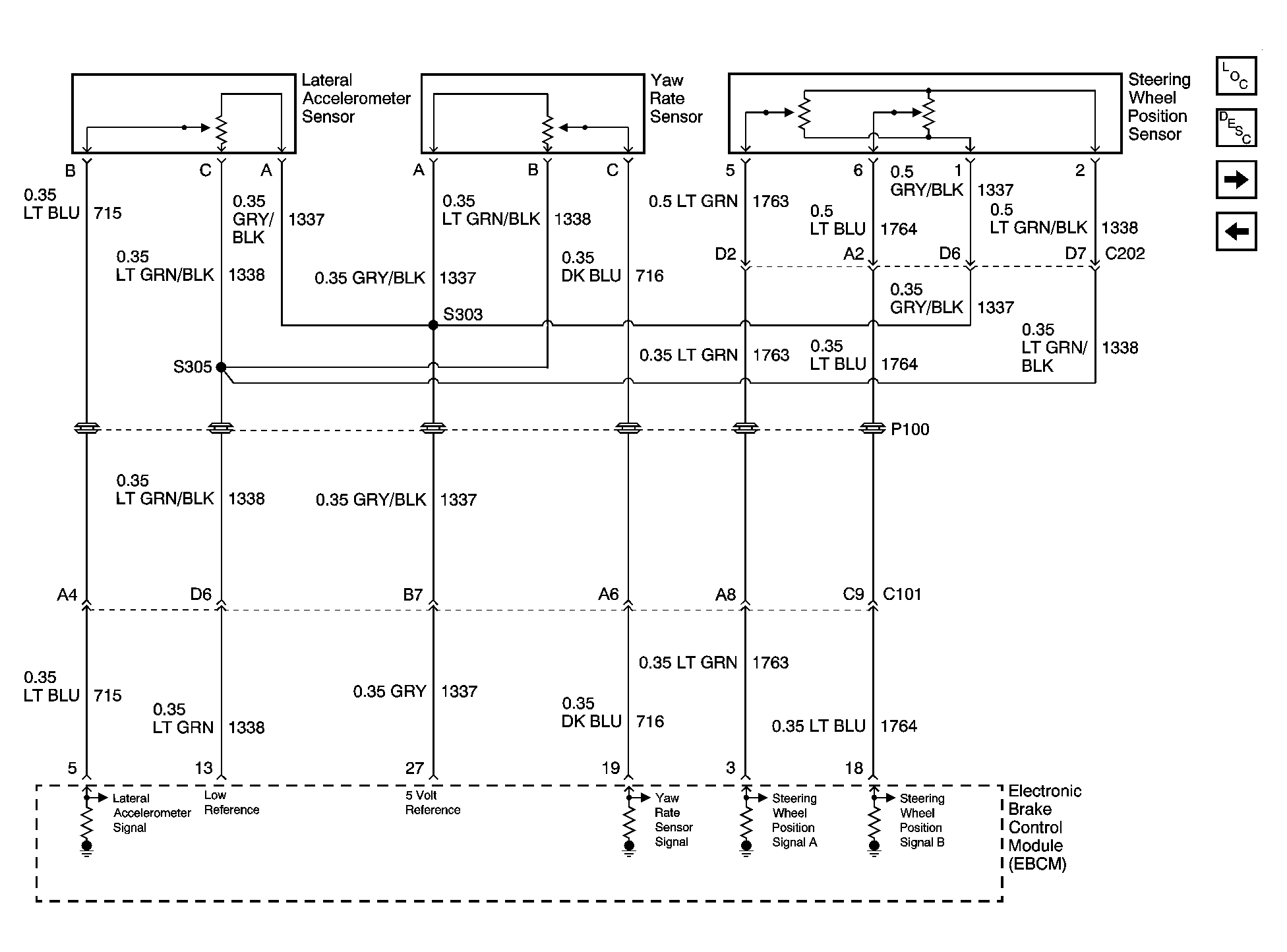

Fig 3: Vehicle Stability Enhancement System (w/JL4) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Traction Control (w/NW9) Schematic

Courtesy of GENERAL MOTORS CORP.

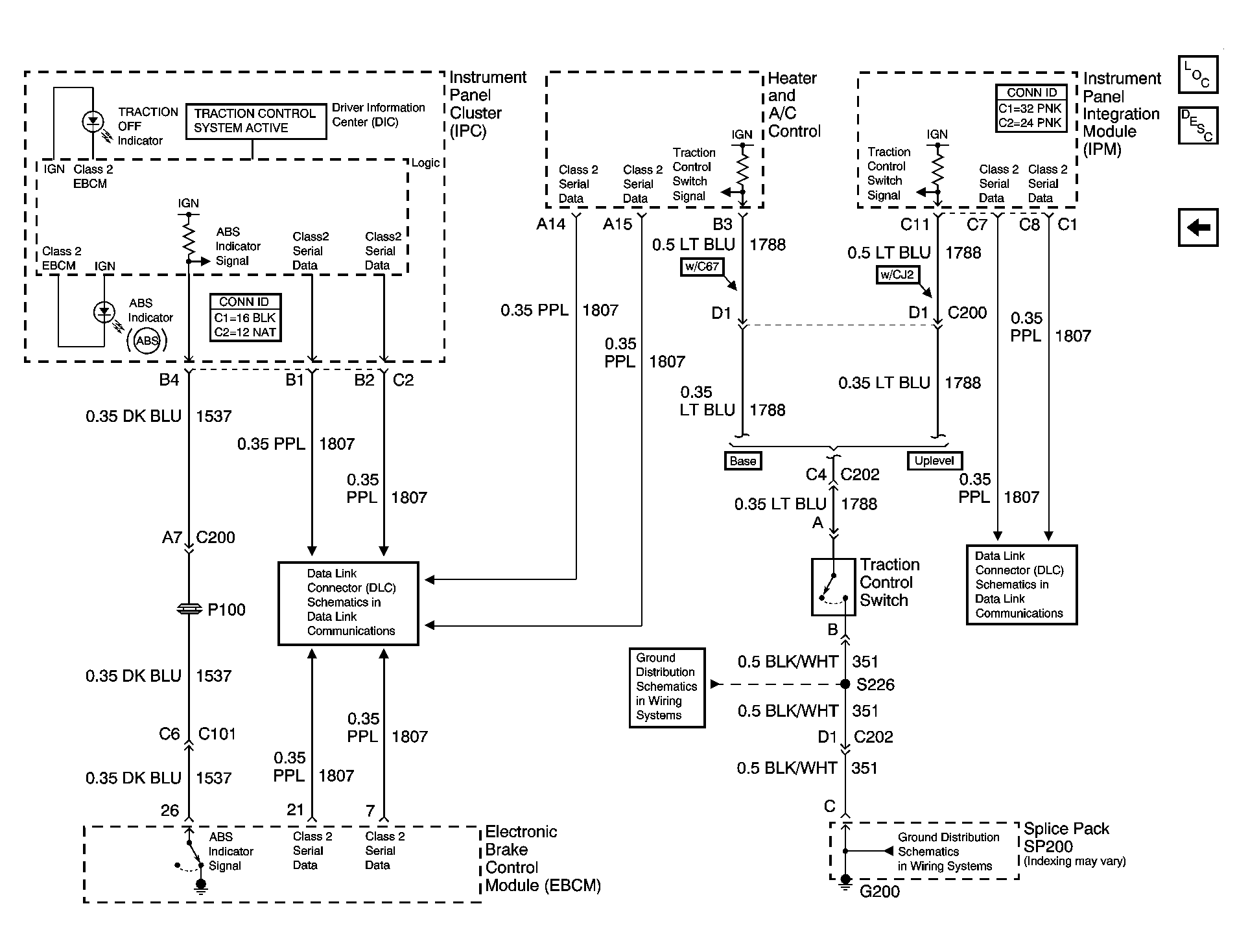

Fig 5: Indicators and Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.
