Defogger Schematics

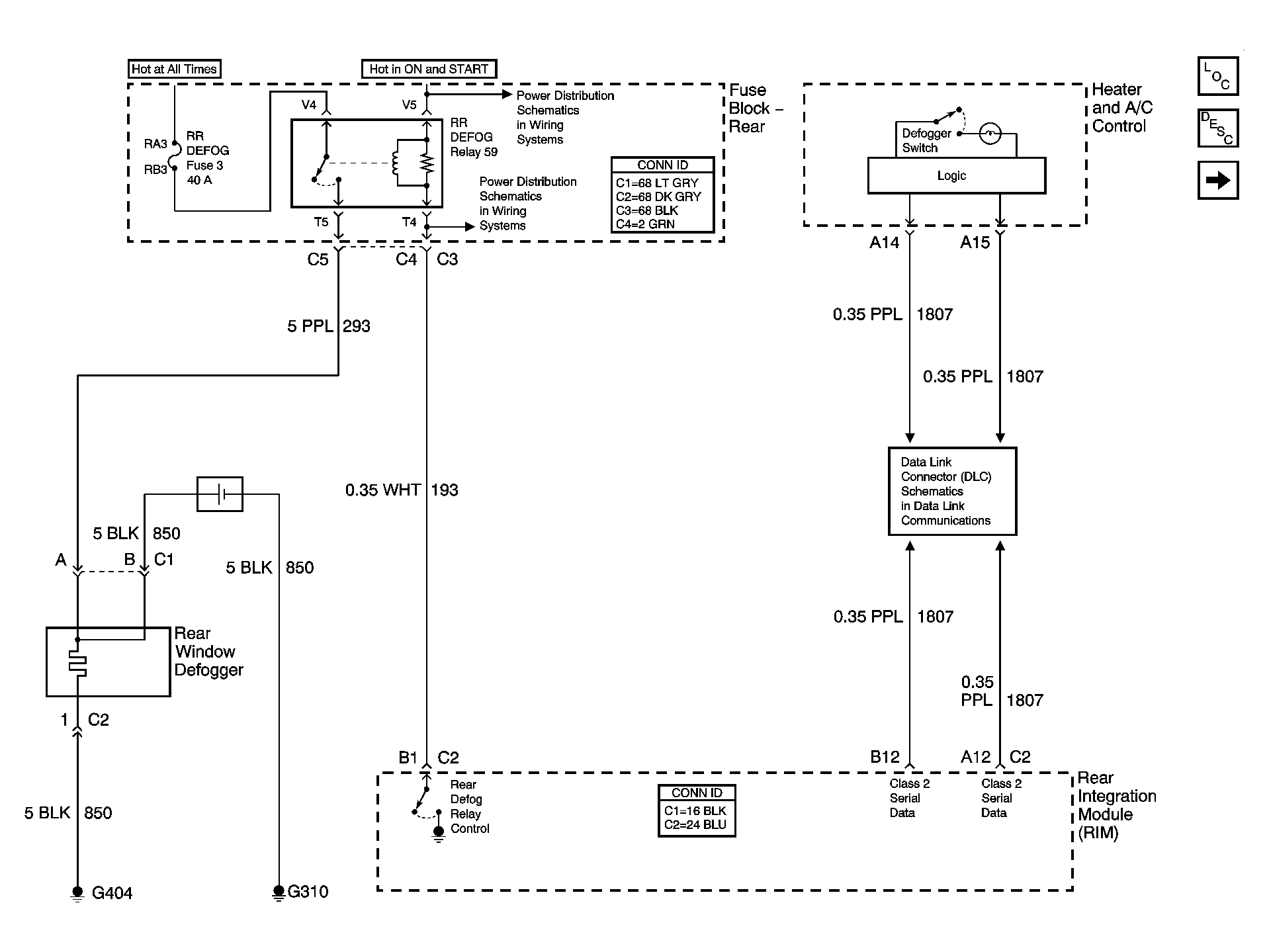

Fig 1: Rear Window Defogger Schematics

GM889549

Courtesy of GENERAL MOTORS CORP.

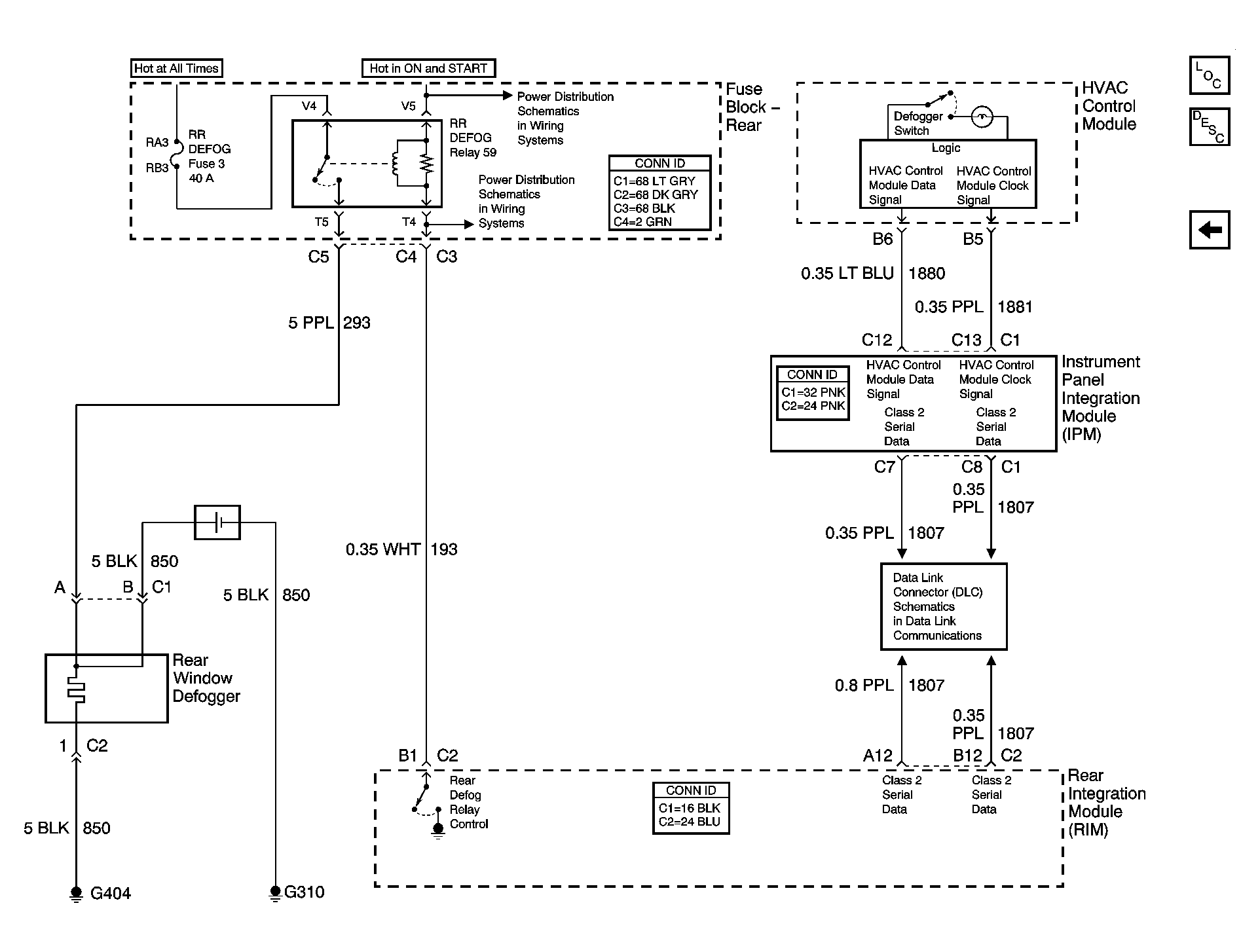

Fig 2: Defogger Schematics (w/CJ2) Schematics

GM889112

Courtesy of GENERAL MOTORS CORP.
