Removal Procedure

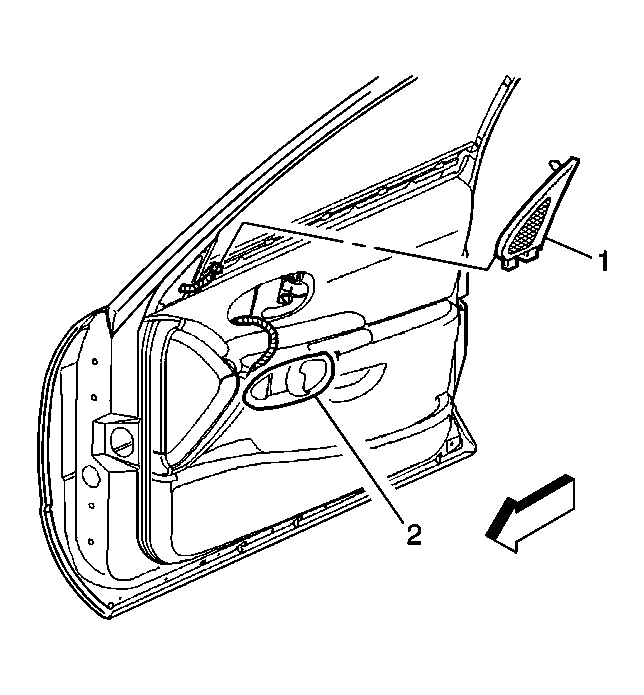

    Fig 1: View of Upper Door Trim Panel and Door Reflector Opening
    GM441757Courtesy of GENERAL MOTORS CORP.
  1. Remove the upper door trim panel (1).
    1. Use the J 38778 in order to pry out the retainer at the top of the upper door trim panel.
    2. Lift the upper door trim panel up in order to remove.
    3. Disconnect the wire harness from the tweeter.

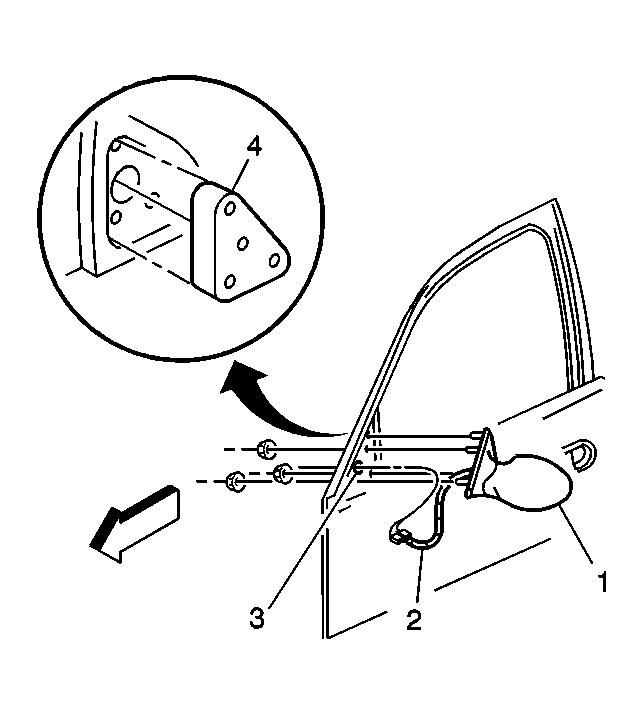

    2. Fig 2: View of Mirror, Power Window Wire Harness Electrical Connector, Mirror Patch Hole & Insulator
    GM470114Courtesy of GENERAL MOTORS CORP.
  2. Remove the insulator (4).
  3. Remove the door trim panel in order to gain access to the power mirror wire harness connector (2). Refer to Trim Panel Replacement - Side Front Door .
  4. Disconnect the power mirror wire harness electrical connector (2).
  5. Disconnect the wire harness from the retainer clips.
  6. Remove the mirror fasteners.
  7. Remove the mirror (1) from the door.
  8. Pull the wiring harness through the hole (3) in the mirror patch.
