Removal Procedure

  1. Open the door.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door  or Trim Panel Replacement - Side Rear Door .
  3. Remove the door module. Refer to Door Control Module Replacement .
  4. Remove the water deflector. Refer to Water Deflector Replacement - Front Door  or Water Deflector Replacement - Rear Door .
  5. Remove the check link to pillar fasteners.
    Fig 1: View of Door Check Link Fasteners
    GM441765Courtesy of GENERAL MOTORS CORP.

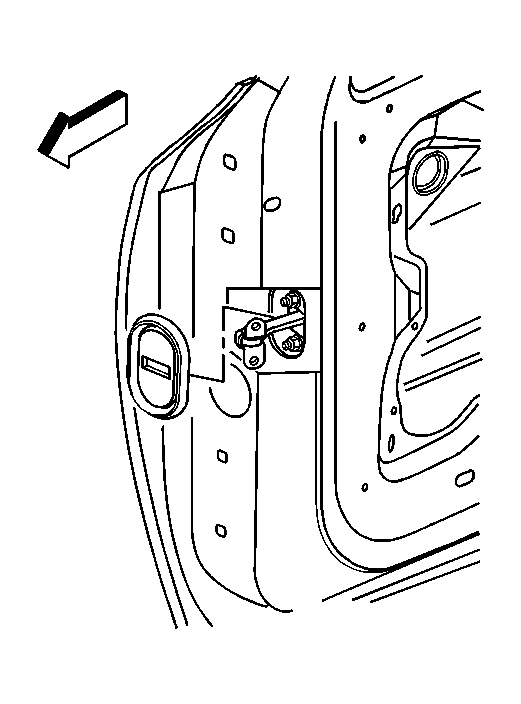

    6. Fig 2: View of Close-Out Grommet
    GM428665Courtesy of GENERAL MOTORS CORP.
  6. Remove the close-out grommet.
    7. Fig 3: View of Check Link Door Fasteners
    GM441767Courtesy of GENERAL MOTORS CORP.
  7. Remove the check link to door fasteners.
  8. Remove the door check link through the inside of the door.
