Installation Procedure

    Fig 1: View of Sunroof Control Module
    GM107180Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors to the sunroof control module.
    2. Fig 2: View of Sunroof Control Module Tabs, Sunroof Module Assembly Slots & Sunroof Control Module
    GM468361Courtesy of GENERAL MOTORS CORP.
  2. Install the sunroof control module tabs (2) into the sunroof module assembly slots (3) located on the sunroof module assembly.
  3. Slide the sunroof control module (1) away from the sunroof motor/actuator until the sunroof control module is fully engaged to the sunroof module assembly.
    4. IMPORTANT: Test the proper operation of the sunroof functions before installing the interior trim components.
  4. Reposition the headliner to the center and rearward roof magnets.

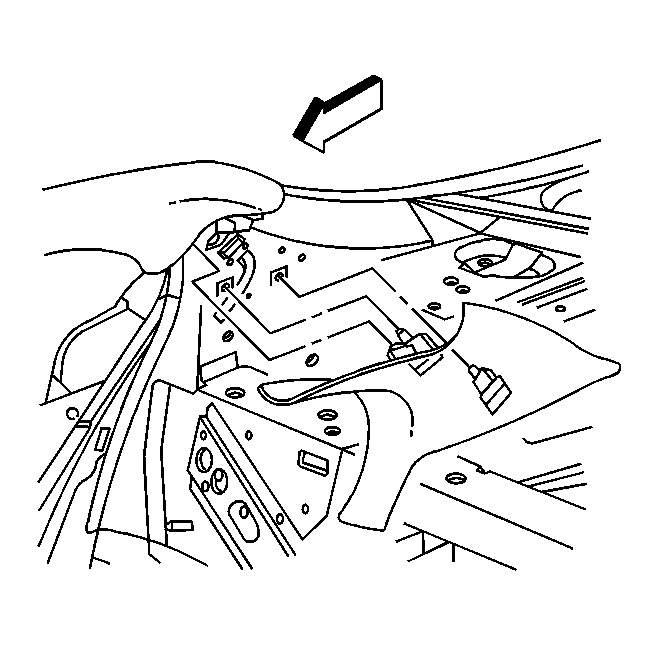

    5. Fig 3: View of Passenger Side Rear Sail Panel
    GM430294Courtesy of GENERAL MOTORS CORP.
  5. Install the passenger side sail panel. Refer to Trim Panel Replacement - Rear Quarter Upper in Interior Trim.
    6. Fig 4: Locating Rear Seat Back Anchor Bolts
    GM106073Courtesy of GENERAL MOTORS CORP.
  6. Install the rear seat back. Refer to Seat Back Replacement - Rear in Seats.

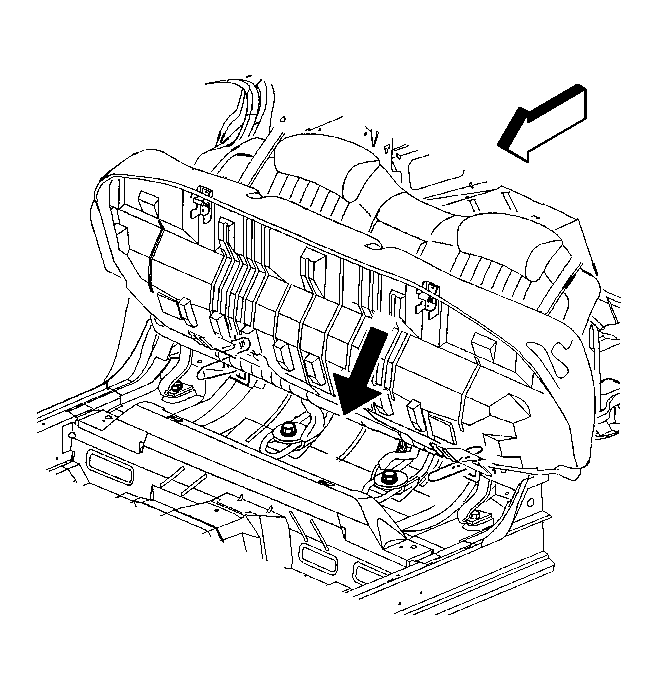

    7. Fig 5: View of Rear Seat Cushion
    GM430401Courtesy of GENERAL MOTORS CORP.
  7. Install the rear seat cushion. Refer Seat Cushion Replacement - Rear to in Seats.

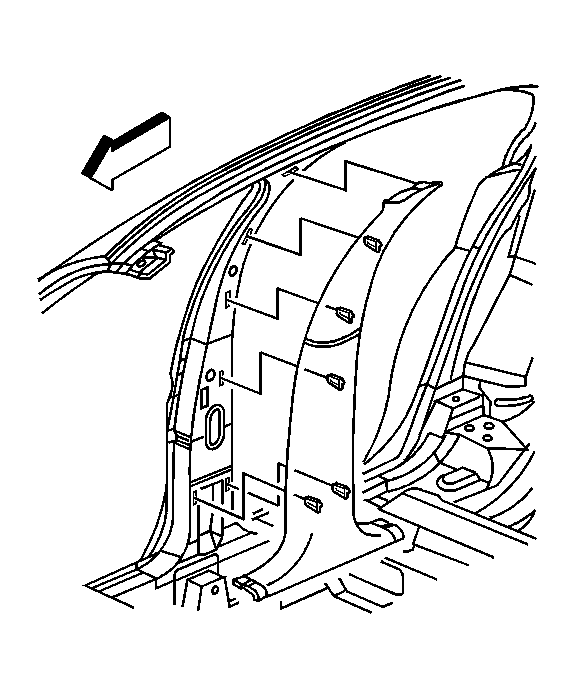

    8. Fig 6: View of Upper Center Trim Panel Retainer
    GM430287Courtesy of GENERAL MOTORS CORP.
  8. Align the upper center trim panel retainer, push inward in order to secure.
  9. Reposition the passenger rear door opening weatherstrip.

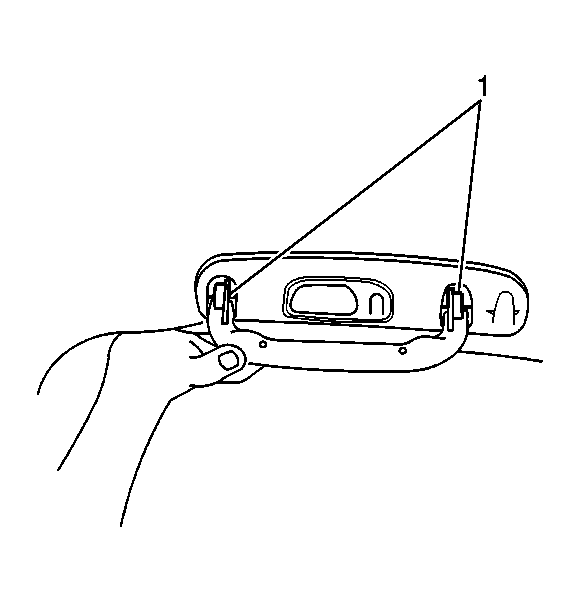

    10. Fig 7: View of Passenger Side Rear Assist Handle
    GM548605Courtesy of GENERAL MOTORS CORP.
  10. Install the passenger side rear assist handle (1). Refer to Assist Handle and Rear Coat Hook Replacement in Interior Trim.
  11. Close the passenger rear door.
