Installation Procedure

  1. Position the bracket in the vehicle.

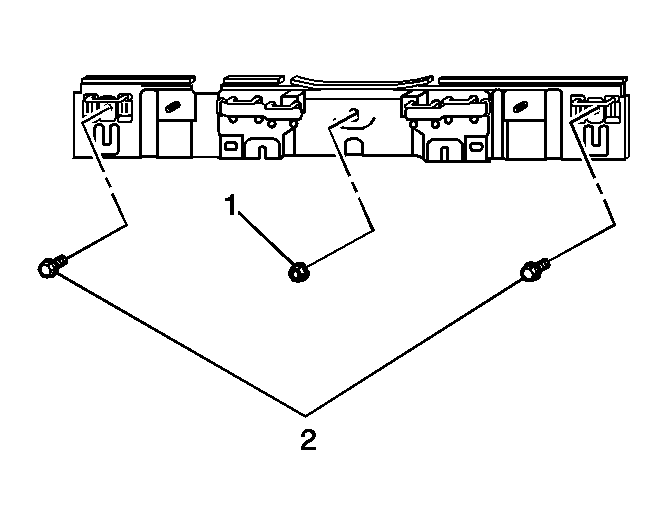

    2. Fig 1: View Of Child Seat Belt Restraint System Bracket
    GM782304Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Apply a thread sealant, GM P/N USA 12345382 Canada 10953489, Loctite 242, Permatex 24200 to the threads of the bolts (2) and also the stud for the bracket nut (1).
  3. Install the bolts (2) to each end of the bracket.

    Tighten:  Tighten the child seat latch bracket bolts to 42 N.m (31 lb ft).

  4. Install the bracket nut (1) between the center seat belts.

    Tighten:  Tighten the child seat latch bracket nut to 42 N.m (31 lb ft).

  5. Install the rear center seat belts. Refer to Seat Belt Replacement - Center Rear .
  6. Install the rear seat back. Refer to Seat Back Replacement - Rear (Non-folding) or Seat Back Replacement - Rear (Folding) in Seats.
