Removal Procedure

  1. Remove the outside mirror. Refer to Mirror Replacement - Remote  or Mirror Replacement - Power .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door inner sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  4. Remove the front door outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer - Front .
  5. Remove the front door window. Refer to Window Replacement - Front Door .

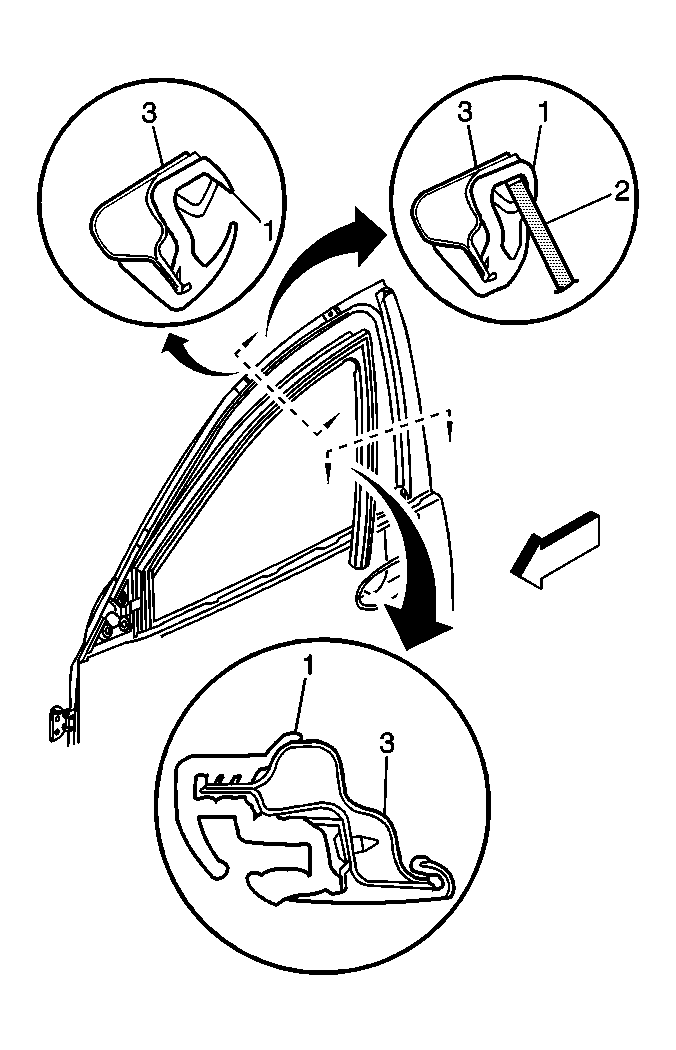

    6. Fig 1: Front Door Window Weatherstrip
    GM315708Courtesy of GENERAL MOTORS CORP.
  6. Remove the front door window weatherstrip from the front door.
