Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door radio speaker. Refer to Speaker Replacement - Front Door .
  3. Disconnect the power mirror electrical connector.

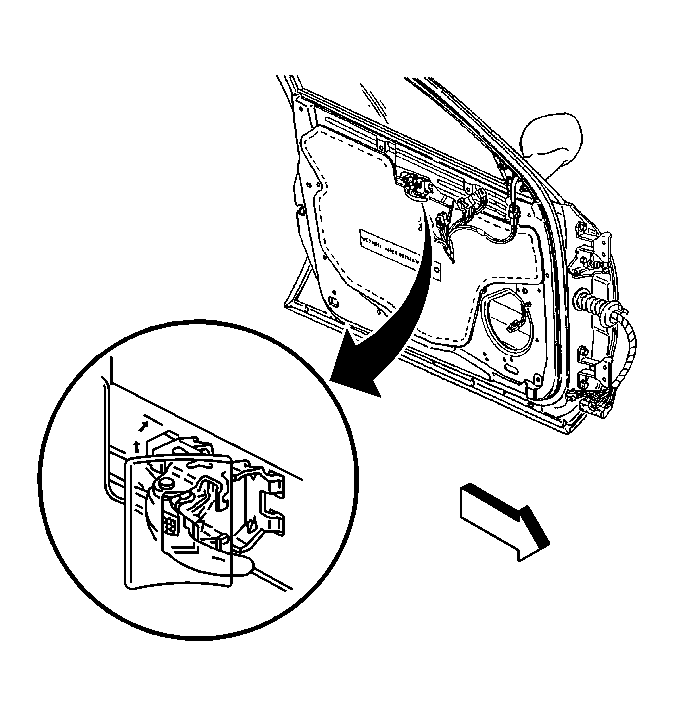

    4. Fig 1: Front Door Water Deflector
    GM315723Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door water deflector from the front door.
