Seat Belt Connector End Views
Seat Belt Connector End Views

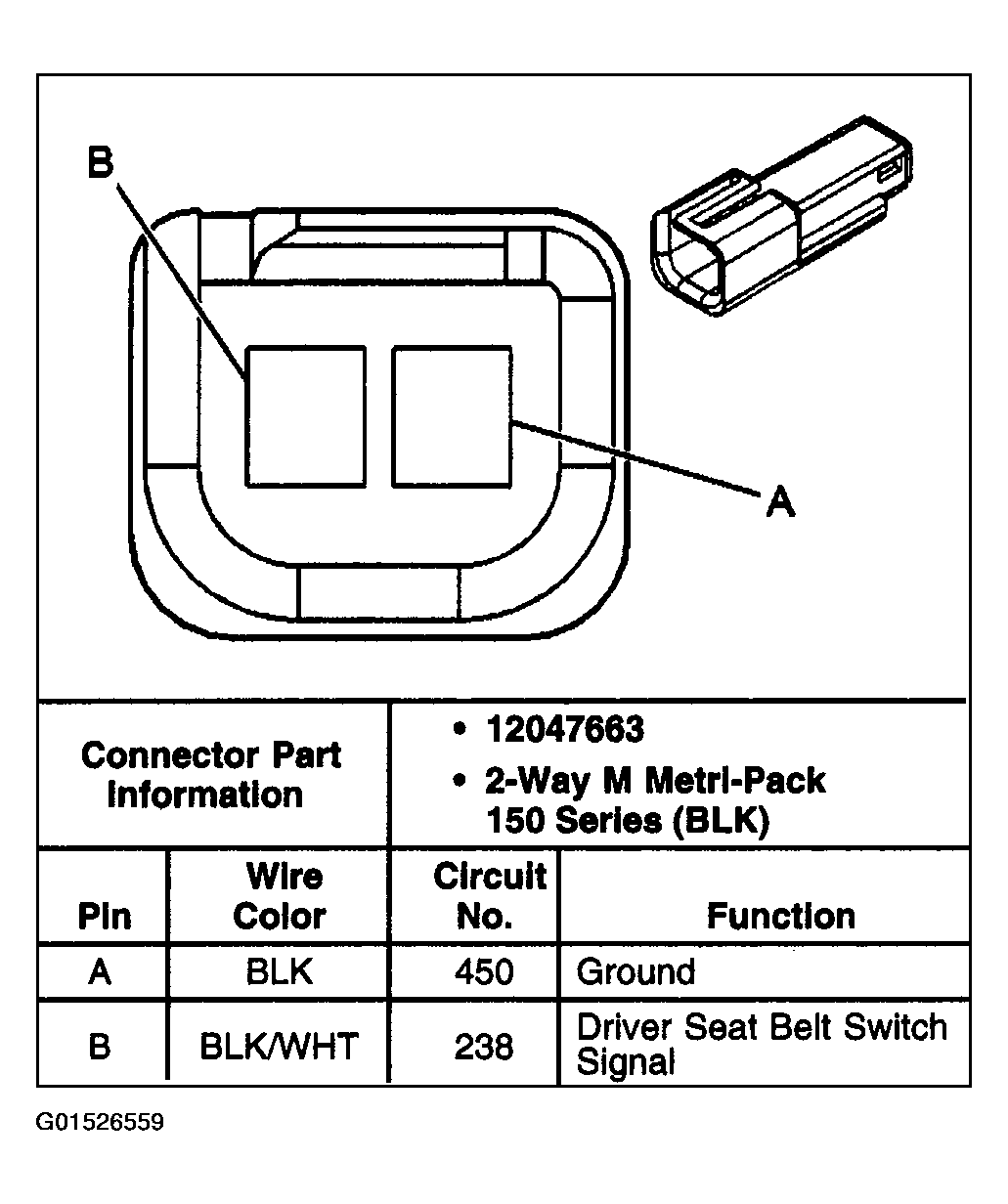

Fig 1: Identifying Seat Belt Connector End (Seat Belt Switch - LF)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
