Scan Tool Output Controls

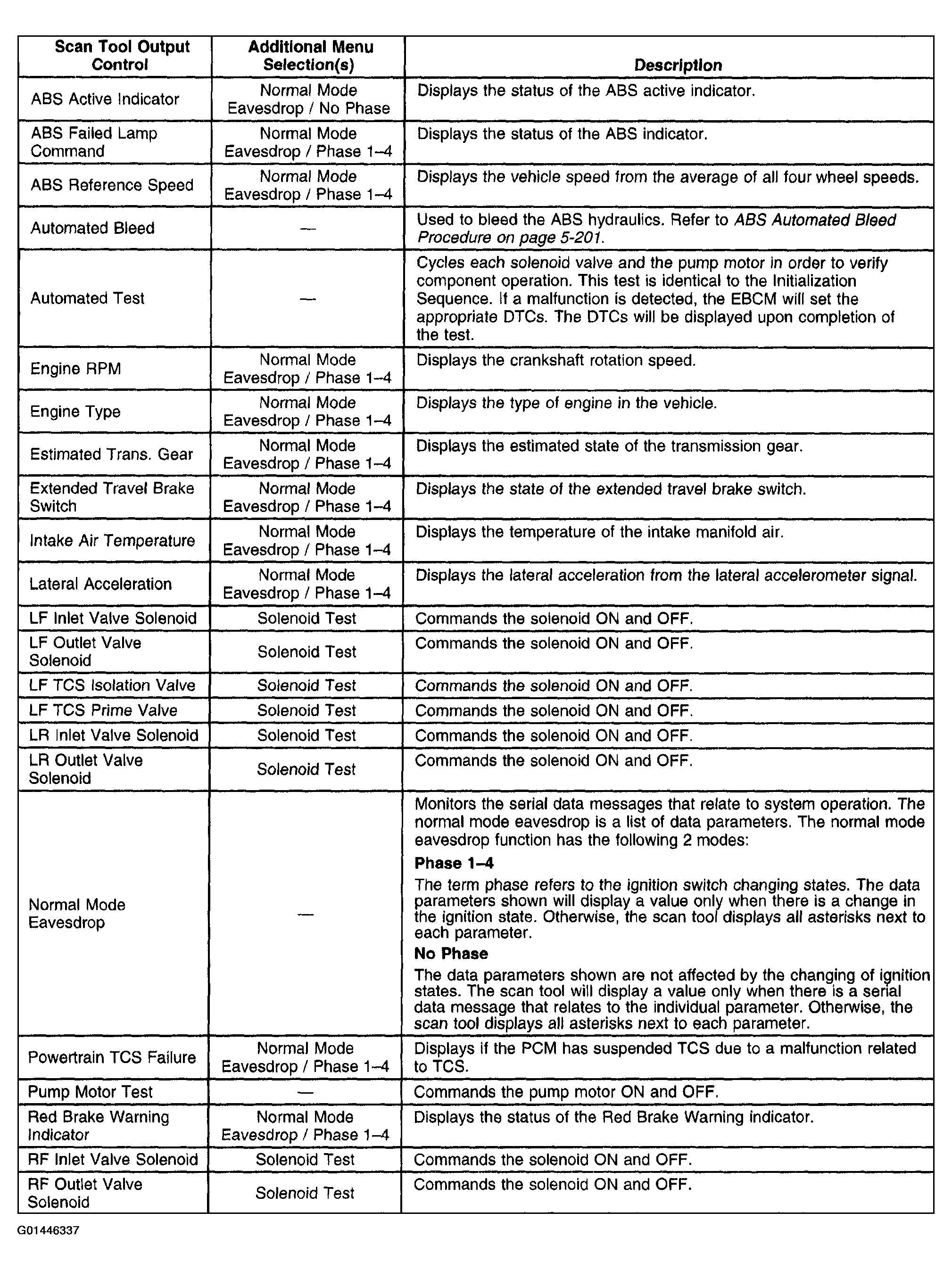

Fig 1: Electronic Brake Control Module (EBCM) (1 Of 2)

G01446337

Courtesy of GENERAL MOTORS CORP.

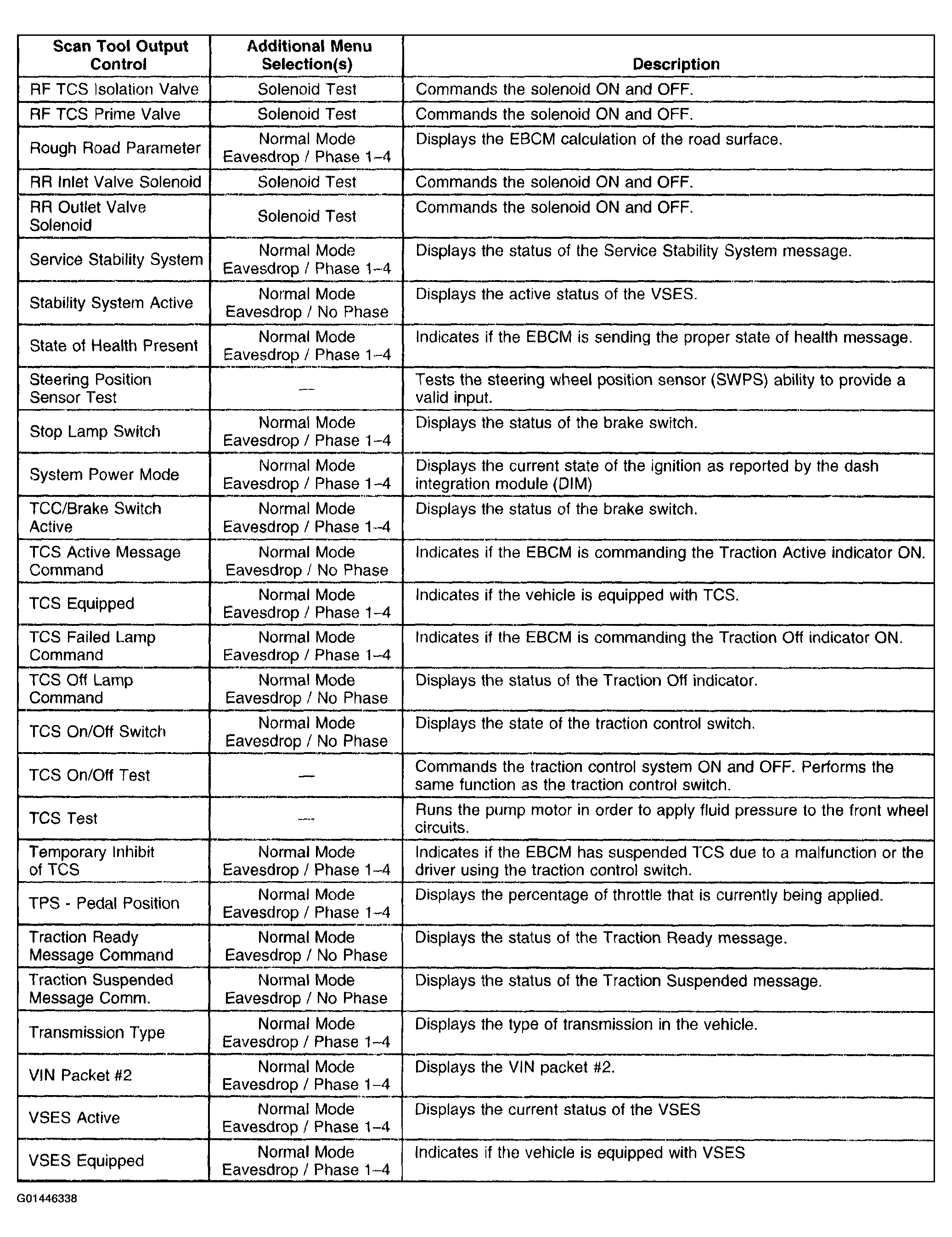

Fig 2: Electronic Brake Control Module (EBCM) (2 Of 2)

G01446338

Courtesy of GENERAL MOTORS CORP.
