Home >> Buick >> 2003 >> Park Avenue Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Power Door Lock Switch Replacement >> Removal Procedure

Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Disconnect the electrical connector.
  3. Spread the locking tabs (1) at the top and bottom of the switch plate (2).
  4. Lift the switch out in order to remove.

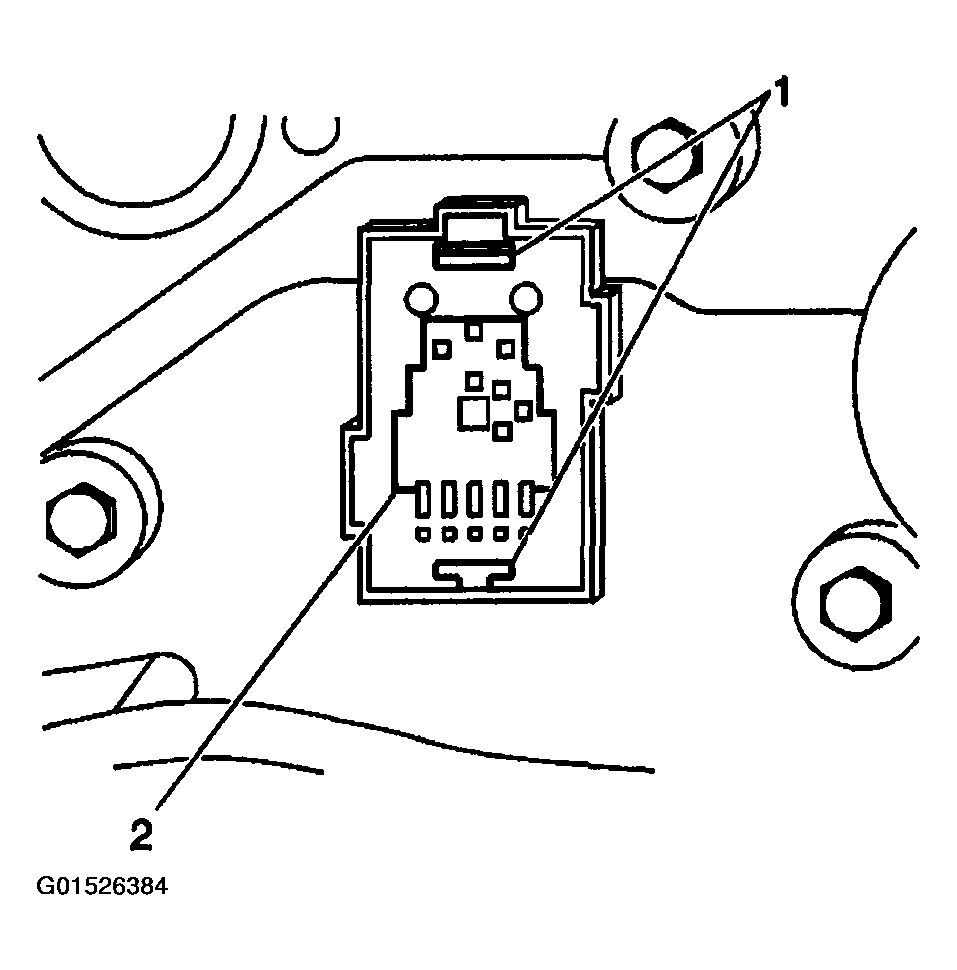

    Fig 1: Identifying Switch Plate Locking Tabs
    G01526384Courtesy of GENERAL MOTORS CORP.
