Installation Procedure

  1. Position the armrest bracket (1) in place.

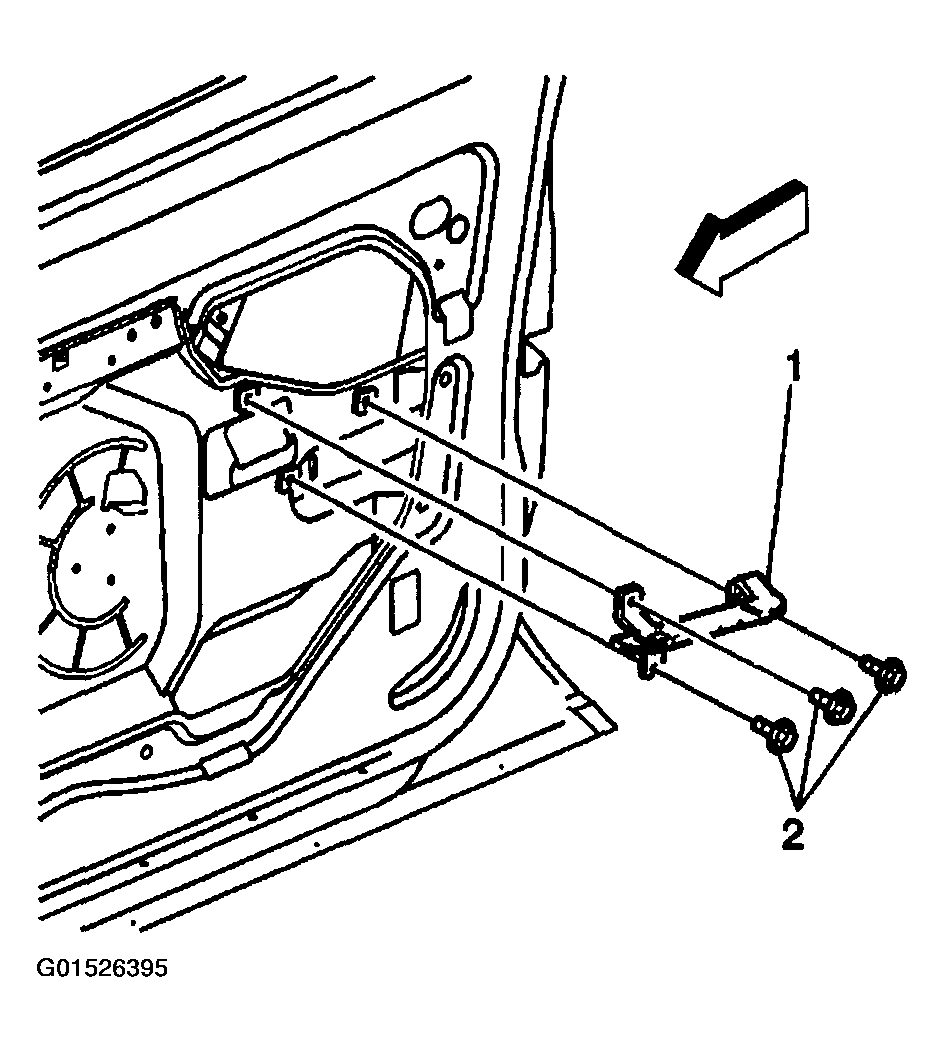

    Fig 1: Installing Armrest Bracket
    G01526395Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the armrest bracket bolts (2).

    Tighten

    Tighten the door armrest bracket bolts to 9 N.m (80 lb in).

  3. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
