Scan Tool Output Controls

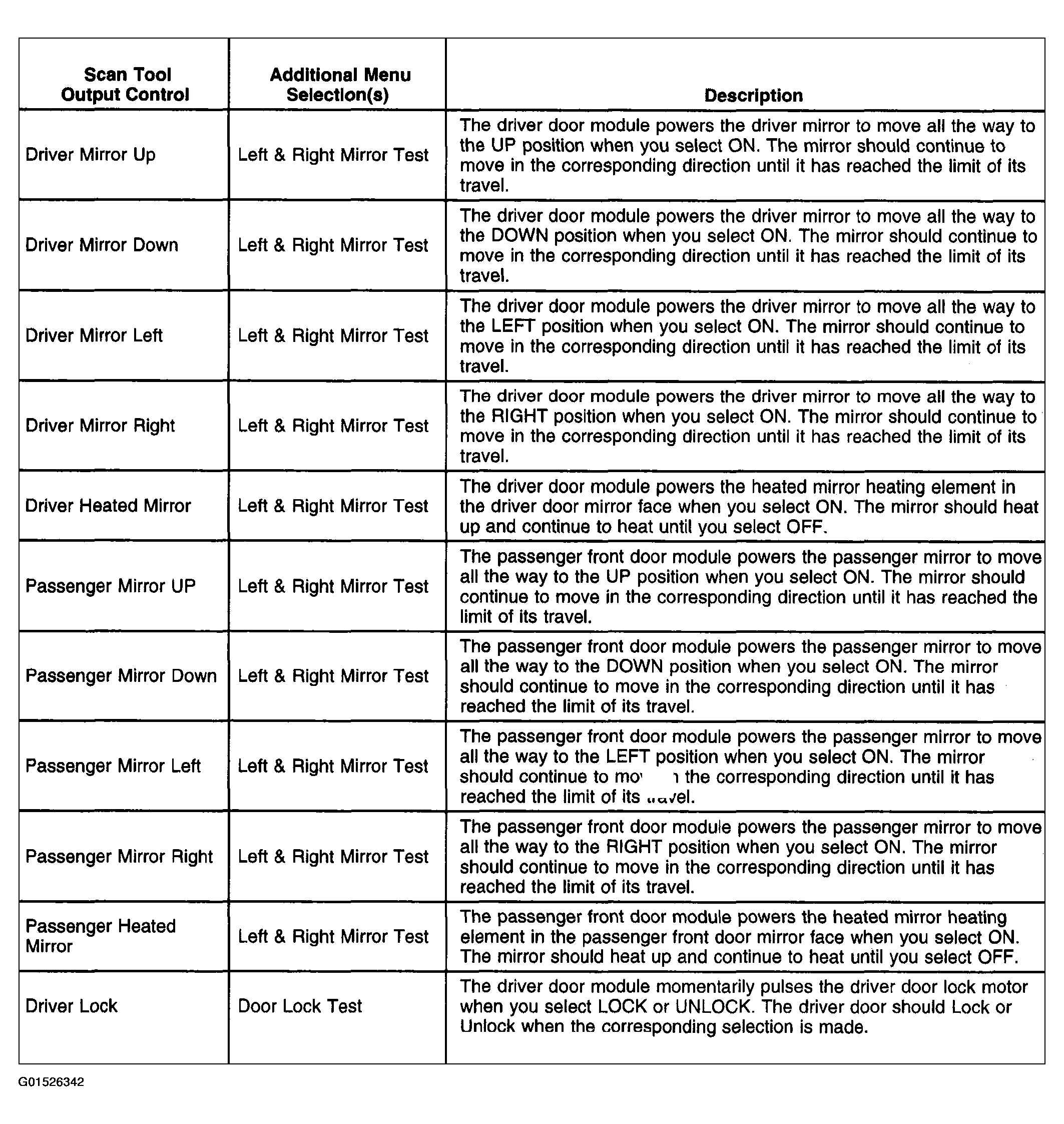

Fig 1: Scan Tool Output Controls Description (1 Of 2)

G01526342

Courtesy of GENERAL MOTORS CORP.

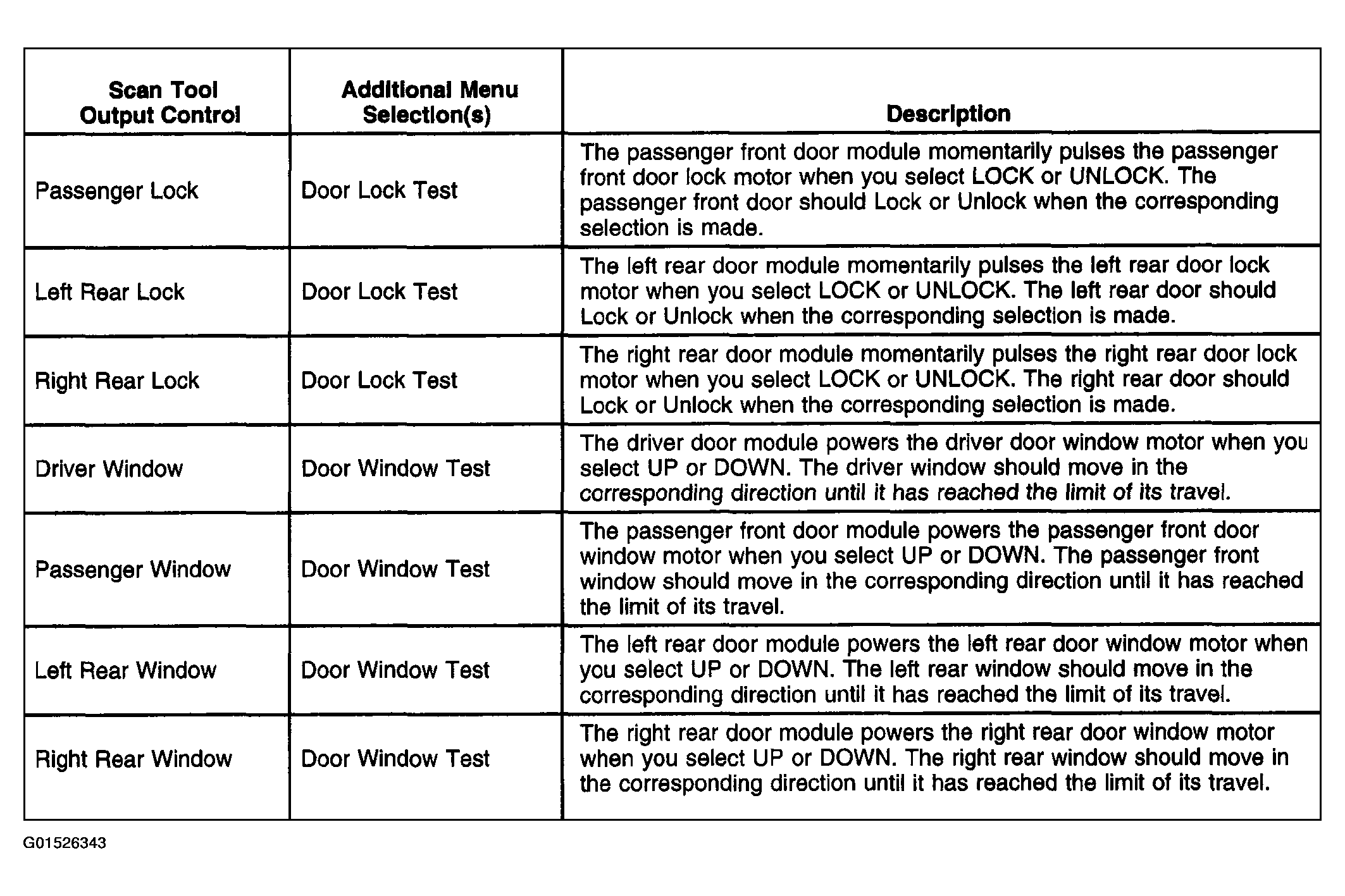

Fig 2: Scan Tool Output Controls Description (2 Of 2)

G01526343

Courtesy of GENERAL MOTORS CORP.
