Keyless Entry Schematics

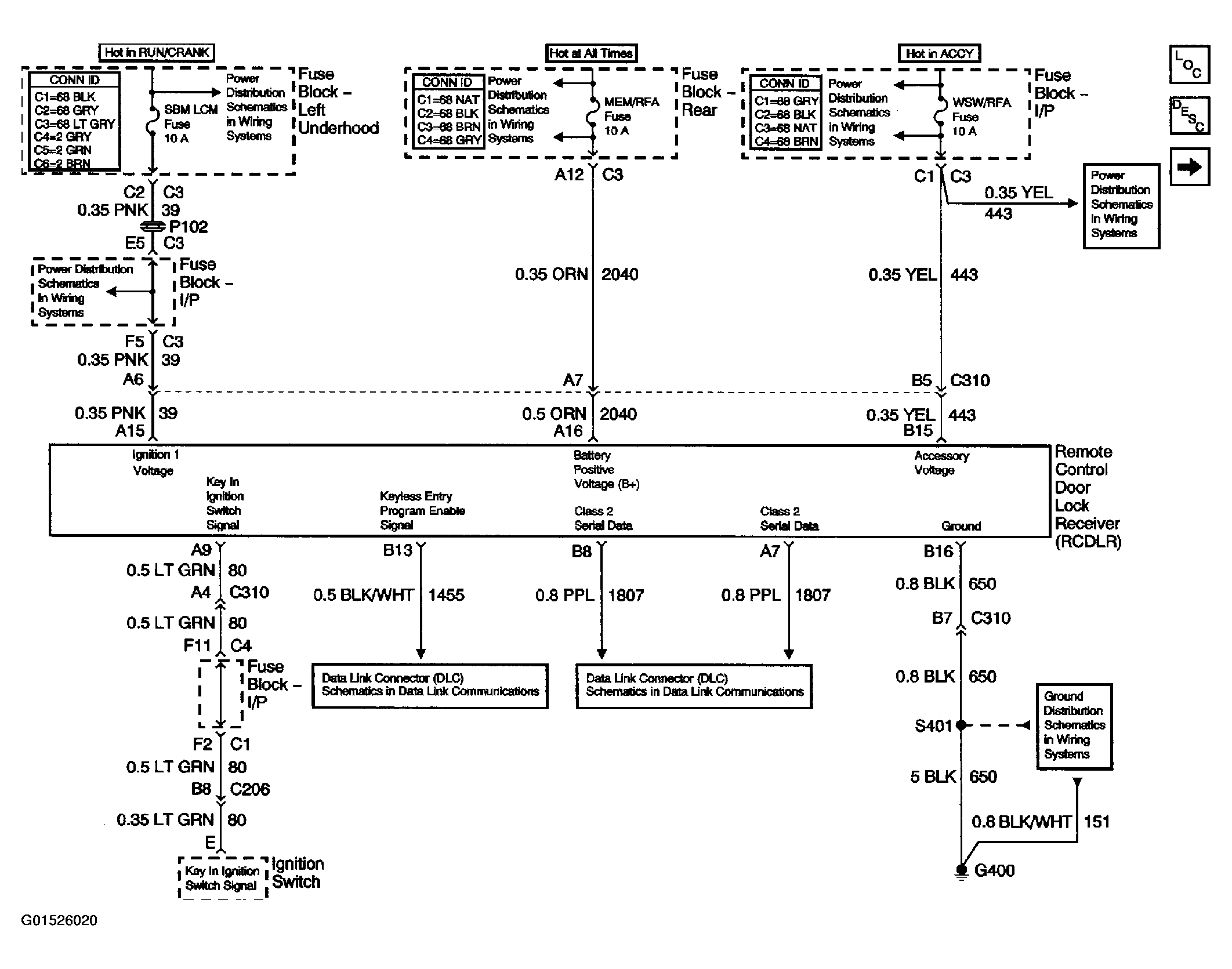

Fig 1: RCDLR Power, Ground And DLC

G01526020

Courtesy of GENERAL MOTORS CORP.

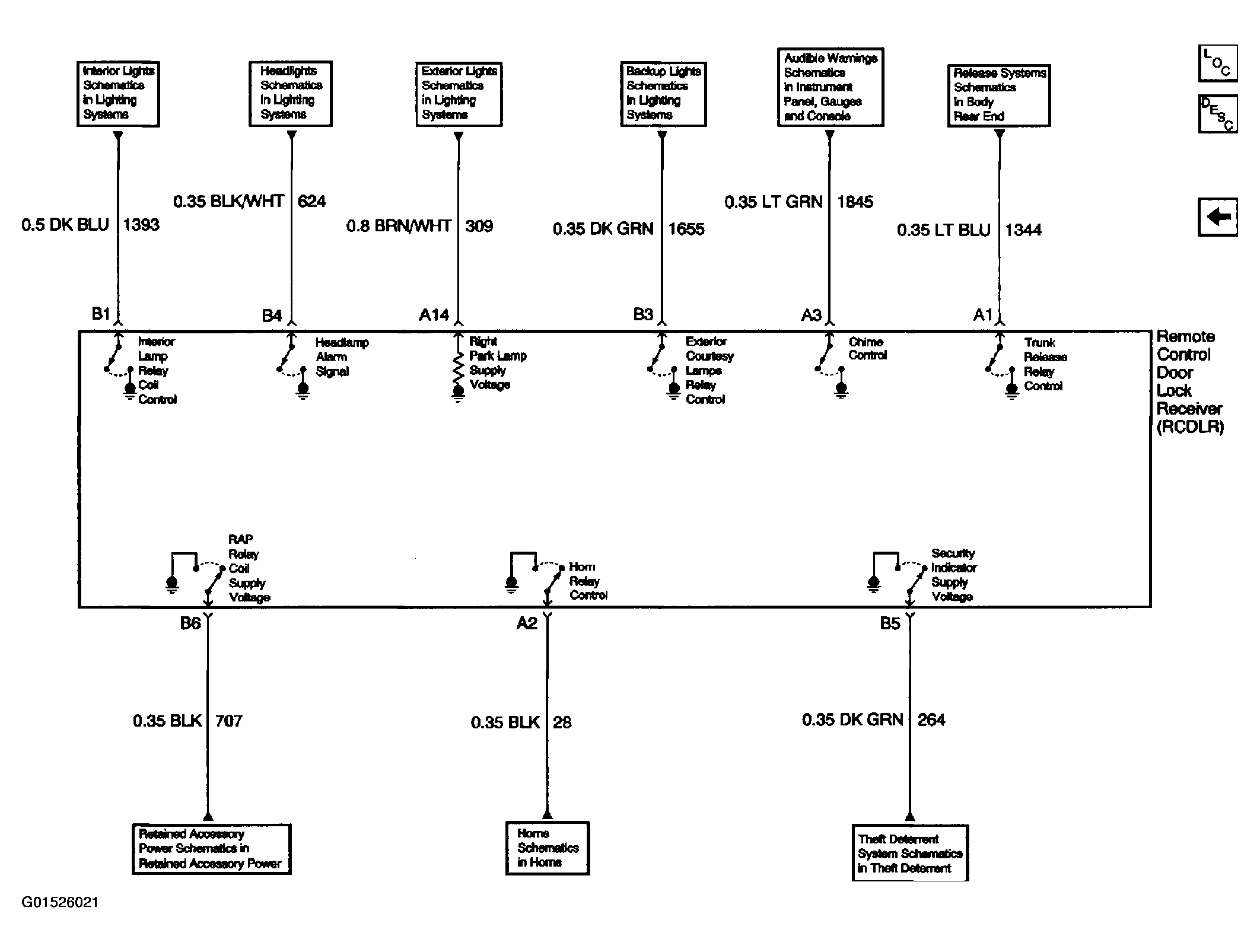

Fig 2: RCDLR Inputs And Outputs

G01526021

Courtesy of GENERAL MOTORS CORP.
