Turn Signal/Hazard Flasher Module Connector End View (2 Of 2)

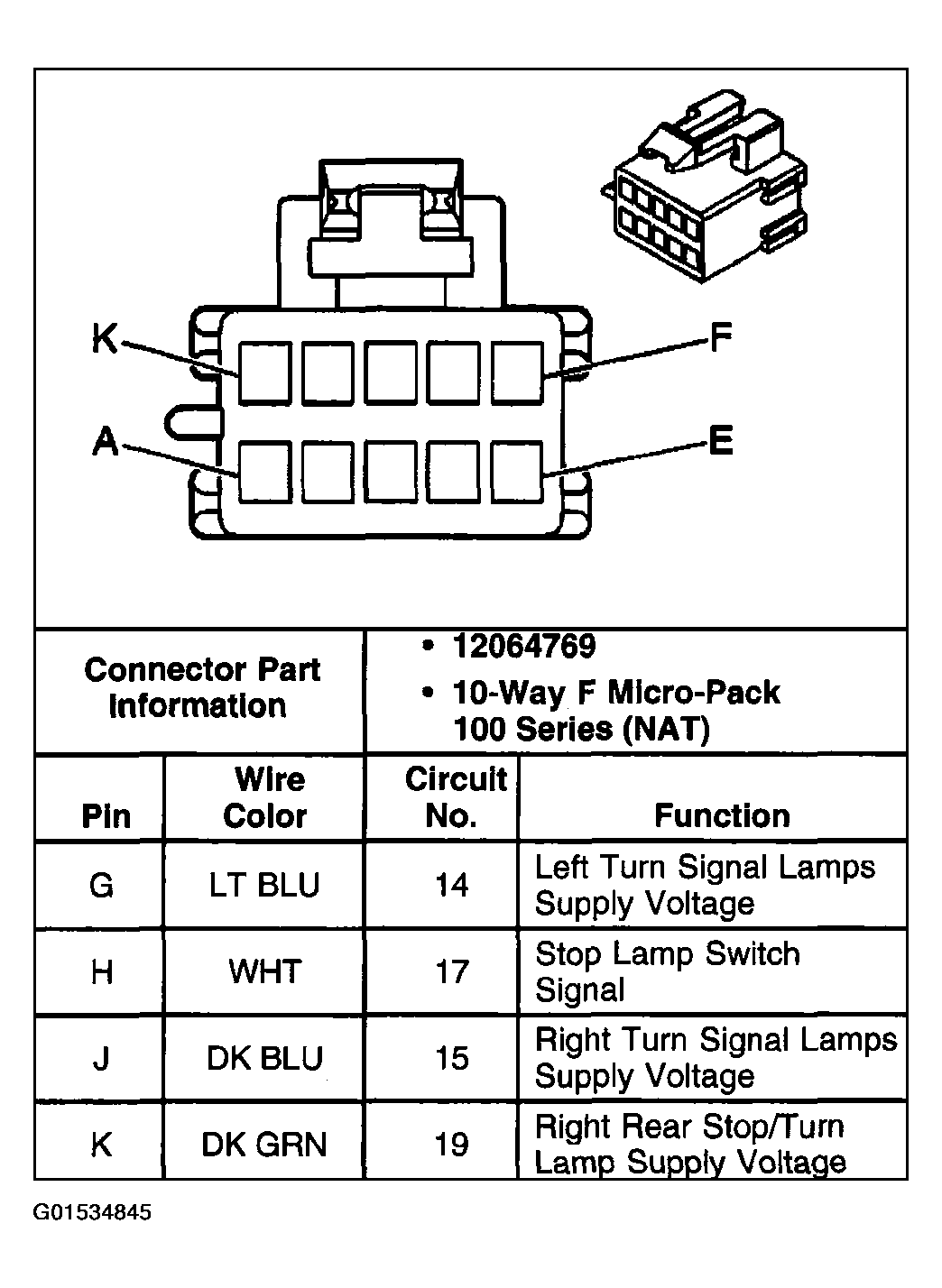

Fig 1: Turn Signal/Hazard Flasher Module (2 Of 2)

G01534845

Courtesy of GENERAL MOTORS CORP.
