Turn Signal/Hazard Flasher Module Connector End View (1 Of 2)

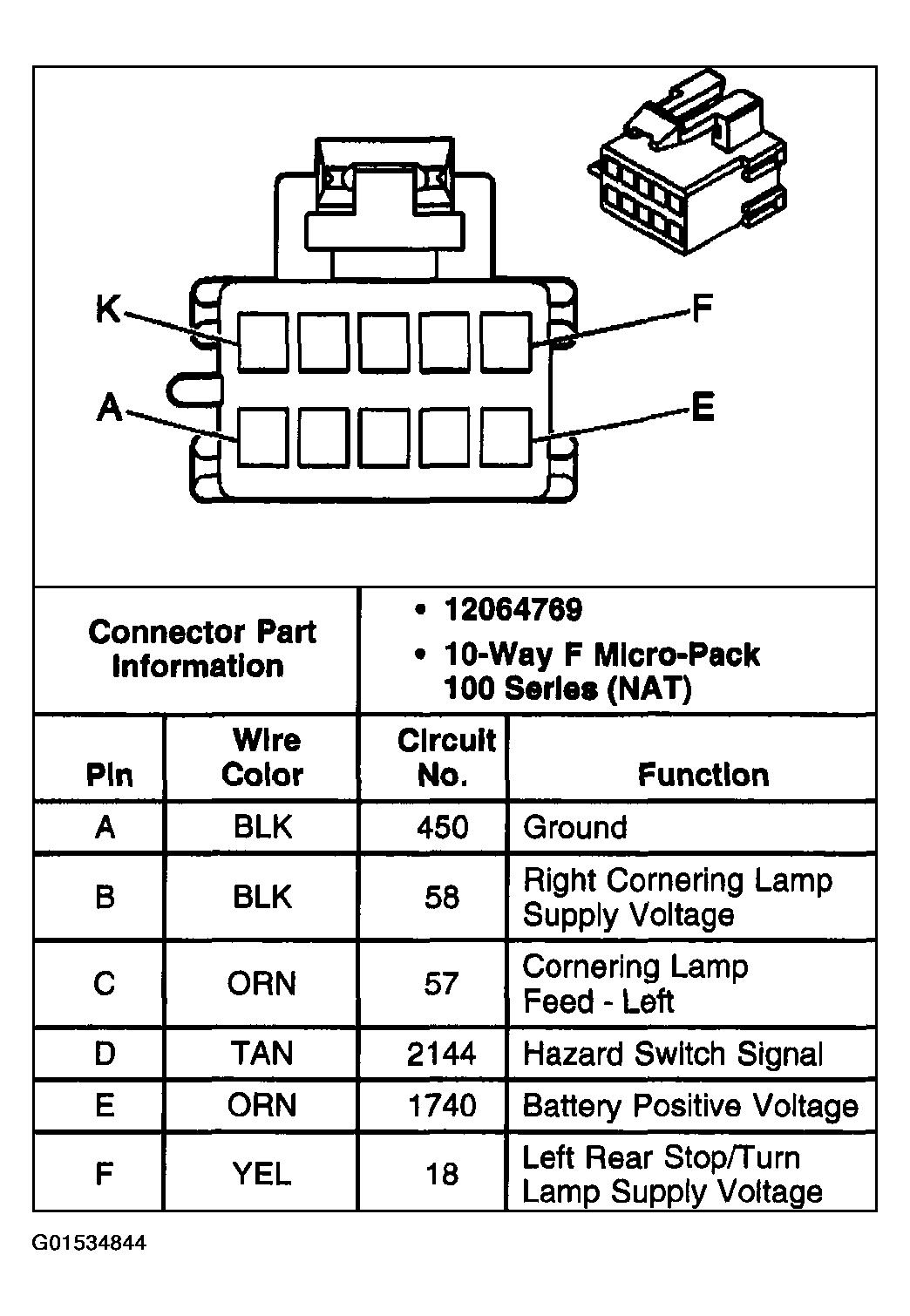

Fig 1: Turn Signal/Hazard Flasher Module (1 Of 2)

G01534844

Courtesy of GENERAL MOTORS CORP.
