Radio Antenna Module Connector End View

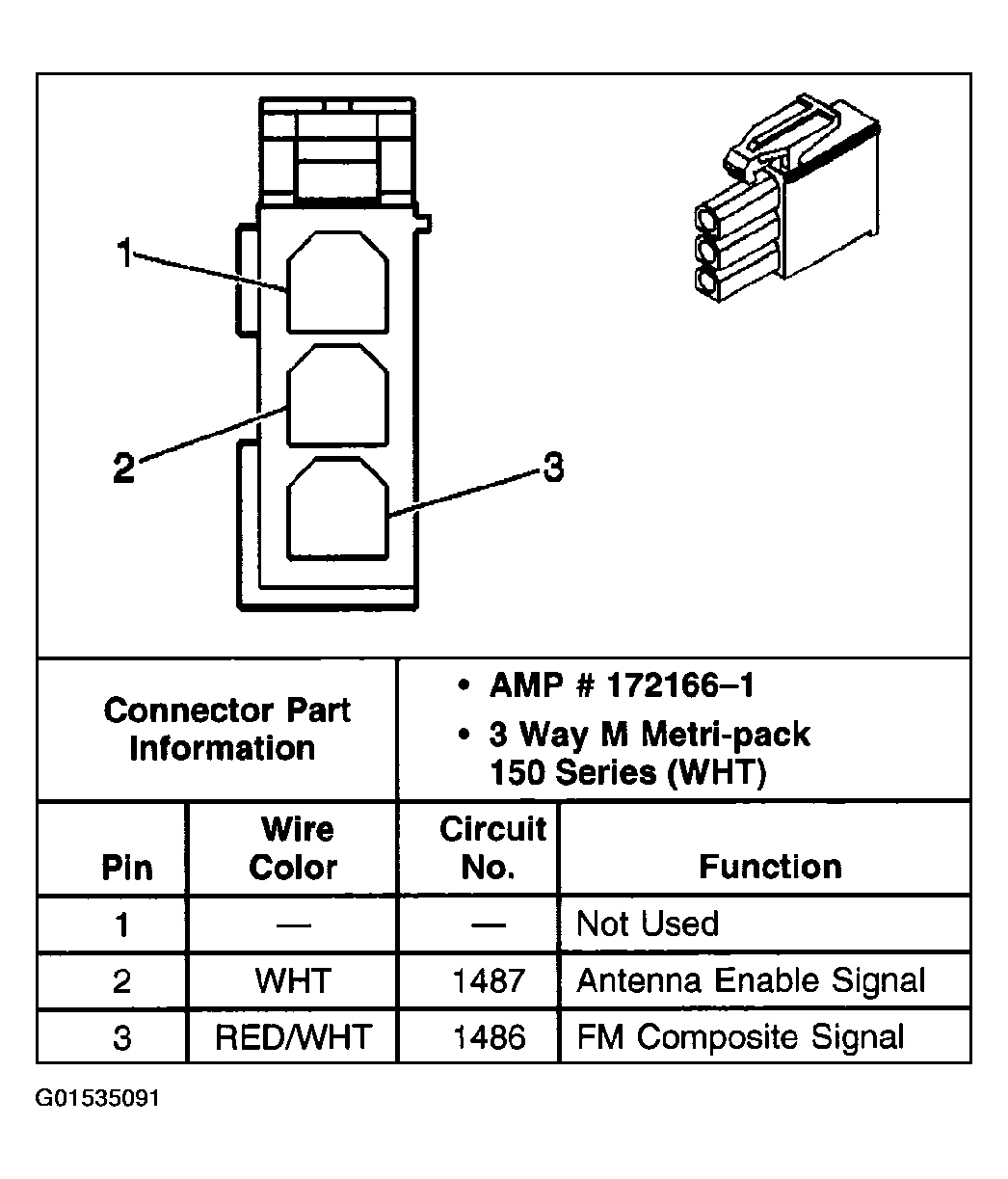

Fig 1: Radio Antenna Module

G01535091

Courtesy of GENERAL MOTORS CORP.
