Outside Moisture Sensor Connector End View

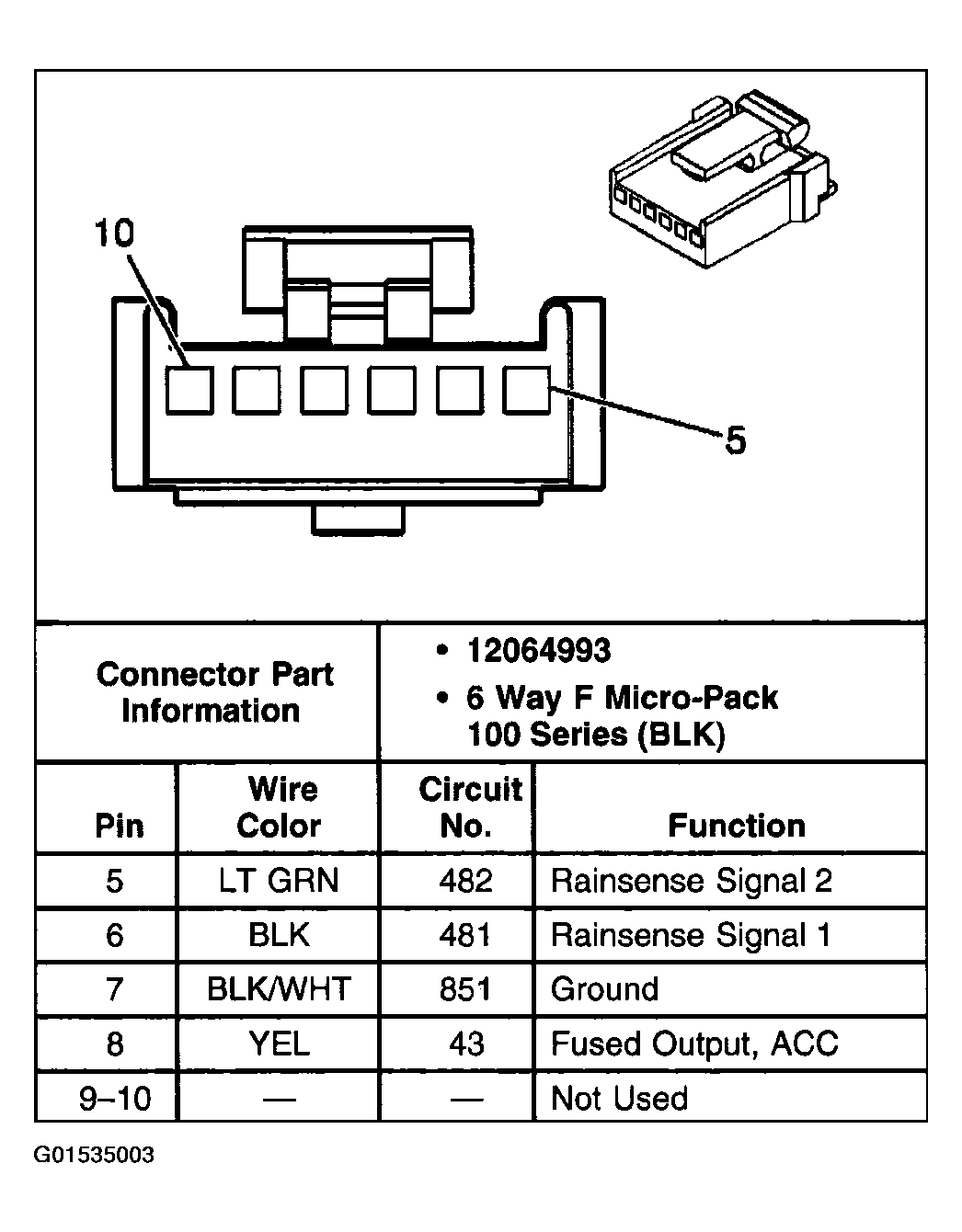

Fig 1: Outside Moisture Sensor

G01535003

Courtesy of GENERAL MOTORS CORP.
