Mode Actuator Connector End View

Fig 1: Mode Actuator

G01540621

Courtesy of GENERAL MOTORS CORP.

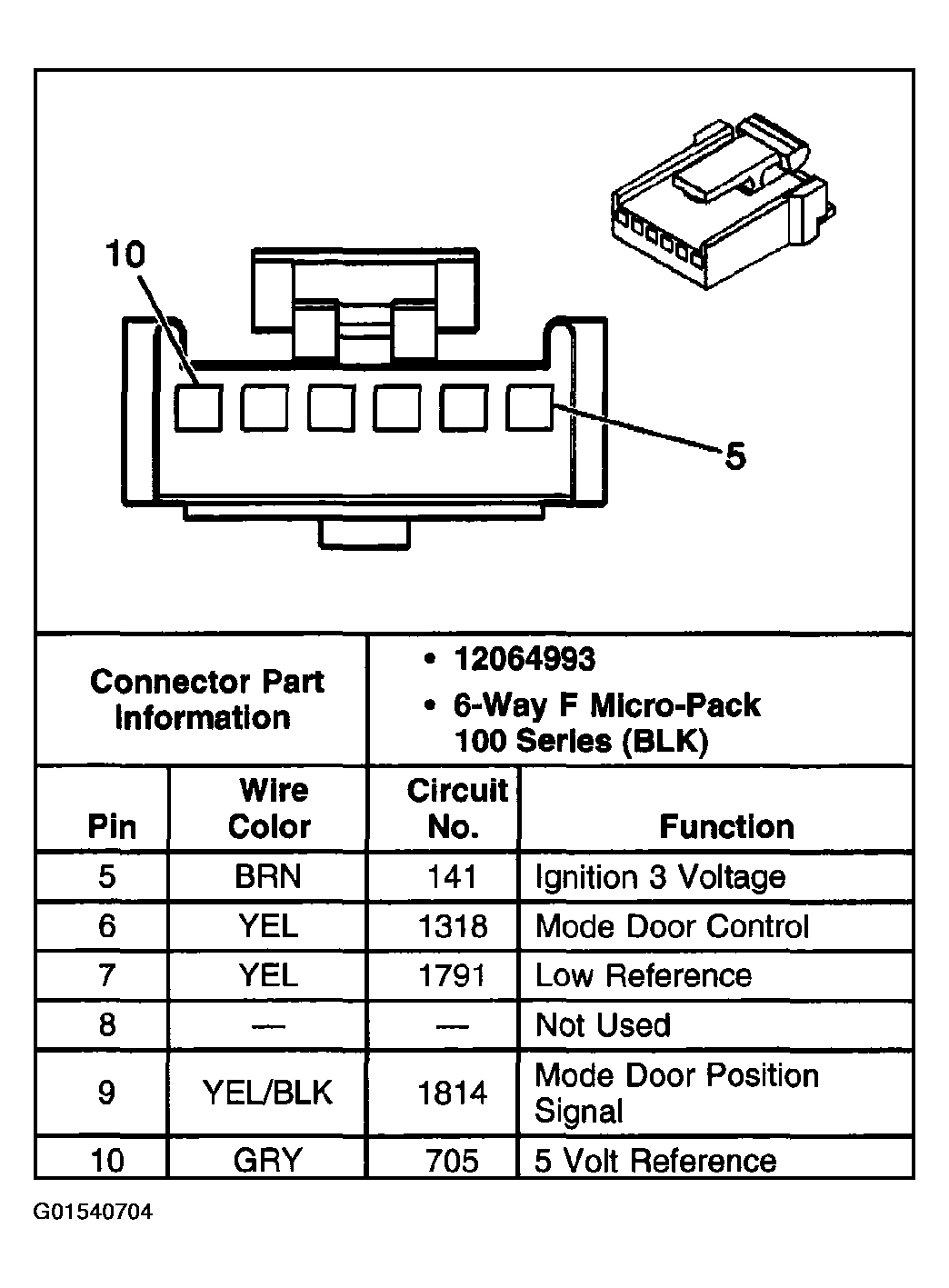

Fig 1: Mode Actuator

G01540704

Courtesy of GENERAL MOTORS CORP.
