Instrument Panel Integration Module (IPM) Connector End View C2 (1 Of 2)

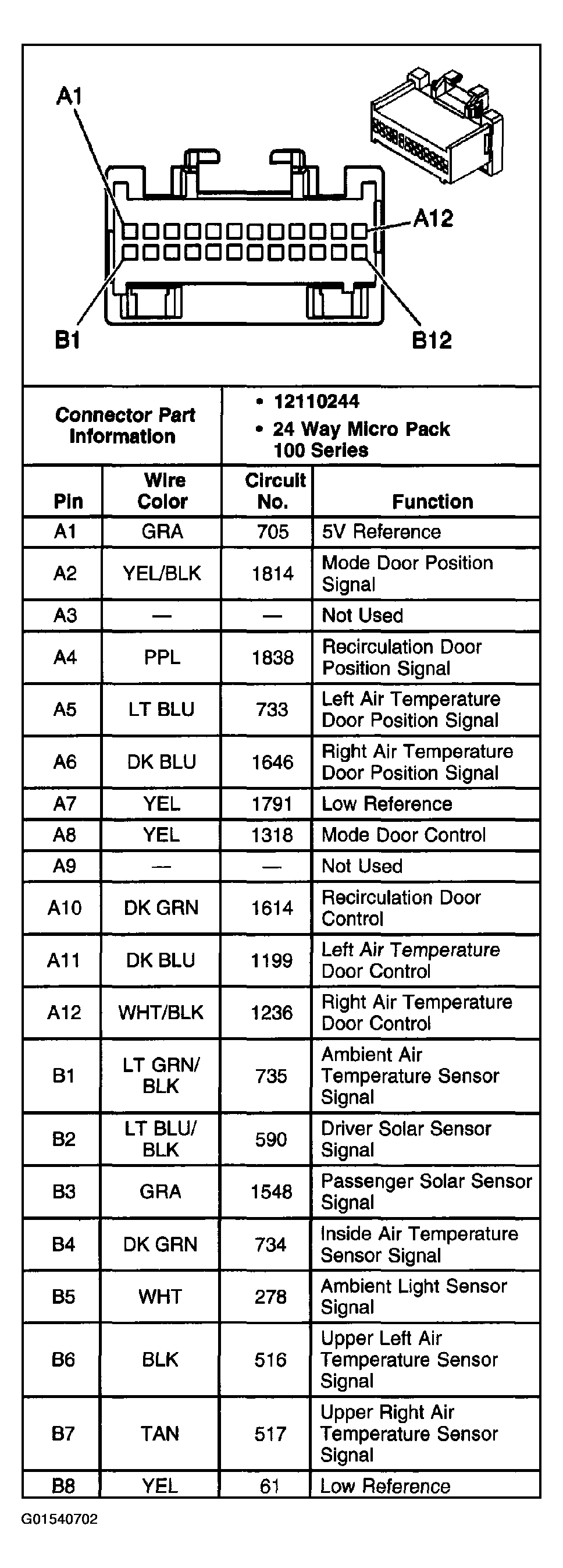

Fig 1: Instrument Panel Integration Module (IPM) C2 (1 Of 2)

G01540702

Courtesy of GENERAL MOTORS CORP.
