Digital Radio Receiver Connector End View

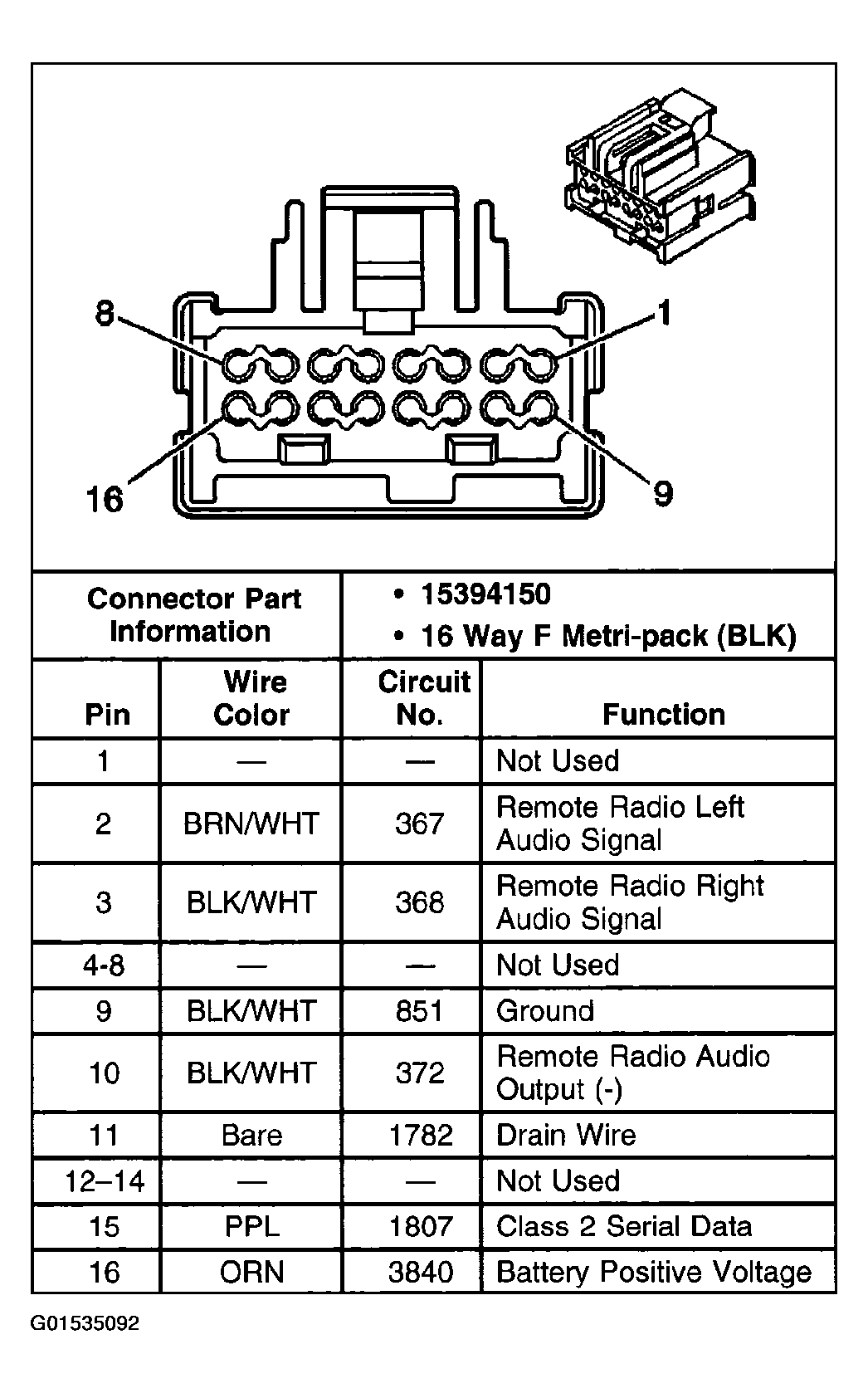

Fig 1: Digital Radio Receiver

G01535092

Courtesy of GENERAL MOTORS CORP.
