Blower Motor Control Processor Connector End View

Fig 1: Blower Motor Control Processor

G01540618

Courtesy of GENERAL MOTORS CORP.

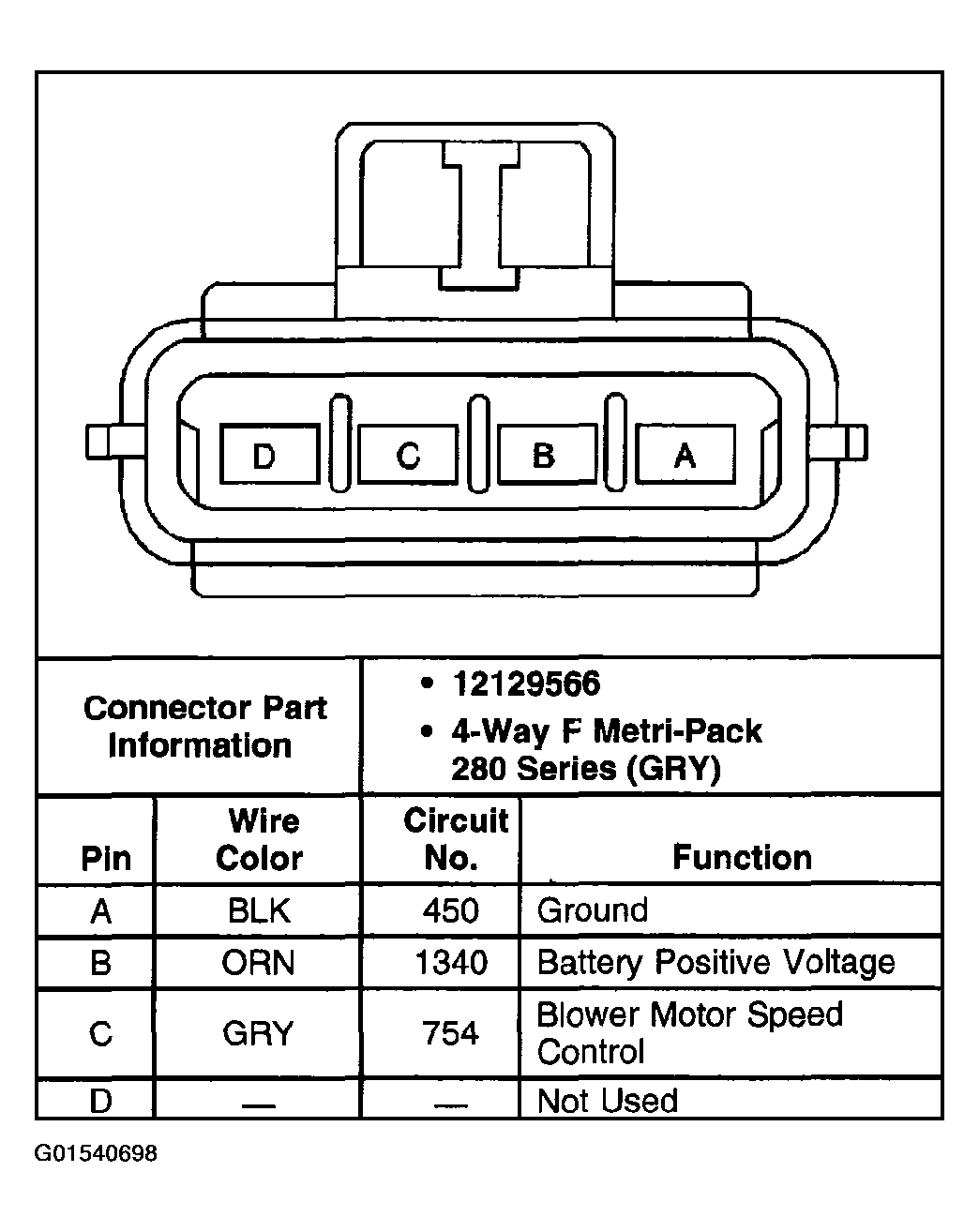

Fig 1: Blower Motor Control Processor

G01540698

Courtesy of GENERAL MOTORS CORP.
