Air Temperature Sensor Connector End View - Lower Left

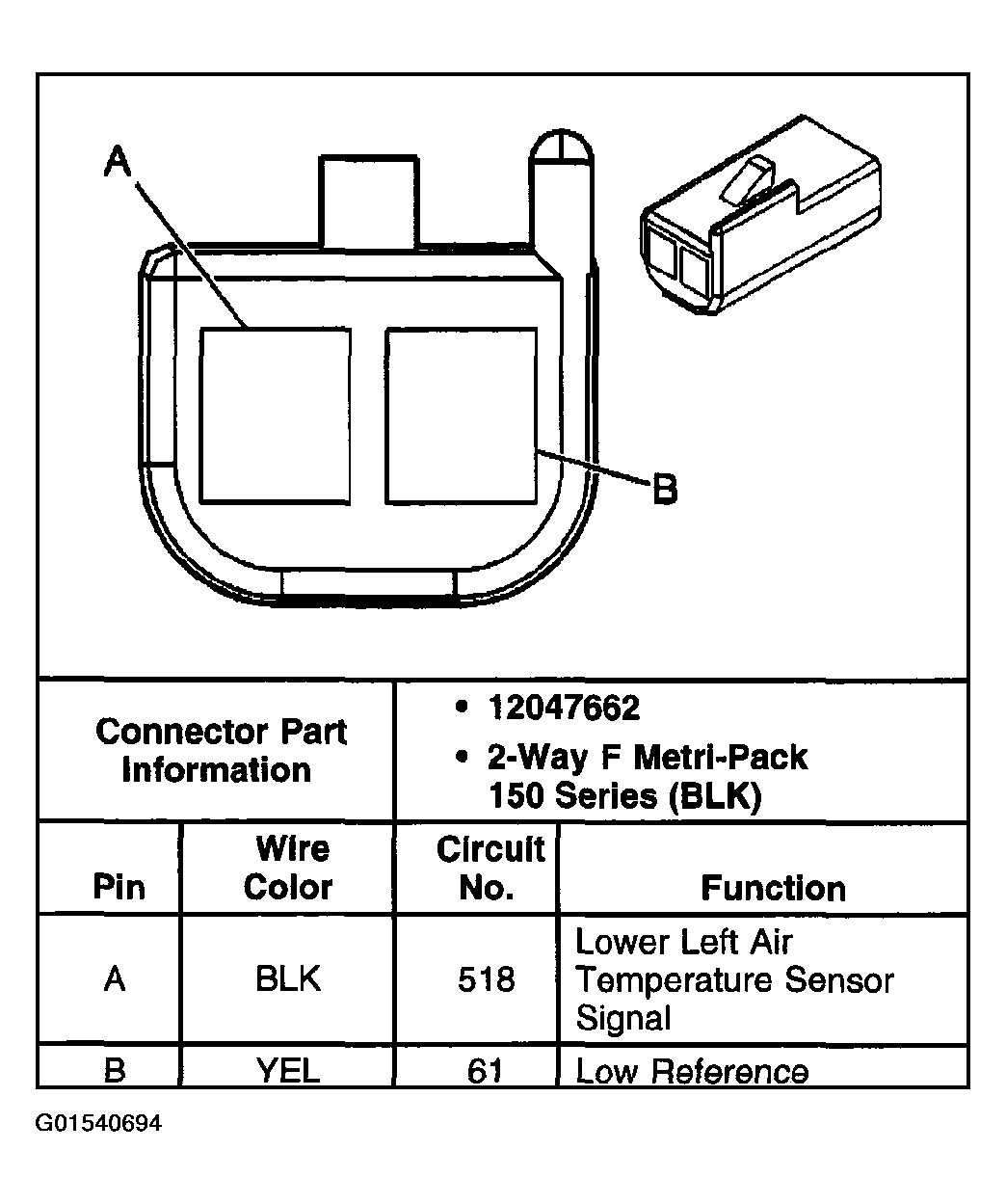

Fig 1: Air Temperature Sensor - Lower Left

G01540694

Courtesy of GENERAL MOTORS CORP.
