A/C Compressor Clutch Connector End View

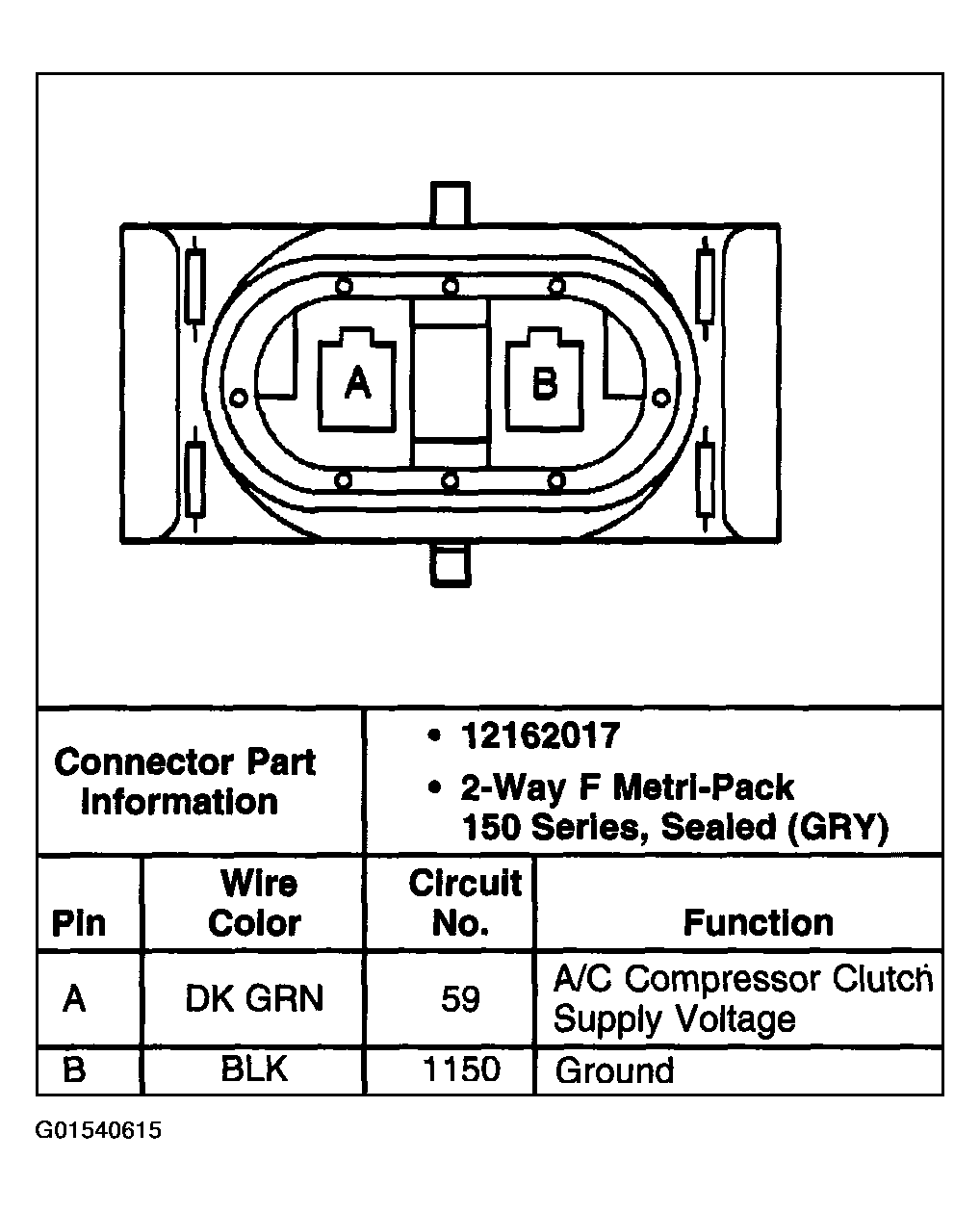

Fig 1: A/C Compressor Clutch

G01540615

Courtesy of GENERAL MOTORS CORP.

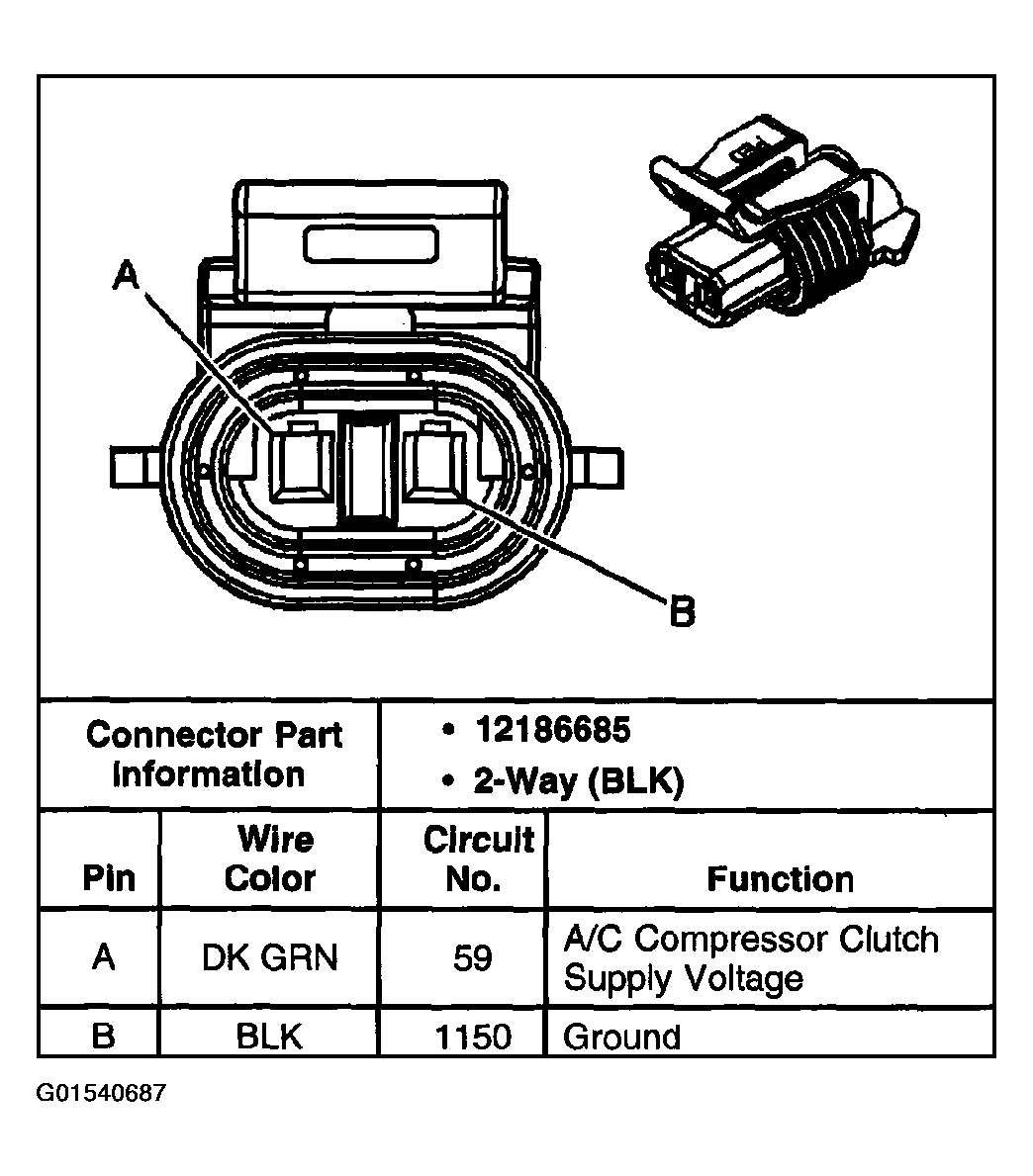

Fig 1: A/C Compressor Clutch

G01540687

Courtesy of GENERAL MOTORS CORP.
