Installation Procedure

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The bolt retaining the condenser to the radiator end tank is a special length and should be the ONLY bolt used upon reinstallation. The use of a longer bolt will damage the radiator end tank.
  1. Install the radiator to the vehicle. Place the bottom of the radiator in the lower pads.
  2. Install the condenser to the radiator.
    3. Fig 1: A/C Condenser Mounting View
    GM287612Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the A/C condenser mounting bolts.

    Tighten:  Tighten the bolts to 13 N.m (115 lb in).

    4. Fig 2: View of Plastic Caps Over Quick Connect Joints
    GM430130Courtesy of GENERAL MOTORS CORP.
  4. Push the upper and lower transaxle oil cooler pipes into the radiator quick connect fittings, until a "click" is heard.
  5. Tug gently on the cooler pipes to ensure proper retention.
  6. Slide the plastic caps (1) over the quick connect joints.
  7. Install the cooling fans. Refer to Cooling Fan Replacement - Electric .
    8. Fig 3: View of Transaxle Oil Cooler Pipe Bracket & Cooling Fans
    GM420678Courtesy of GENERAL MOTORS CORP.
  8. Install the transaxle oil cooler pipe bracket bolt to the lower tie bar.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

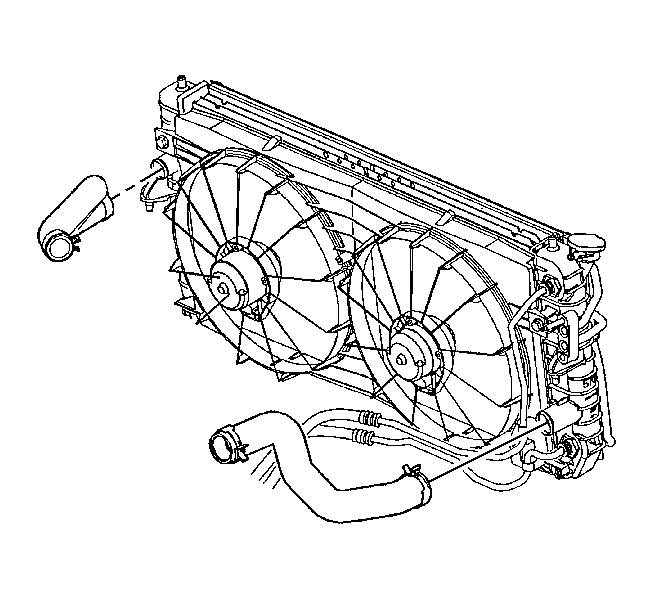

    9. Fig 4: View of Upper and Lower Radiator Hoses, Transaxle Oil Cooler Pip Bracket Bolt & Cooling Fans with J38185
    GM430129Courtesy of GENERAL MOTORS CORP.
  9. Install the upper and lower radiator hoses to the radiator using the J 38185  .
  10. Connect the coolant recovery hose to the radiator neck using the J 38185  .
  11. Install the upper tie bar. Refer to Tie Bar Replacement - Upper in Body Front End.
    12. Fig 5: View of Upper Radiator Seal & Upper Tie Bar
    GM420666Courtesy of GENERAL MOTORS CORP.
  12. Install the upper radiator seal.
  13. Fill the cooling system. Refer to Draining and Filling Cooling System .
  14. Inspect the transmission oil level. Refer to Transmission Fluid Checking Procedure in Transmission/Transaxle.
