Scan Tool Data List

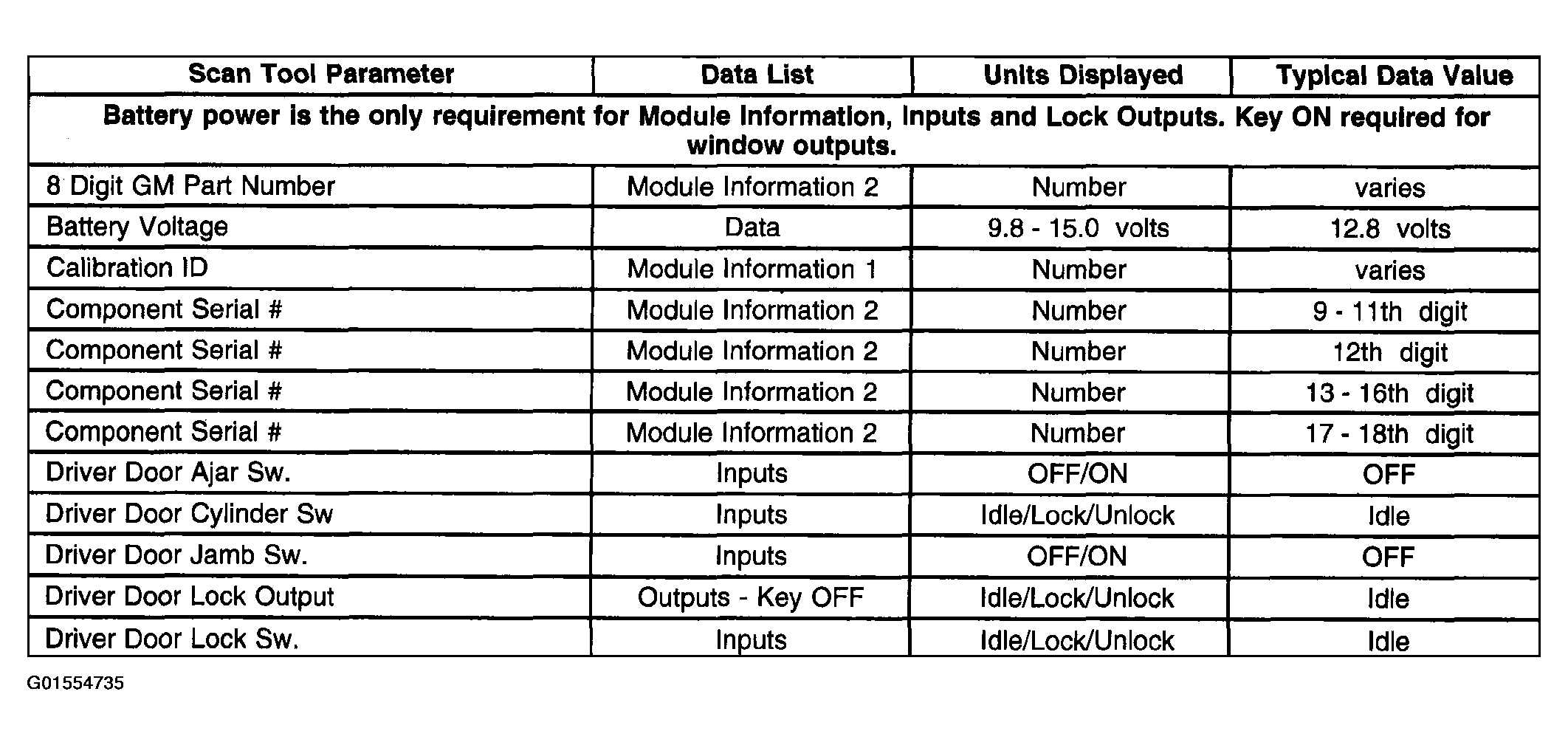

Fig 1: Scan Tool Data List - Driver Door Module (1 Of 2)
G01554735Courtesy of GENERAL MOTORS CORP.

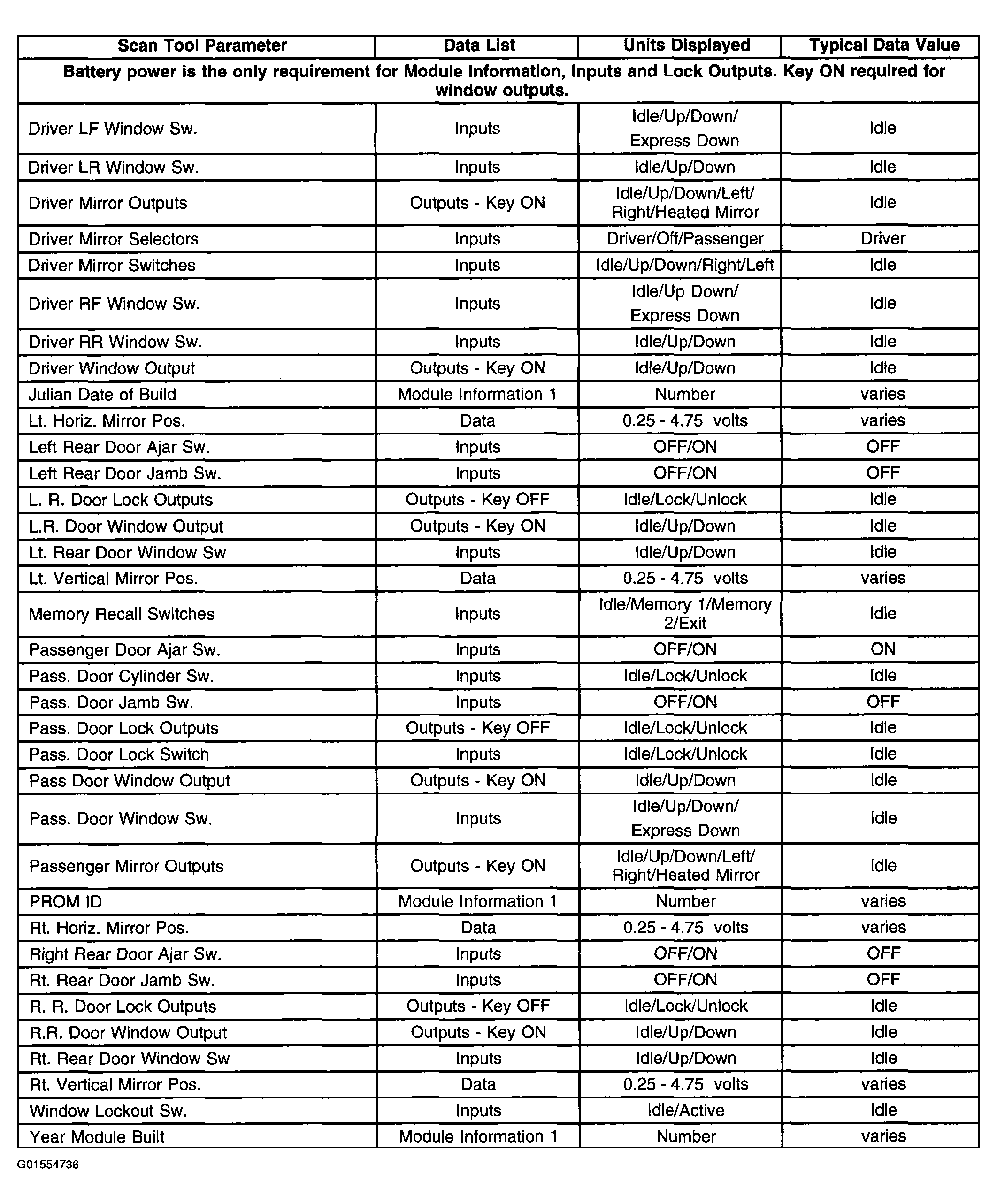

Fig 2: Scan Tool Data List - Driver Door Module (2 Of 2)
G01554736Courtesy of GENERAL MOTORS CORP.

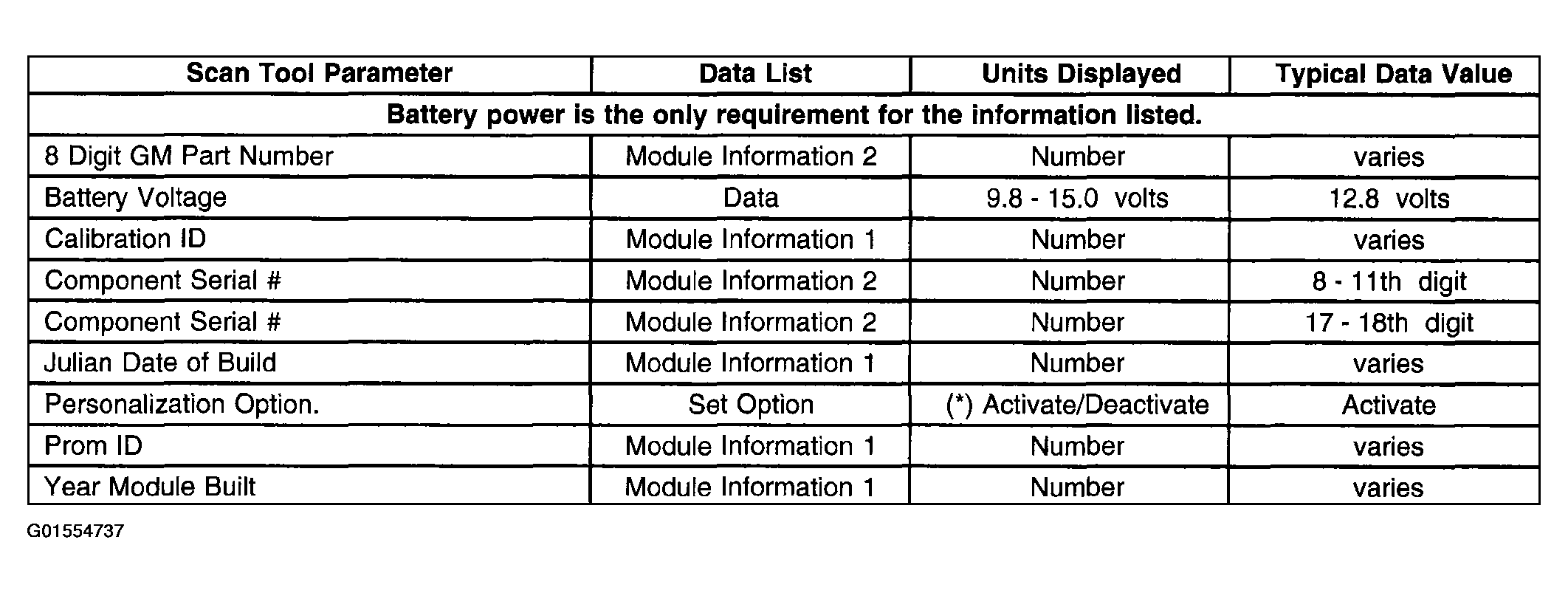

Fig 3: Scan Tool Data List - Dash Integration Module
G01554737Courtesy of GENERAL MOTORS CORP.
